Vybronics VCDM0834B004L
Model Number: VCDM1027B003L
(old p/n: CDM1027B003L)

10 mm x 2.7 mm | 3 V | Double Magnet Vibration Motor

The VCDM1026B003L is the largest double magnet motor we manufacture.
Standard coin vibration motors (single magnet / with brushes)  are not noted for their fast rise and fall times and hence are not the best choice for haptic feedback applications. They incorporate a single magnet situated under the motors rotating voice coils / counter weight assembly, at the base of the coin motor. Our engineers recently discovered that by adding a second magnet above the voice coil / counter weight assembly, effectively sandwiching it between both magnets, many of the vibration motors performance characteristics dramatically improved.  Most notable is that this “Double Magnet”  design greatly improved the rise / fall times  (35ms Max Rise Time / 50ms Max  Fall Time @ 50% power) as well as the G force.  Power consumption is comparable to that of the single magnet design.

Model # Tech Type Rise Time Fall Time G force Current (mA) Vibration Frequency Driver IC Required
VCDM1027B003L Double Magnet 35 50 1.60 52 250 NO
VC1020B111F BRUSH 90 50 1.10 61 150 NO
VG0832012 LRA 50 80 1.40 58 235 YES
VW0934AB007G BRUSHLESS 70 90 1.40 50 192 NO

As can be seen from the table above, the rise / fall times are better than that of an LRA and there is no need for an external driver IC.  They can be driven with DC voltage and do not require a driver IC.   Being a brush type motor, the over motor lifetime (100K cycles) is not as good as that of a coin LRA  (1000K cycles).
Pricing is slightly higher than that of a standard single magnet, brush type, coin vibration motor, but about 30% less than that of an LRA and even more so if you factor in the required driver IC for the LRA.   This motor is available with connector and custom lead lengths.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: DOUBLE-MAGNET
Diameter (mm): 10.0
Thickness (mm): 2.7
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.5~3.5
Rated Current MAX (mA): 75
Typical Current (mA): 52
Rise Time (ms) MAX *: 35
Fall Time (ms) MAX *: 50
Rated Speed (rpm): 15000
Vibration Force (G): 1.60
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: 45*28*19CM
Weight - Master Box: 6.8KG
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: 12 OCT 21 to
31 DEC 22
Samples
Available from
DigiKey Logo
Contact Us for
quotes on 2K+ pcs
Add To Favorite List

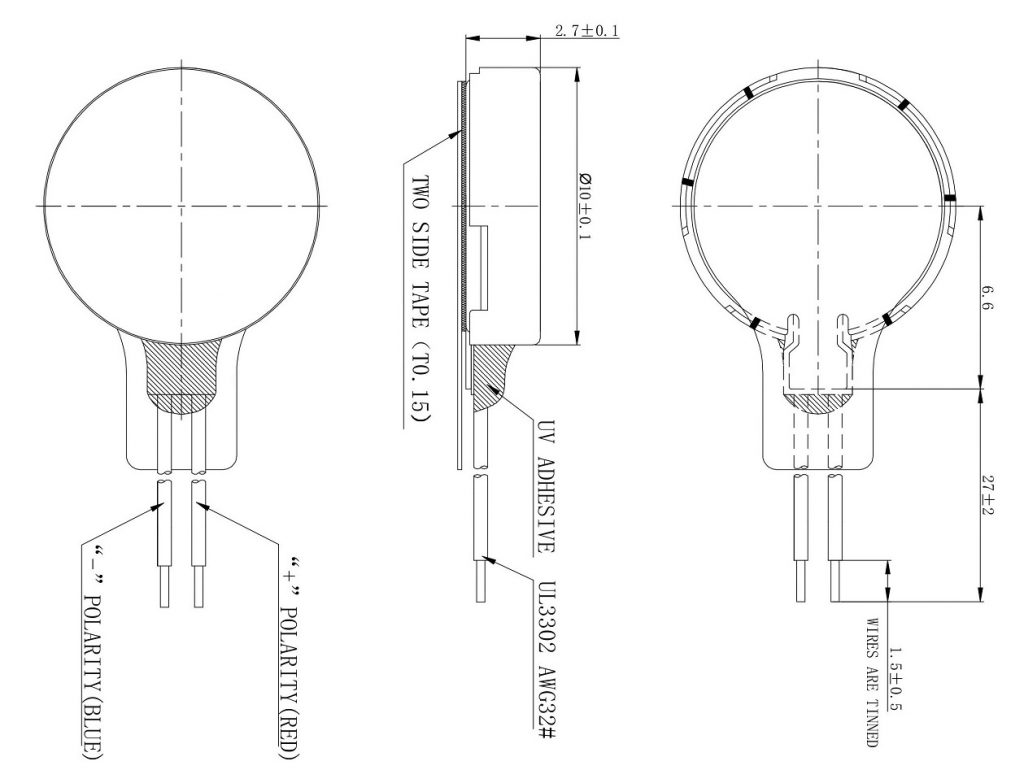

VCDM1027B003L (old p/n CDM1027B003L) Double Magnet Coin Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
