Coin vibrations motors are manufactured using four different technologies, each having their own distinct advantages which we discuss briefly here, and in more detail in their respective sections. These 4 technologies, all listed in the “Tech Type” column of the parametric table below, are coin motors “with” brushes, “without brushes” also known as BLDC Brushless, LRA (linear resonant actuator) and Double-Magnet Brush type.    Coin vibration motors may be used in applications such as smart watches, fitness trackers and other wearable devices, but careful consideration must be made to chose the right technology type and other technical specifications such as G force, vibration frequency & rise / fall time. The motors listed below as “brush” type motors are typically used for low cost consumer grade products where the vibration feature is used for simple user notification alert with a light to moderate duty cycle. The vast majority of products use this type of vibration motor. If however your application requires an exceedingly long motor life time and high MTBF consider using our BLDC Brushless Vibration Motors. These are considerably more expensive than the brush type listed here.  LRA’s are used when fast rise and fall times are required for generation of crisp haptic feedback. Double magnet vibration motors are characterized by high G force and excellent rise and fall times comparable to that of LRA’s but they do not need a driver IC.   Referring to the figures on the BOTTOM of the page, we can supply our vibration motor with a variety of connectors, spring contacts, FPC or with bare contact pads. We can also design a custom FPC for your application. If your application requires it, foam pads of varying thicknesses and/or double stick tape tape may also be added. 3D CAD files are available upon request.

CLICK HERE to see photos of how coin motors have been mounted in products.

Scroll To See All Motors


Part Number

Download Icon
Old P/N Image

coin motor logo
Tech.
Type
Config. Type Motor Size (mm) Voltage Current (mA) Response Time
(ms)
- 50% of power
- Max values
Res.
Freq
(hz)
Rated speed (rpm) Vibe Force (G)
Dia Thickness Rated Operating Rated
MAX
Typical*
Avg.
Rise Time Fall Time

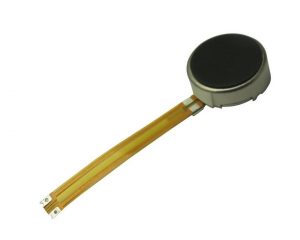

VC0625B001L C0625B001L VC0625B001L coin vibration motor preview image BRUSH 1 6.0 2.5 2.5 Vdc 2.0~3.5 Vdc 100 42 90 50 N/A 10000 0.40
VC0720B001F C0720B001F VC0720B001F coin vibration motor preview image BRUSH 2 7.0 2.0 3.0 Vdc 2.7~3.3 Vdc 85 53 90 50 N/A 10000 1.10
VC0720B003D C0720B003D VC0720B003D coin vibration motor preview image BRUSH 4 7.0 2.0 3.0 Vdc 2.7~3.3 Vdc 80 49 90 50 N/A 10000 1.10
VC0720B015F C0720B015F VC0720B015F coin vibration motor preview image BRUSH 1 7.0 2.0 3.0 Vdc 2.7~3.3 Vdc 85 53 90 50 N/A 8000 0.20
VC0720B088L
blinking new image

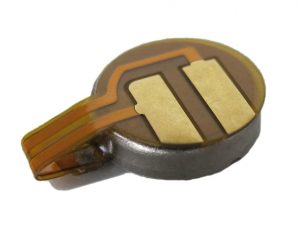

C0720B088L VC0720B088L coin vibration motor preview image BRUSH 3 7.0 2.1 3.0 Vdc 2.5~3.5 Vdc 55 48 90 50 N/A 10000 0.15
VC0820B006F C0820B006F VC0820B006F coin vibration motor preview image BRUSH 1 8.0 2.1 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 10000 0.45
VC0820B029L
blinking new image
VC0820B029L coin vibration motor preview image BRUSH 3 8.0 2.1 3.0 Vdc 2.5~3.5 Vdc 85 63 90 50 N/A 10000 0.45
VC0820K001L C0820K001L VC0820K001L coin vibration motor preview image BRUSH 7 8.0 2.1 3.0 Vdc 2.3~3.5 Vdc 85 62 90 50 N/A 10000 0.45
VC0824K001L C0824K001L VC0824K001L coin vibration motor preview image BRUSH 7 8.05 2.4 3.0 Vdc 2.5~3.5 Vdc 85 61 90 50 N/A 10000 0.60
VC0824K002L C0824K002L VC0824K002L coin vibration motor preview image BRUSH 7 8.0 2.4 3.0 Vdc 2.5~3.5 Vdc 85 63 90 50 N/A 10000 0.70
VC0825B002F C0825B002F VC0825B002F coin vibration motor preview image BRUSH 1 8.0 2.5 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 0.70
VC0825B029L VC0825B029L coin vibration motor preview image BRUSH 3 8.0 2.5 3.0 Vdc 2.7~3.3 Vdc 85 63 90 50 N/A 10000 0.70
VC0827B005F C0827B005F VC0827B005F coin vibration motor preview image BRUSH 1 8.0 2.7 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 0.70
VC0827B019F C0827B019F VC0827B019F coin vibration motor preview image BRUSH 2 8.0 2.7 3.0 Vdc 2.7~3.3 Vdc 100 69 90 50 N/A 12000 0.75
VC0827B020F C0827B020F VC0827B020F coin vibration motor preview image BRUSH 2 8.0 2.7 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 0.75
VC0827B029L VC0827B029L coin vibration motor preview image BRUSH 2 8.0 2.7 3.0 Vdc 2.5~3.5 Vdc 85 63 90 50 N/A 13500 0.70
VC0827B307L VC0827B307L coin vibration motor image coming soon BRUSH 3 8.0 2.7 3.0 Vdc 2.3~3.5 Vdc 85 61 90 50 N/A 10000 1.10
VC0830B001L C0830B001L VC0830B001L coin vibration motor preview image BRUSH 1 8.0 3.0 3.0 Vdc 2.5~3.5 Vdc 85 63 90 50 N/A 12000 1.00
VC0830B009L C0830B009L VC0830B009L coin vibration motor preview image BRUSH 3 8.0 3.0 3.0 Vdc 2.5~3.5 Vdc 85 50 90 50 N/A 10000 0.80
VC0830B029L VC0830B029L coin vibration motor preview image BRUSH 3 8.0 3.0 3.0 Vdc 2.7~3.3 Vdc 90 63 90 50 N/A 13000 1.40
VC0834B011F C0834B011F VC0834B011F coin vibration motor preview image BRUSH 1 8.0 3.4 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 1.00
VC1018B001L
blinking new image
C1018B001L VC1018B001L coin vibration motor preview image BRUSH 1 10.0 1.8 3.0 Vdc 2.5~3.5 Vdc 85 60 90 50 N/A 10000 0.60
VC1020B001D C1020B001D VC1020B001D coin vibration motor preview image BRUSH 4 10.0 2.05 3.0 Vdc 2.7~3.3 Vdc 90 61 90 50 N/A 9000 1.10
VC1020B111F C1020B111F VC1020B111F coin vibration motor preview image BRUSH 1 10.0 2.1 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 1.00
VC1020B569L C1020B569L VC1020B569L coin vibration motor preview image BRUSH 3 10.0 2.1 3.0 Vdc 2.5~3.5 Vdc 85 62 90 50 N/A 13500 1.00
VC1026B002F C1026B002F VC1026B002F coin vibration motor preview image BRUSH 1 10.0 2.7 3.0 Vdc 2.7~3.3 Vdc 85 55 90 50 N/A 9000 0.80
VC1027B001D C1027B001D VC1027B001D coin vibration motor preview image BRUSH 4 10.0 2.7 3.0 Vdc 2.7~3.3 Vdc 90 50 90 50 N/A 9000 1.10
VC1027B200N C1027B200N VC1027B200N coin vibration motor preview image BRUSH 6 10.0 2.7 3.0 Vdc 2.4~3.6 Vdc 80 55 90 50 N/A 9000 1.10
VC1030A002F
blinking new image
VC1030A002F coin vibration motor preview image BRUSH 1 10.0 3.0 1.3 Vdc 1.0~1.7 Vdc 100 69 90 50 N/A 9000 0.55
VC1030B028F C1030B028F VC1030B028F coin vibration motor preview image BRUSH 1 10.0 3.0 3.0 Vdc 2.7~3.3 Vdc 85 64 90 50 N/A 13500 1.30
VC1030B295L C1030B295L VC1030B295L coin vibration motor preview image BRUSH 1 10.0 3.0 3.0 Vdc 2.5~3.5 Vdc 85 61 90 50 N/A 10000 1.00
VC1030B823L C1030B823L VC1030B823L coin vibration motor preview image BRUSH 3 10.0 3.0 3.0 Vdc 2.5~3.5 Vdc 85 62 90 50 N/A 13500 0.90
VC1034B018F C1034B018F VC1034B018F coin vibration motor preview image BRUSH 1 10.0 3.4 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 1.50
VC1034B400D C1034B400D VC1034B400D coin vibration motor preview image BRUSH 3 10.0 3.4 3.0 Vdc 2.7~3.3 Vdc 80 48 90 50 N/A 12000 1.6
VC1034H025L C1034H025L VC1034H025L coin vibration motor preview image BRUSH 1 10.0 3.4 1.5 Vdc 1.2~1.8 Vdc 40 36 90 50 N/A 9000 0.50
VC1234B016F C1234B016F VC1234B016F coin vibration motor preview image BRUSH 1 12.0 3.4 3.0 Vdc 2.7~3.3 Vdc 80 48 90 50 N/A 9000 2.00
VCDM0834B004L CDM0834B004L VCDM0834B004L coin vibration motor preview image DOUBLE-MAGNET 1 8.0 3.4 3.0 Vdc 2.5~3.5 Vdc 75 48 35 50 N/A 10000 1.40
VCDM1027B003L
blinking new image
CDM1027B003L VCDM1027B003L coin vibration motor preview image DOUBLE-MAGNET 1 10.0 2.7 3.0 Vdc 2.5~3.5 Vdc 75 52 35 50 N/A 15000 1.60
VCLP0820B004L CLP0820B004L VCLP0820B004L coin vibration motor preview image BRUSH 1 8.0 2.1 3.0 Vdc 2.7~4.0 Vdc  35 30 90 50 N/A 9000 0.35
VCLP0820K001L
blinking new image
VCLP0820K001L coin vibration motor preview image BRUSH 7 8.0 2.1 3.0 Vdc 2.7~4.0 Vdc  35 31 90 50 N/A 9000 0.35
VCLP1020B002L
blinking new image
CLP1020B002L VCLP1020B002L coin vibration motor preview image BRUSH 1 10.0 2.1 3.0 Vdc 2.5~3.5 Vdc  30 27 90 50 N/A 8000 0.75
VG0640001D
blinking new image
G0640001D VG0640001D coin vibration motor preview image LRA 3 6.0 4.05 1.8 Vac 0.5~1.8 Vac 80 58 15 70 210 - 0.90
VG0825001D G0825001D VG0825001D coin vibration motor preview image LRA 1 8.0 2.5 1.2 Vac 0.1~1.9 Vac 60 48 50 50 240 - 0.75
VG0825002D
blinking new image
VG0825002D coin vibration motor preview image LRA 7 8.0 2.65 1.2 Vac 0.1~1.25 Vac 60 48 50 50 240 - 0.75
VG0825003D
blinking new image
VG0825003D coin vibration motor preview image LRA 2 8.0 2.55 1.2 Vac 0.1~1.25 Vac 60 48 50 50 240 - 0.73
VG0832008 G0832008 VG0832008 coin vibration motor preview image LRA 4 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80
VG0832009L
blinking new image
VG0832009L coin vibration motor preview image LRA 2 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80
VG0832012 G0832012 VG0832012 coin vibration motor preview image LRA 1 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80
VG0832013D G0832013D VG0832013D coin vibration motor preview image LRA 1 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80
VG0832014L
blinking new image
G0832014L VG0832014L coin vibration motor preview image LRA 2 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80
VG0832022D G0832022D VG0832022D coin vibration motor preview image LRA 1 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80
VG0840001D G0840001D VG0840001D coin vibration motor preview image LRA 3 8.0 4.05 2.0 Vac 0.1~2.0 Vac 90 68 12 55 170 - 1.80
VG1040003D G1040003D VG1040003D coin vibration motor preview image LRA 3 10.0 4.0 2.5 Vac 0.1~2.5 Vac 170 145 10 50 170 - 2.00
VG2080001D VG2080001D coin vibration motor image coming soon LRA 4 20.0 8.0 1.8 Vac 1.0~2.0 Vac 200 170 20 60 130 - 1.60
VW0525AB001D W0525AB001D VW0525AB001D coin vibration motor preview image BLDC 1 5.0 2.5 3.0 Vdc 2.7~3.3 Vdc 80 77 70 90 N/A 14000 0.25
VW0625AB001G W0625AB001G VW0625AB001G coin vibration motor preview image BLDC 1 6.0 2.5 3.0 Vdc 2.7~3.3 Vdc 90 67 70 90 N/A 15000 0.55
VW0625SS001D W0625SS001D VW0625SS001D coin vibration motor preview image BLDC 5 6.0 2.5 3.0 Vdc 2.7~3.3 Vdc 90 67 70 90 N/A 15000 0.55
VW0625SS002D
blinking new image
VW0625SS002D coin vibration motor preview image BLDC 5 6.0 2.5 3.0 Vdc 2.7~3.7 Vdc 80 67 70 90 N/A 15000 0.55
VW0825AB001G W0825AB001G VW0825AB001G coin vibration motor preview image BLDC 1 8.0 2.5 3.0 Vdc 2.5~3.6 Vdc 90 80 70 90 N/A 15000 1.00
VW0825AB002G
blinking new image
VW0825AB002G coin vibration motor preview image BLDC 3 8.0 2.5 3.0 Vdc 2.7~3.3 Vdc 80 67 70 90 N/A 13500 1.00
VW0934AB001G W0934AB001G VW0934AB001G coin vibration motor preview image BLDC 1 9.0 3.4 3.0 Vdc 2.7~3.3 Vdc 80 50 70 90 N/A 11500 1.40
VW0934AB007G W0934AB007G VW0934AB007G coin vibration motor preview image BLDC 3 9.0 3.4 3.0 Vdc 2.7~3.3 Vdc 80 56 70 90 N/A 11500 1.40

The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.

 Config 1  WIRE  LEADS      Config 1.1 WIRE  LEAD  w.  CONNECTOR

Coin Vibration Motors Config - WIRE LEADS

Coin Vibration Motors Config - WIRE LEAD w. CONNECTOR

We can supply this motor with a variety of
different connectors



 Config 2  Flexible Print Circuit    Config 3  Contact Pads for Springs / Pogo Pins

Coin Vibration Motors Config - Flexible Print Circuit

We can supply custom FPC’s for any
coin vibration motor.

Coin Vibration Motors Config - COMPRESSION SPRING MOUNT

 Config 4  BARE PCB    Config 5  Type 1 Helical Spring Contacts

Coin Vibration Motors Config - BARE PCB

Coin Vibration Motors Config - Type 1 Helical Spring Contacts

 Config 6  COMPRESSION SPRING MOUNT    Config 7  Type 2 Helical Spring Contacts

Coin Vibration Motors Config - COMPRESSION SPRING MOUNT

Coin Vibration Motors Config - Type 2 Helical Spring Contacts
