Vybronics VG2230001H
Model Number: VG2230001H

22 mm x 30 mm | 2 Vrms | 70hz | VCM Z-Axis

The VG2230001H is a High  G  force Solenoid Actuator  vibration motor designed for Gaming Controllers and VR  Applications.  The Sony PlayStation PS5 DualSense Controller uses a similar solenoid actuator vibration device made by Foster Electric.   Engineers will find this tear down video , starting at he 22 min. mark, interesting. The device may be driven a few different ways.  It may be driven with an audio signal using an audio amplifier that can source enough current.  We recommend the PAM8403  IC or you can experiment by purchasing a "PA8403 Module" from many sources.  Alternately, a  PWM signal can be generated from a MCU unit, and the signal amplified by a Power Amplifier IC.  And last, it may be driven directly with a Haptic Driver IC that can be programmed to generate a sine wave of various frequencies and amplitudes.  Also available is this Development Kit originally designed for use with Foster Electric device, but may be used with this device.

CLICK HERE  for suggestions about how to Mount this voice coil vibration motor

CLICK HERE to see photos of how coin motors have been mounted in products.

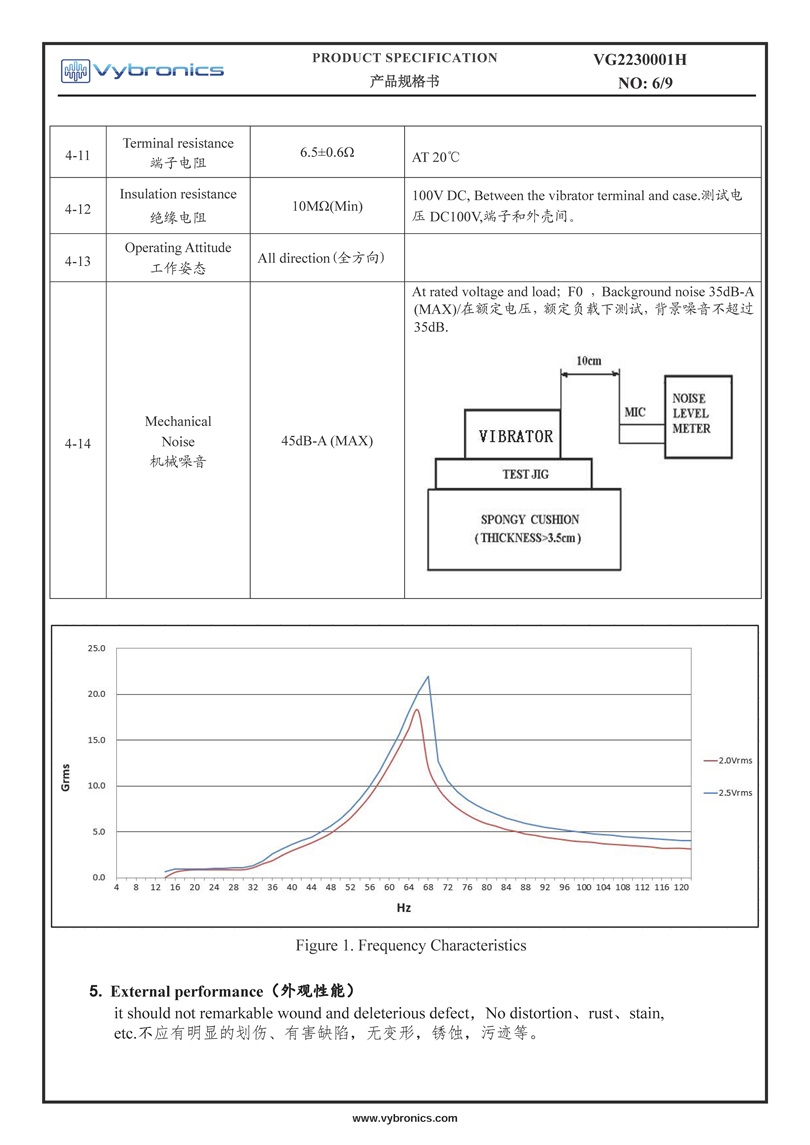

Summary Of Specifications
Technology Type: LRA
Diameter (mm): 22.0
Thickness (mm): 30.0
Rated Voltage (Vac RMS): 2.0
Operating Voltage (Vac RMS): 0.1~3.0
Rated Current MAX (mA): 100
Typical Current (mA): 95
Rise Time (ms) MAX *: 60
Fall Time (ms) MAX *: 100

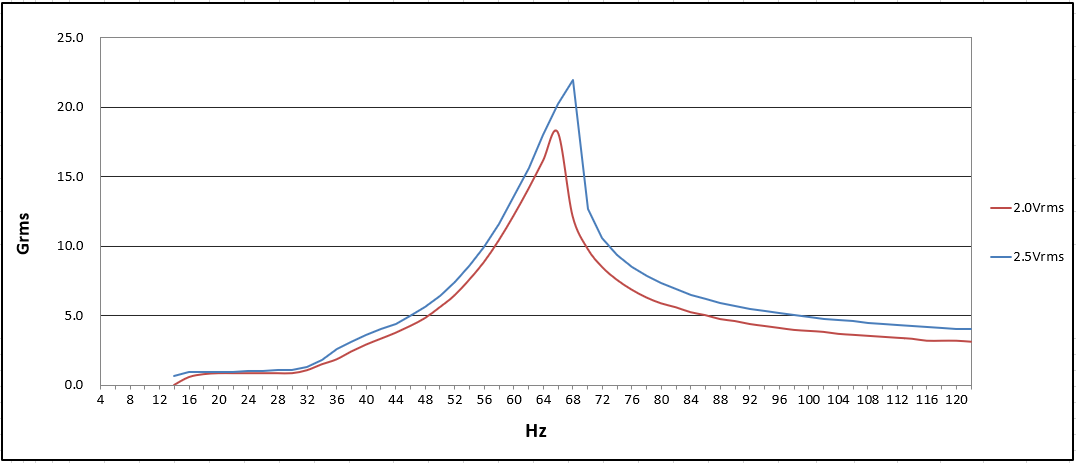

Resonant Frequency: 70
Vibration Force (Grms): >3.50
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Foam Tray
Qty per reel / tray: 50
Quantity - Master box: 300
Size - Master Box: 47.5*28.5*25CM
Weight - Master Box: 12KG
USA HTS TARIFF: 8501.10.4020
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025
Available from
DigiKey Logo
QTY In Stock: 313 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List

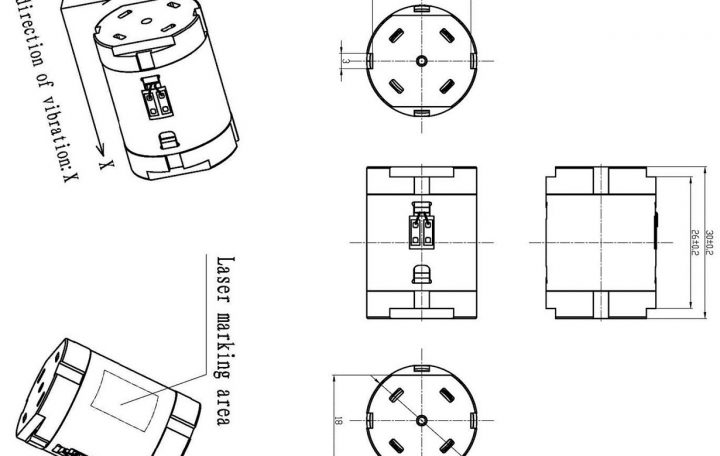

Vybronics VG2230001H, Coin Linear Resonant Actuator LRA Drawing
