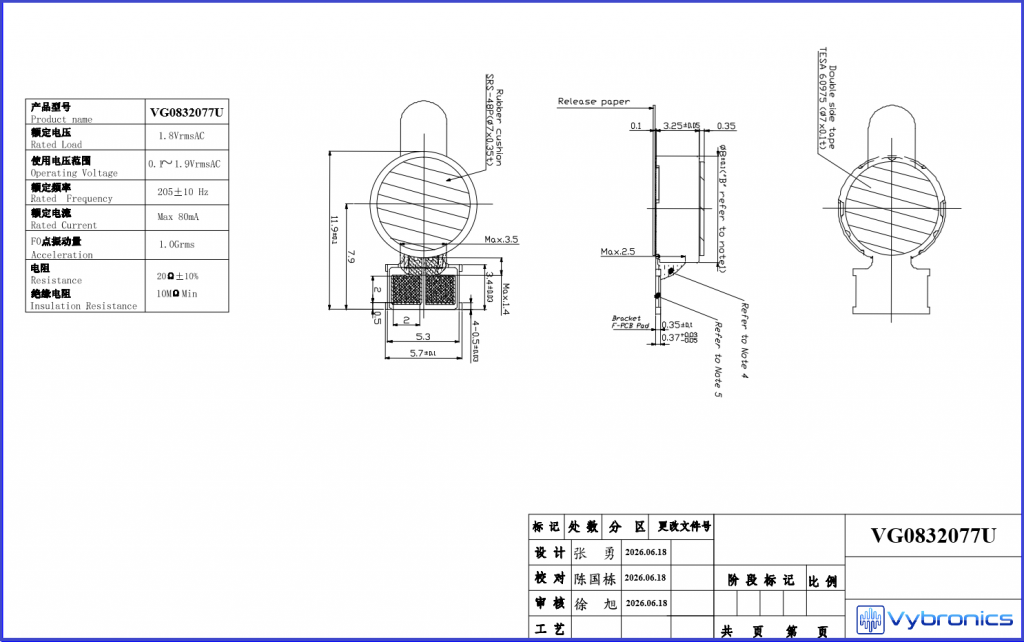

The VG0832077U is designed to be mounted in a molded recessed pocket in the products housing. This LRA has a rise/ fall time of 50 / 80 ms. If you are seeking a high performance LRA for HD haptic (20/30 ms) consider our VG0832043J. PCB mounted contact springs or pogo pings mate with coin LRA's contacts pads. PCBA contact springs are made by TE as well as other companies. Information on mounting and PORON compression may be found here.
CLICK HERE to download the configuration file for RENESAS DA728x-EVAL-KIT.
CLICK HERE to see photos of how coin motors have been mounted in products.

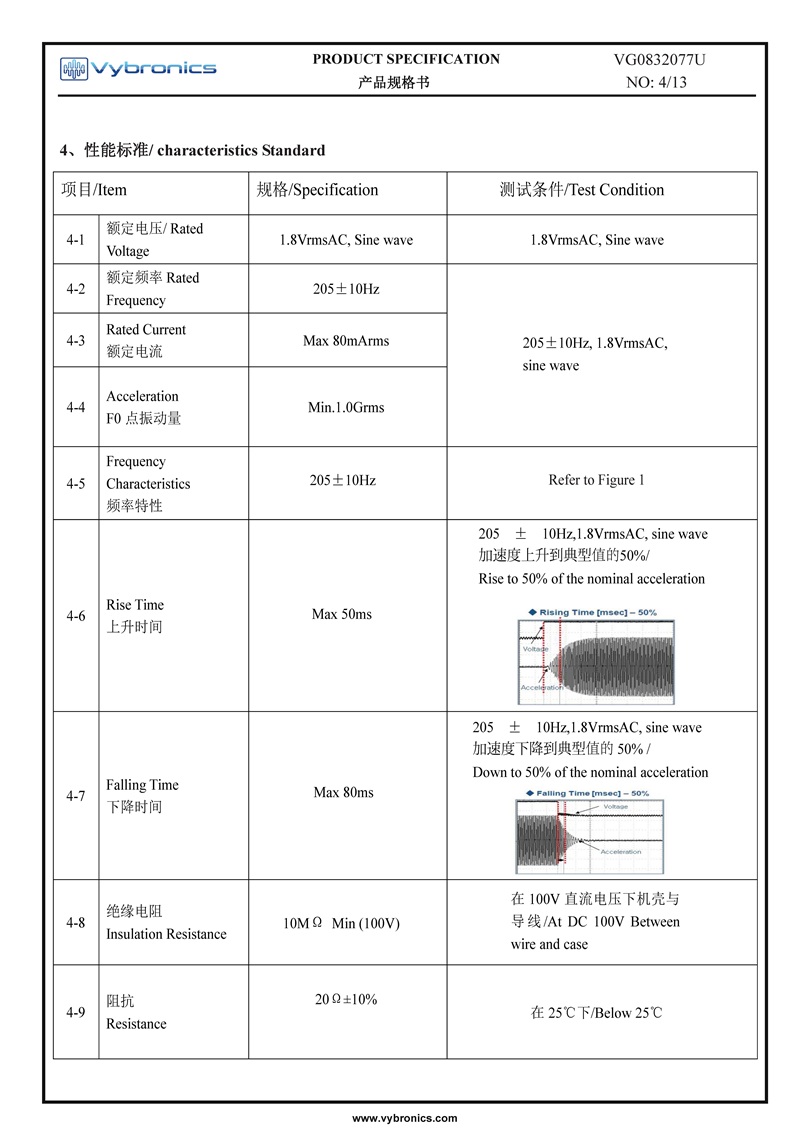

| Summary Of Specifications | |
| Technology Type: | LRA |
| Diameter (mm): | 8.0 |
| Thickness (mm): | 3.25 |
| Rated Voltage (Vac RMS): | 1.8 |
| Operating Voltage (Vac RMS): | 0.1~1.9 |
| Rated Current MAX (mA): | 80 |
| Typical Current (mA): | 70 |
| Rise Time (ms) MAX *: | 50 |
| Fall Time (ms) MAX *: | 80 |

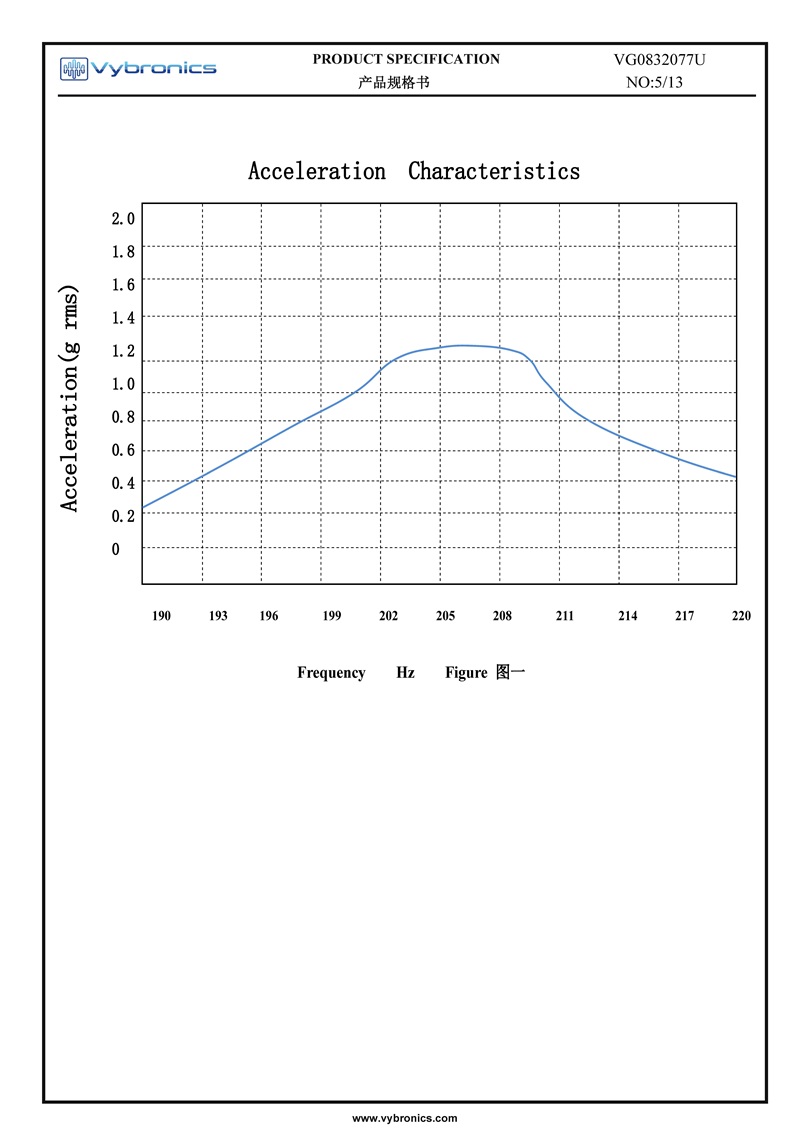

| Resonant Frequency: | 205 |
| Vibration Force (Grms): | 1.00 |
| * at 50% of Maximum G force | |
| Packaging Spec / Tariff Info | |
| Part Packaging: | Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 5000 |
| Size - Master Box: | 34 x 24 x 24 cm |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4020 |
| 25% Exclusion Code: | 9903.88.69 |
| 25% Ex. Code Valid: | from June 14, 2024 thru Nov 10, 2026 |
| Country of Origin: | CHINA |
|
If you need samples, please Contact Us. |
|||
|
This part is not authorized for Life Supporting Devices
