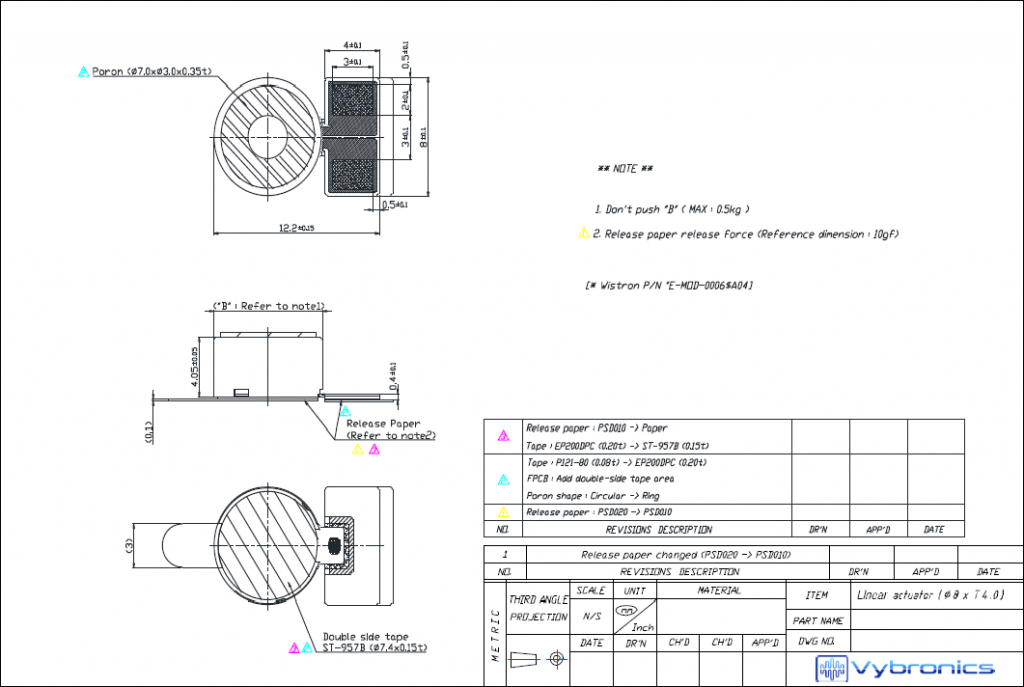

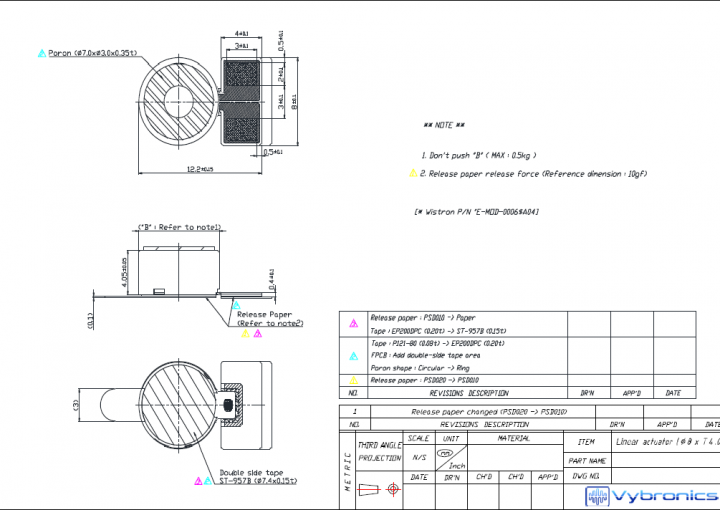

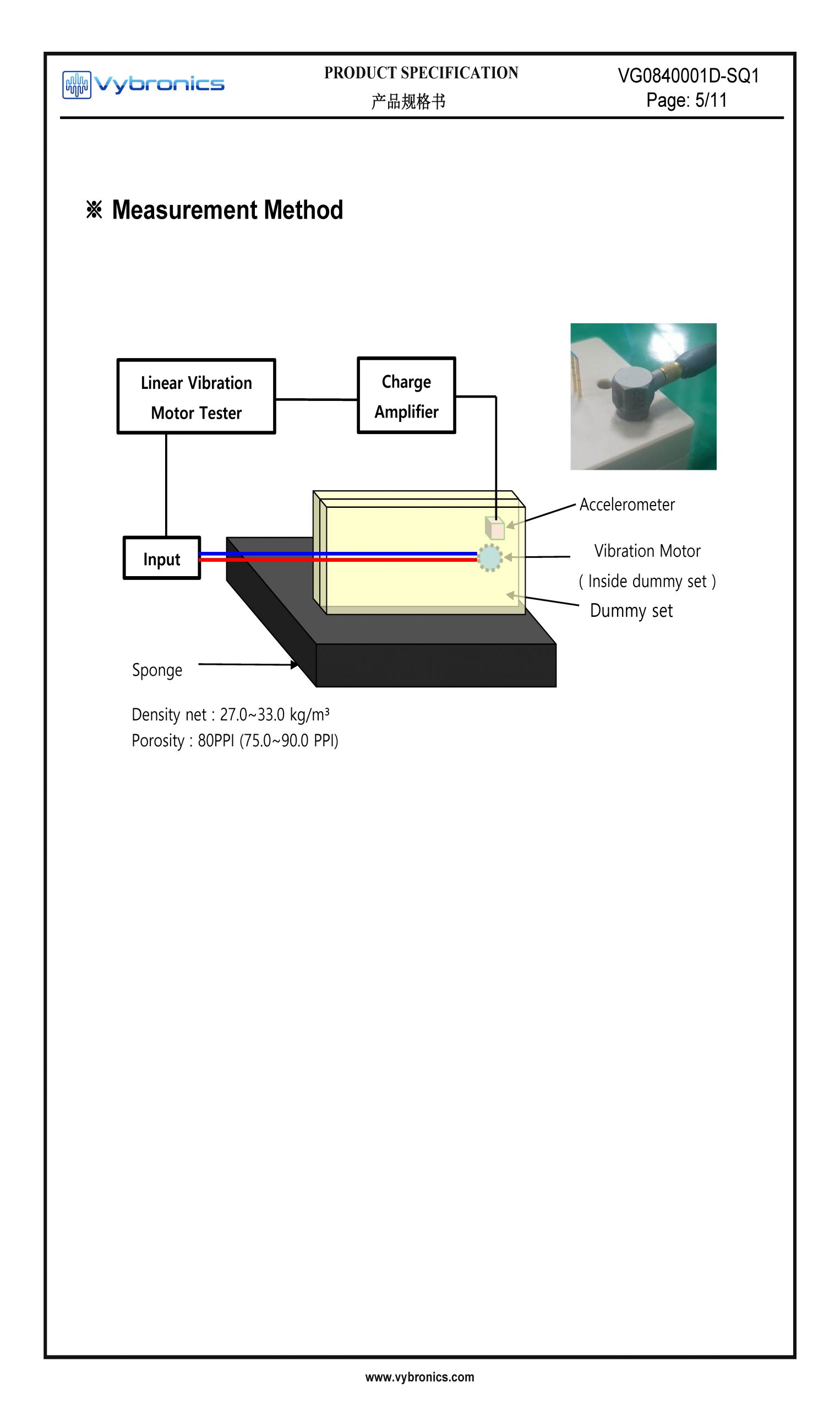

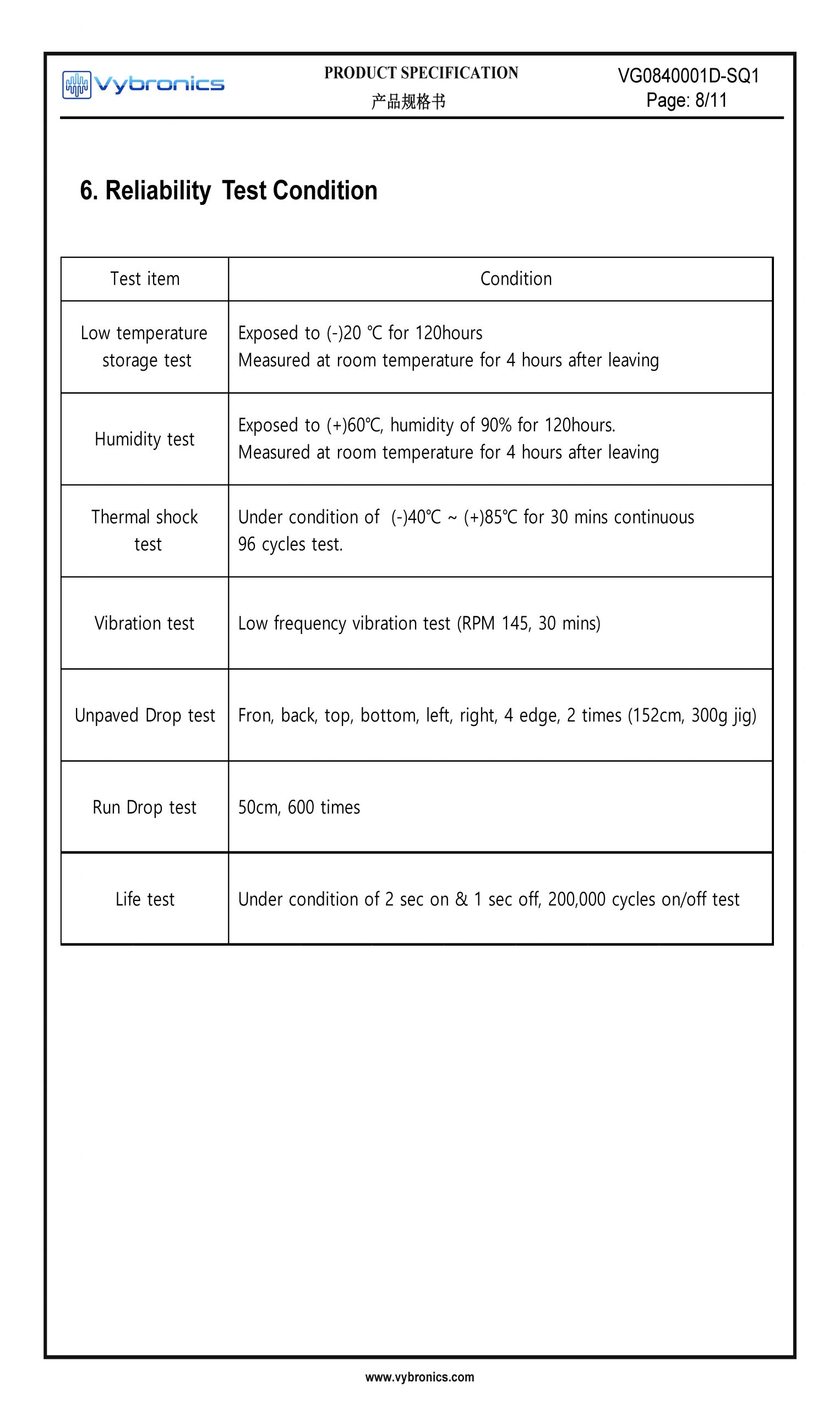

Measuring 8 mm dia. x 4 mm thick, the VG0840001D-SQ1 linear resonant actuator is the largest 8mm diameter LRA on the market producing a minimum vibration force of 1.0 Grms @ 170 hz. Exceptional rise time of 12 ms (max). Its small diameter make it ideal for LRA arrays or devices requiring a small diameter LRA. An LRA Haptic Drive IC must be used to drive this device. This device is designed to be mounted in a molded recessed pocket in the products housing. PCB mounted contact springs or pogo pings mate with coin LRA's contacts pads. PCBA contact springs are made by TE as well as other companies.
CLICK HERE to download the configuration file for RENESAS DA728x-EVAL-KIT.
CLICK HERE to see photos of how coin motors have been mounted in products.

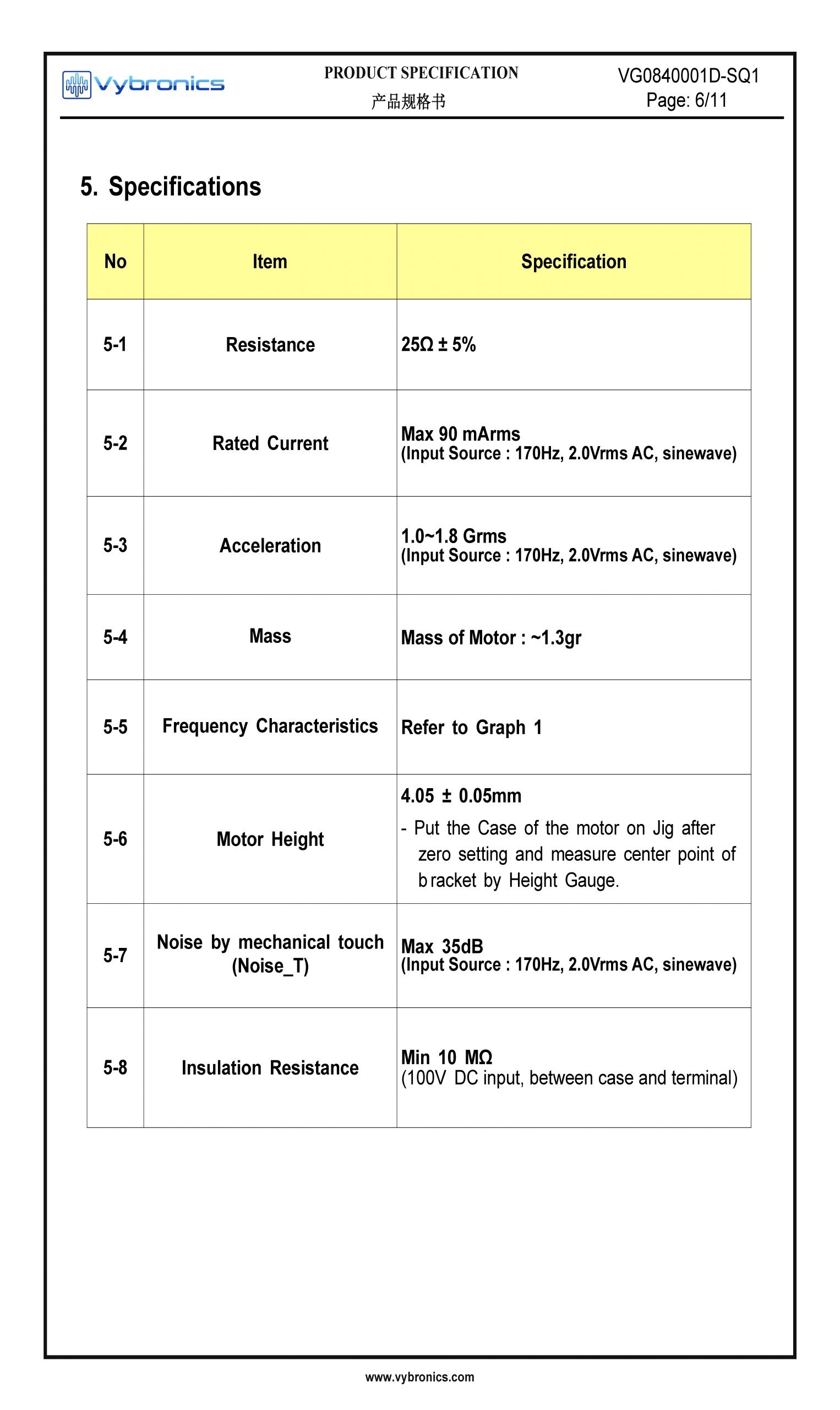

| Summary Of Specifications | |
| Technology Type: | LRA |
| Diameter (mm): | 8.0 |
| Thickness (mm): | 4.05 |
| Rated Voltage (Vac RMS): | 2.0 |
| Operating Voltage (Vac RMS): | 0.1~2.0 |
| Rated Current MAX (mA): | 90 |
| Typical Current (mA): | 68 |

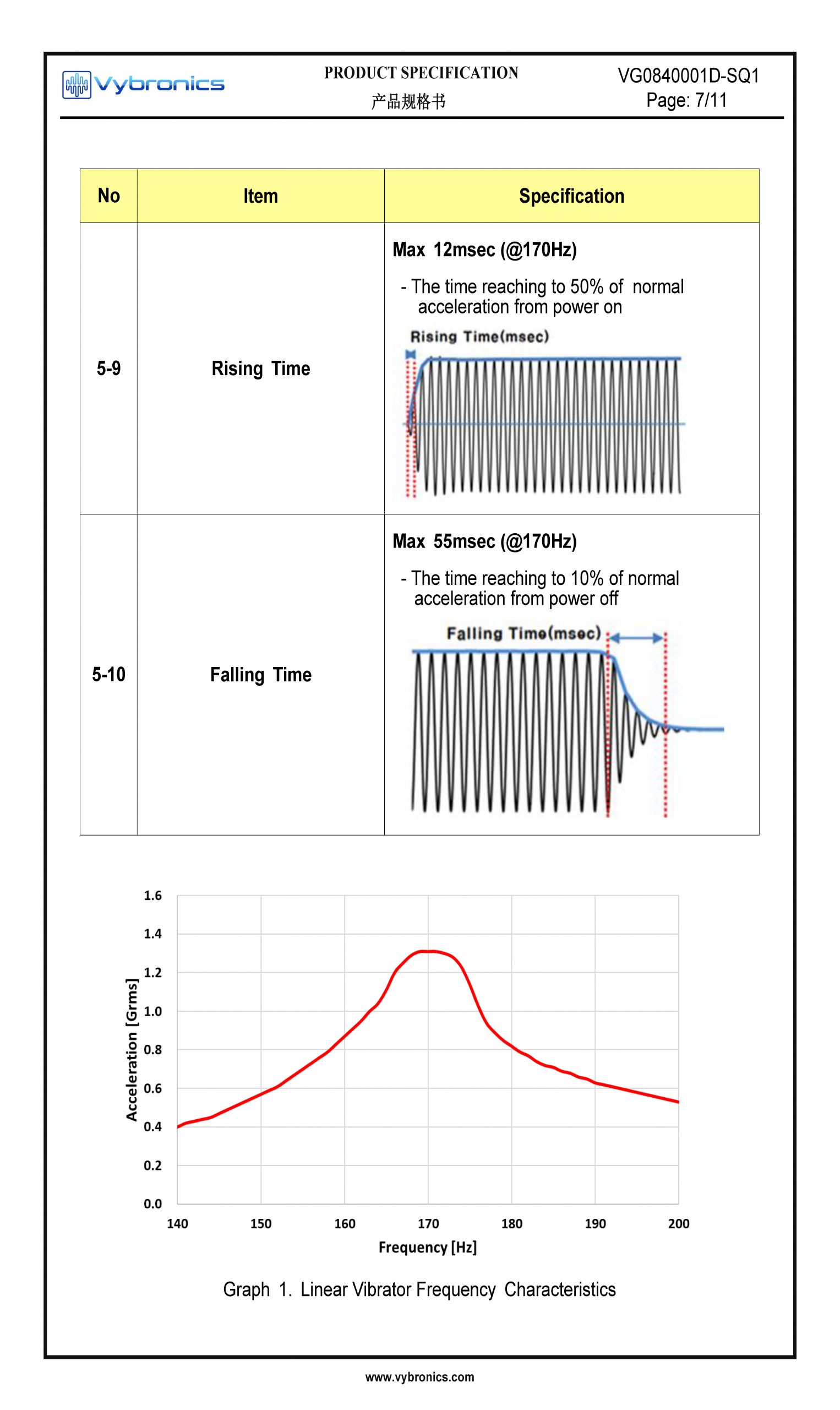

| Rise Time (ms) MAX *: | 12 |
| Fall Time (ms) MAX *: | 55 |

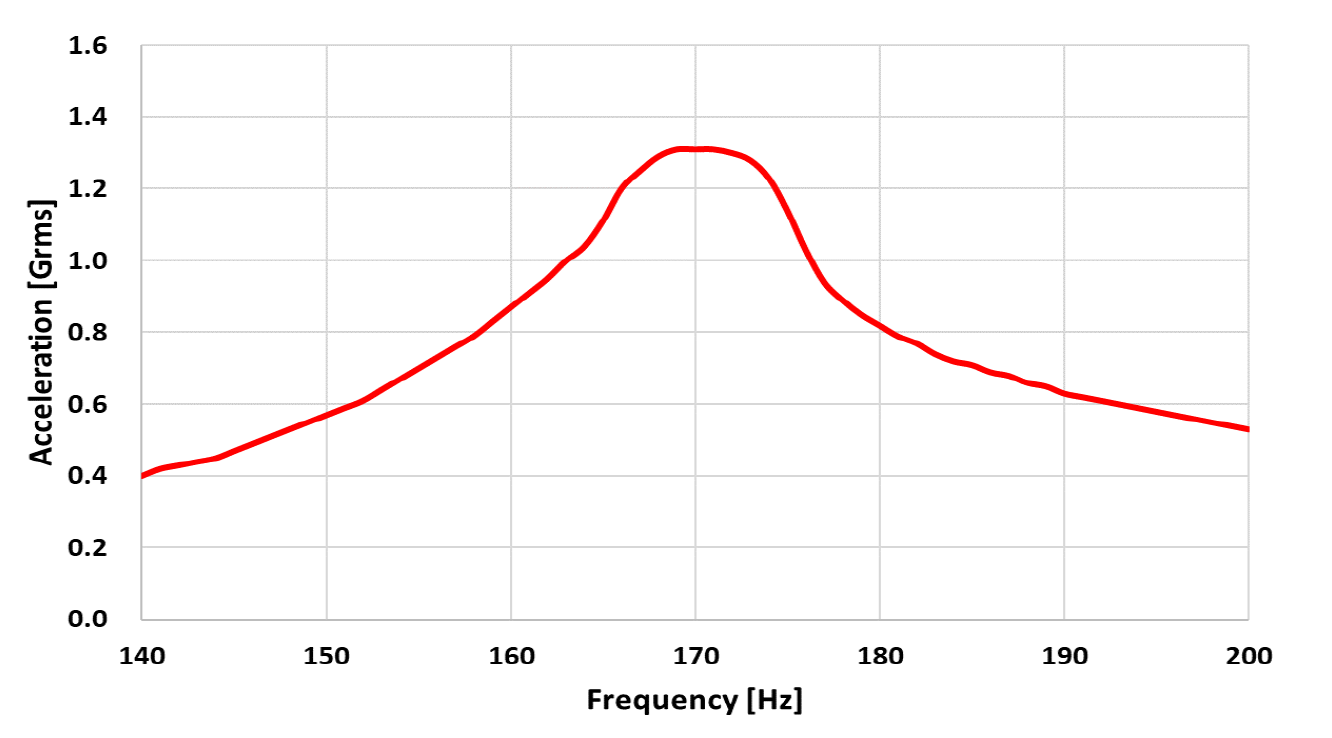

| Resonant Frequency: | 170 |
| Vibration Force (Grms): | 1.00 |
| * at 50% of Maximum G force | |
| Packaging Spec / Tariff Info | |
| Part Packaging: | Plastic Tray |
| Qty per reel / tray: | 50 |
| Quantity - Master box: | 5000 |
| Size - Master Box: | 52*35*17.5CM |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4020 |
| 25% Exclusion Code: | 9903.88.69 |
| 25% Ex. Code Valid: | from June 15, 2024 thru Nov 29, 2025 |
| Country of Origin: | CHINA |
|
If you need samples, please Contact Us. |
|||
|
This part is not authorized for Life Supporting Devices
