Vybronics VQ4SL2BQ280001
Model Number: VQ4SL2BQ280001
(old p/n: Q4SL2BQ280001)

4 mm | 3.0 V | DC Micro Motor – Coreless with Brushes

The VQ4SL2BQ280001 is part of our line of 4mm diameter DC micro-motors that use of precious metal brush contacts. With a stall torque of 0.33 g.cm and a no load speed of 24920 RPM, this motor is suited for such applications as micro-drones and locking mechanisms. Custom lead lengths and RPM speeds are available.

Summary Of Specifications
Diameter (mm): 4.0
Body (mm): 10.0
Overall (mm): 13.8
Shaft Length (mm): 3.8
Shaft Diameter (mm): 0.7
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.2~3.6
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: 12 OCT 21 to
31 DEC 22
Samples
Available from
DigiKey Logo
Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VQ4SL2BQ280001 (old p/n Q4SL2BQ280001) DC Micro Motor – Coreless with Brushes Drawing

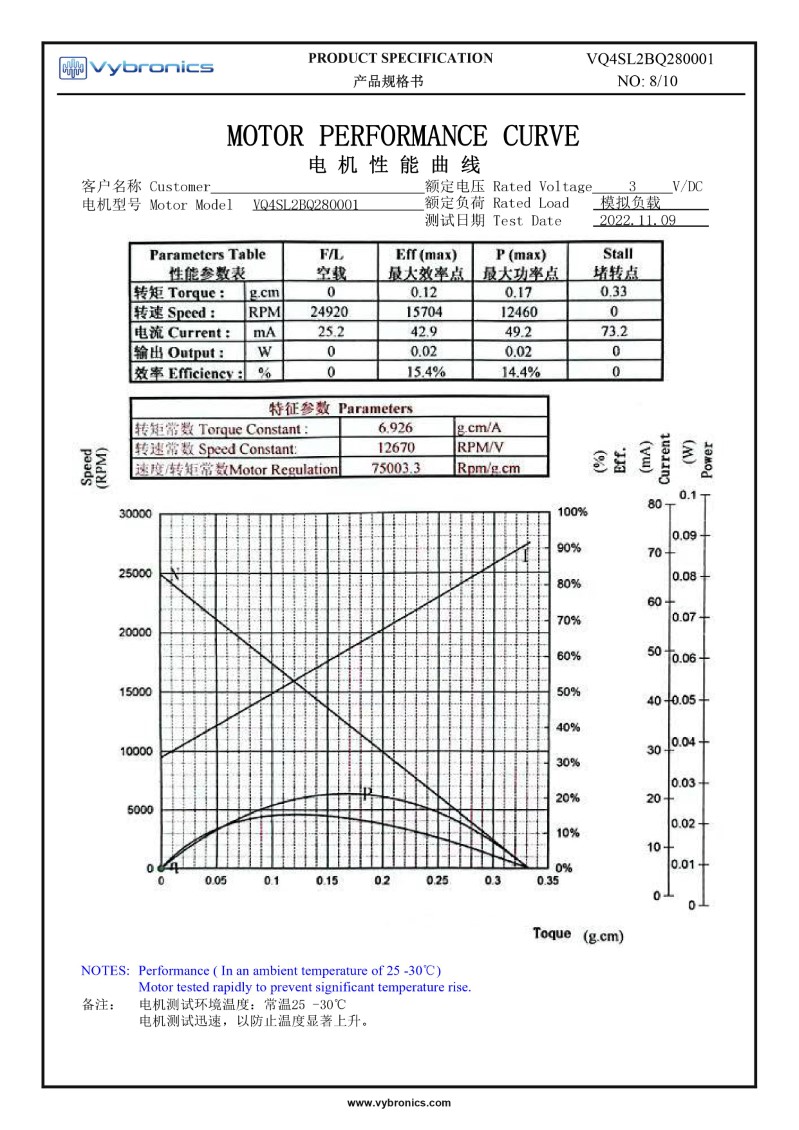

VQ4SL2BQ280001 (old p/n Q4SL2BQ280001) DC Micro Motor – Coreless with Brushes Data 08

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

VQ4SL2BQ280001 (old p/n Q4SL2BQ280001) DC Micro Motor – Coreless with Brushes Data 03VQ4SL2BQ280001 (old p/n Q4SL2BQ280001) DC Micro Motor – Coreless with Brushes Data 04VQ4SL2BQ280001 (old p/n Q4SL2BQ280001) DC Micro Motor – Coreless with Brushes Data 05
