KOTL Jinlong Q4TL2BQ380001
Model Number: VQ4TL2BQ380001
(old p/n: Q4TL2BQ380001)

4 mm | 3.0 V | DC Micro Motor – Coreless with Brushes

The VQ4TL2BQ380001 is a member of our line of 4mm diameter DC micro-motors that use of precious metal brush contacts. It is the smallest size 4mm diameter we manufacture, and produces the least torque. With a stall torque of 0.31 g.cm and a typical no load speed of 39050 RPM, this motor is suited for such applications as micro-drones and locking mechanisms. Custom lead lengths and RPM speeds are available.

Summary Of Specifications
Diameter (mm): 4.0
Body (mm): 8.0
Overall (mm): 12.0
Shaft Length (mm): 4.0
Shaft Diameter (mm): 0.6
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.2~3.6
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS Tarrif: 8501.10.4060
USA 25% Exemption: NONE


If you need samples,
please Contact Us.
Add To Favorite List
VQ4TL2BQ380001 (old p/n Q4TL2BQ380001) DC Micro Motor – Coreless with Brushes Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

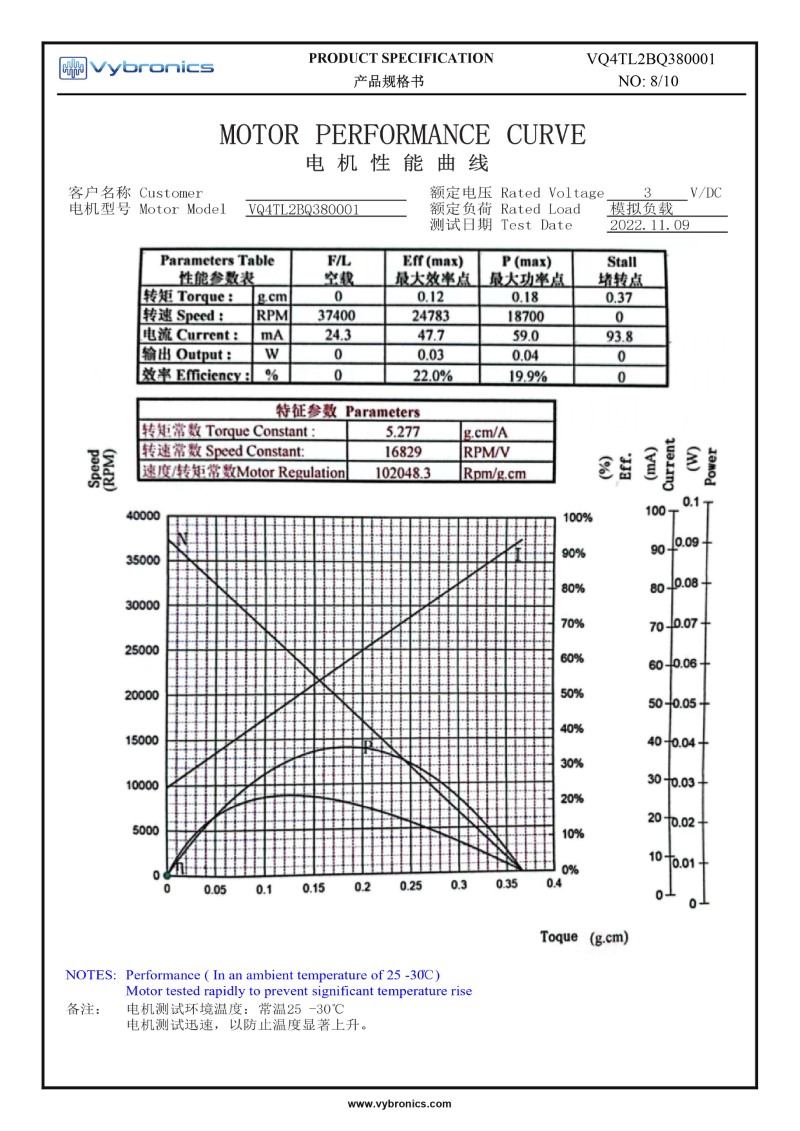

VQ4TL2BQ380001 (old p/n Q4TL2BQ380001) DC Micro Motor – Coreless with Brushes CurveVQ4TL2BQ380001 (old p/n Q4TL2BQ380001) DC Micro Motor – Coreless with Brushes data 02VQ4TL2BQ380001 (old p/n Q4TL2BQ380001) DC Micro Motor – Coreless with Brushes data 03VQ4TL2BQ380001 (old p/n Q4TL2BQ380001) DC Micro Motor – Coreless with Brushes data 04VQ4TL2BQ380001 (old p/n Q4TL2BQ380001) DC Micro Motor – Coreless with Brushes data 05
