Vybronics VQ7AL2BX180003
Model Number: VQ7AL2BX180003
(old p/n: Q7AL2BX180003)

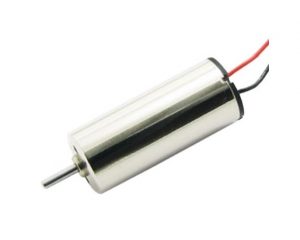

7 mm | 3.0 V | DC Micro Motor – Coreless with Brushes

The VQ7AL2BX180003 is a member of our line of 7 mm diameter DC micro-motors that use of precious metal brush contacts. This is the largest and most powerful micro motor with a stall torque of 6.64 g.cm and a typical no load speed of 20090 RPM. This coreless micro motor is suited for such applications as drones and locking mechanisms. Custom wire lengths and RPM speeds are available.

Summary Of Specifications
Diameter (mm): 7.0
Body (mm): 16.5
Overall (mm): 20.4
Shaft Length (mm): 3.9
Shaft Diameter (mm): 1.0
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.2~3.6
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025
Available from
DigiKey Logo
QTY In Stock: 261 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VQ7AL2BX180003 (old p/n Q7AL2BX180003) DC Micro Motor – Coreless with Brushes Drawing

VQ7AL2BX180003 (old p/n Q7AL2BX180003) DC Micro Motor – Coreless with Brushes Data 08



This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.



VQ7AL2BX180003 (old p/n Q7AL2BX180003) DC Micro Motor – Coreless with Brushes Data 03VQ7AL2BX180003 (old p/n Q7AL2BX180003) DC Micro Motor – Coreless with Brushes Data 04VQ7AL2BX180003 (old p/n Q7AL2BX180003) DC Micro Motor – Coreless with Brushes Data 05
