Vybronics VJP10-35C270M2
Model Number: VJP10-35C270M2

8mm Height | 3 ~ 6 V DC | Cylindrical Vibration Motor

This DC vibration motor has excellent low voltage characteristics with a high vibration amplitude for its size. Wires may be soldered to the terminal on the rear of the motor.   Threaded holes in the front of the motor allow it to be mounted to a customer supplied bracket.  These motors are typically used in adult toys, personal massagers and game controllers.  Small quantities of this standard part may be purchased from DigiKey.   See LINK below.    Custom versions are available, however, after sample approval, MOQ for this part is  5000 pcs.

Summary Of Specifications
Diameter/Height (mm): 10.0 / 8.0
Body (mm): 12.5
Overall (mm): 16.9
Rated Voltage (Vdc): 4.8
Operating Voltage (Vdc): 3.0~6.0
Rated Current MAX (mA): 175
Typical Current (mA): 126
Rated Speed (rpm): 16000
Vibration Force (Grms): 2.60
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 150
Quantity - Master box: 1500
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: thru May 31 2024
Available from
DigiKey Logo
QTY In Stock: 5,933 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List

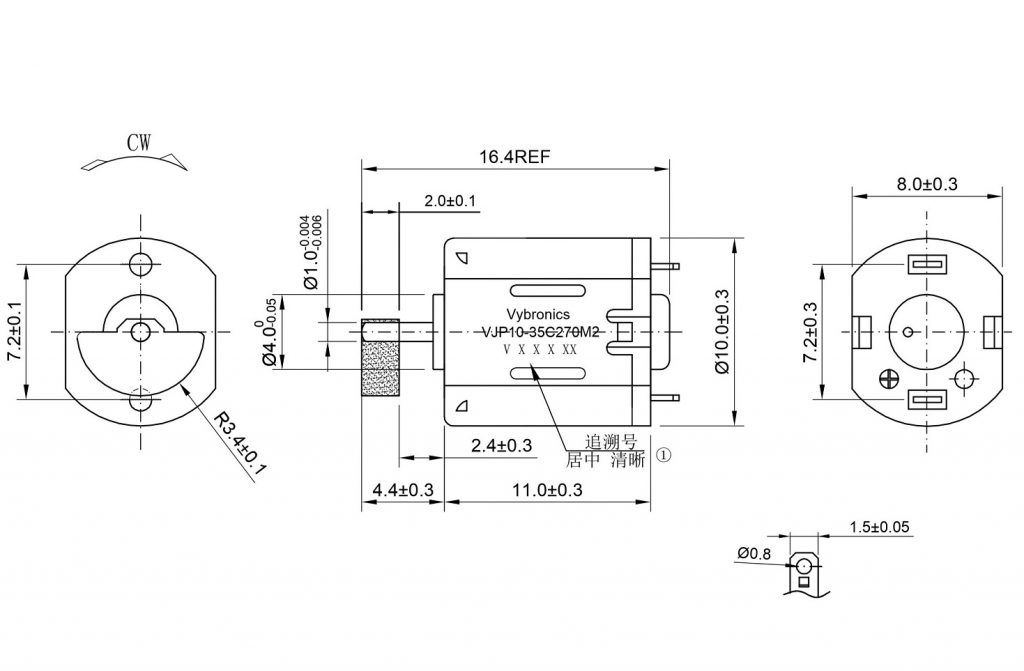

VJP10-35C270M2 (old p/n JP10-35C270M2) Cylindrical Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

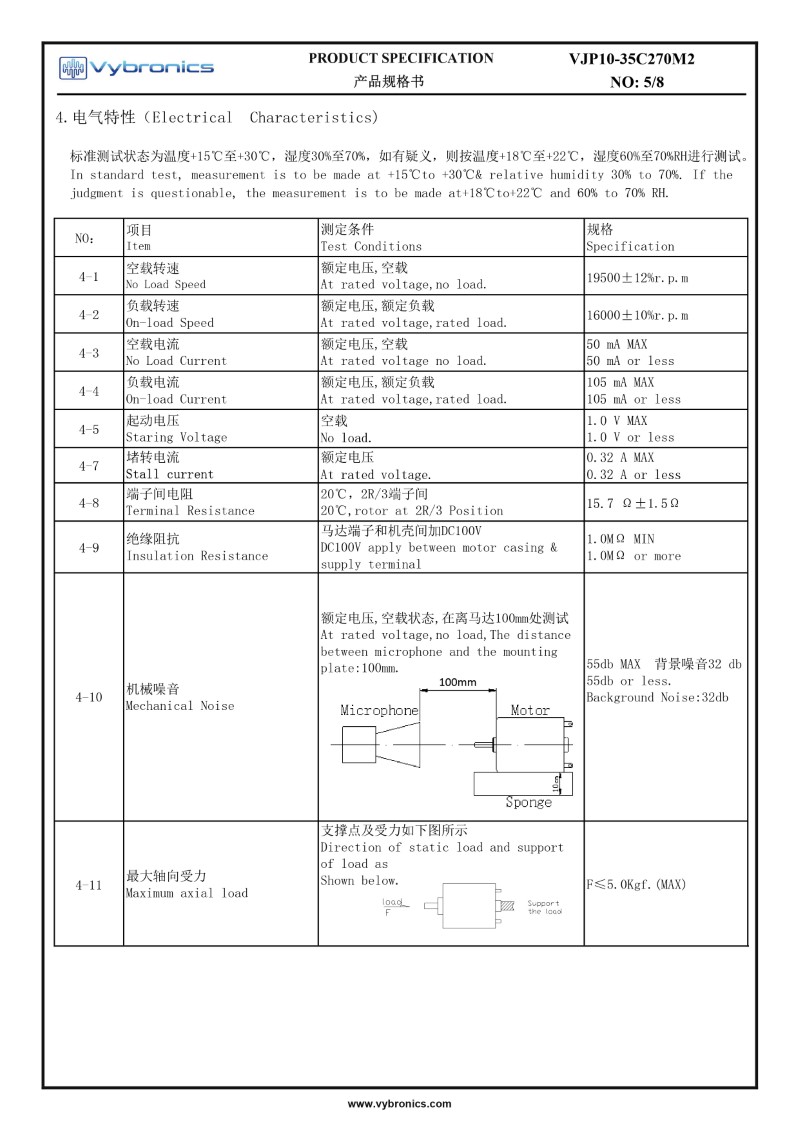

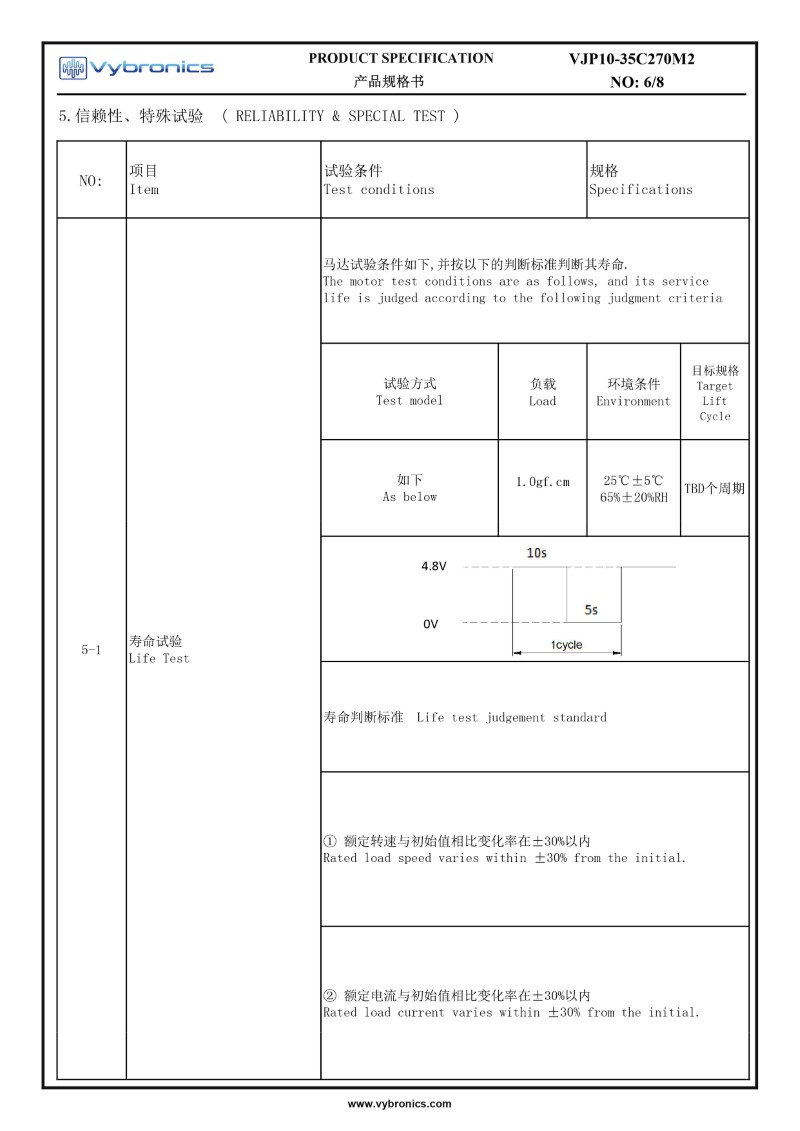

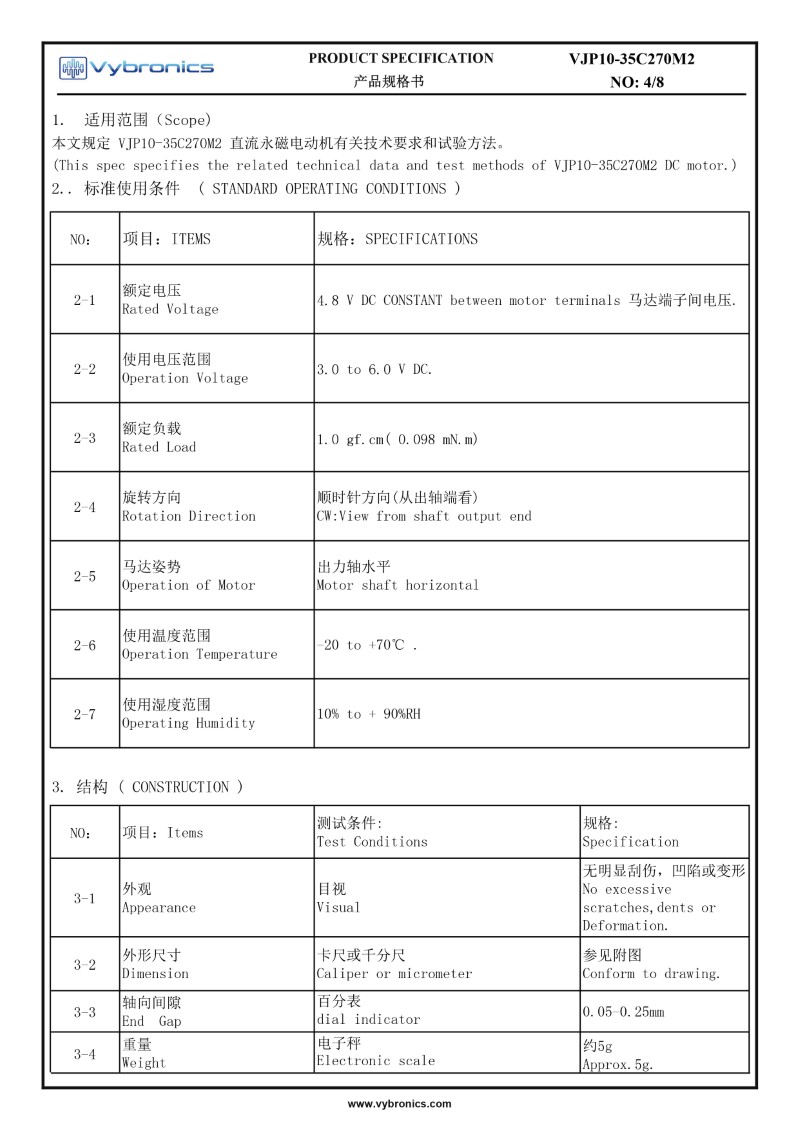

VJP10-35C270M2 (old p/n JP10-35C270M2) Cylindrical Vibration Motor Data 03VJP10-35C270M2 (old p/n JP10-35C270M2) Cylindrical Vibration Motor Data 04VJP10-35C270M2 (old p/n JP10-35C270M2) Cylindrical Vibration Motor Data 05
