Vybronics VJP16-70E310
Model Number: VJP16-70E310
(old p/n: JP16-70E310)

12mm Height | 2.5~7.5VDC | Cylindrical Vibration Motor

This model of vibration motor provides high vibration amplitude in a compact size. Rear mounted solder terminals allow for connection of wires. Threaded holes in the front of the motor allow for mounting. These motors are typically used for massage unit, game controllers and vibratory feeders.

Summary Of Specifications
Diameter/Height (mm): 15.5 / 12.0
Body (mm): 18.6
Overall (mm): 27.1
Rated Voltage (Vdc): 7.2
Operating Voltage (Vdc): 2.5~7.5
Rated Current MAX (mA): 180
Typical Current (mA): 153
Rated Speed (rpm): 8250
Vibration Force (Grms): 6.40
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: 12 OCT 21 to
31 DEC 22
Samples
Available from
DigiKey Logo
Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VJP16-70E310 (old p/n VJP16-70E310) Cylindrical Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

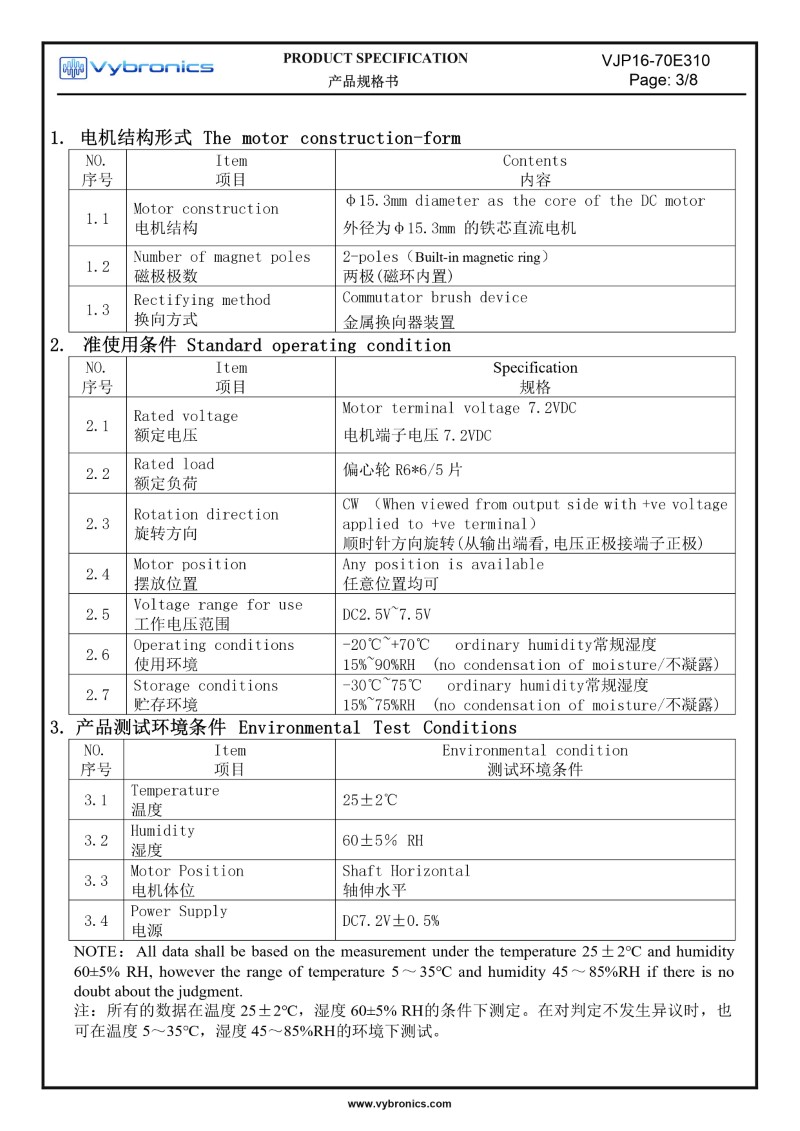

VJP16-70E310 (old p/n VJP16-70E310) Cylindrical Vibration Motor data 02VJP16-70E310 (old p/n VJP16-70E310) Cylindrical Vibration Motor data 03VJP16-70E310 (old p/n VJP16-70E310) Cylindrical Vibration Motor data 04VJP16-70E310 (old p/n VJP16-70E310) Cylindrical Vibration Motor data 05VJP16-70E310 (old p/n VJP16-70E310) Cylindrical Vibration Motor data 06VJP16-70E310 (old p/n VJP16-70E310) Cylindrical Vibration Motor curve
