Model Number: VJP20-84J001U

15.4mm Height | 2 ~ 4.2 V DC | Cylindrical Vibration Motor

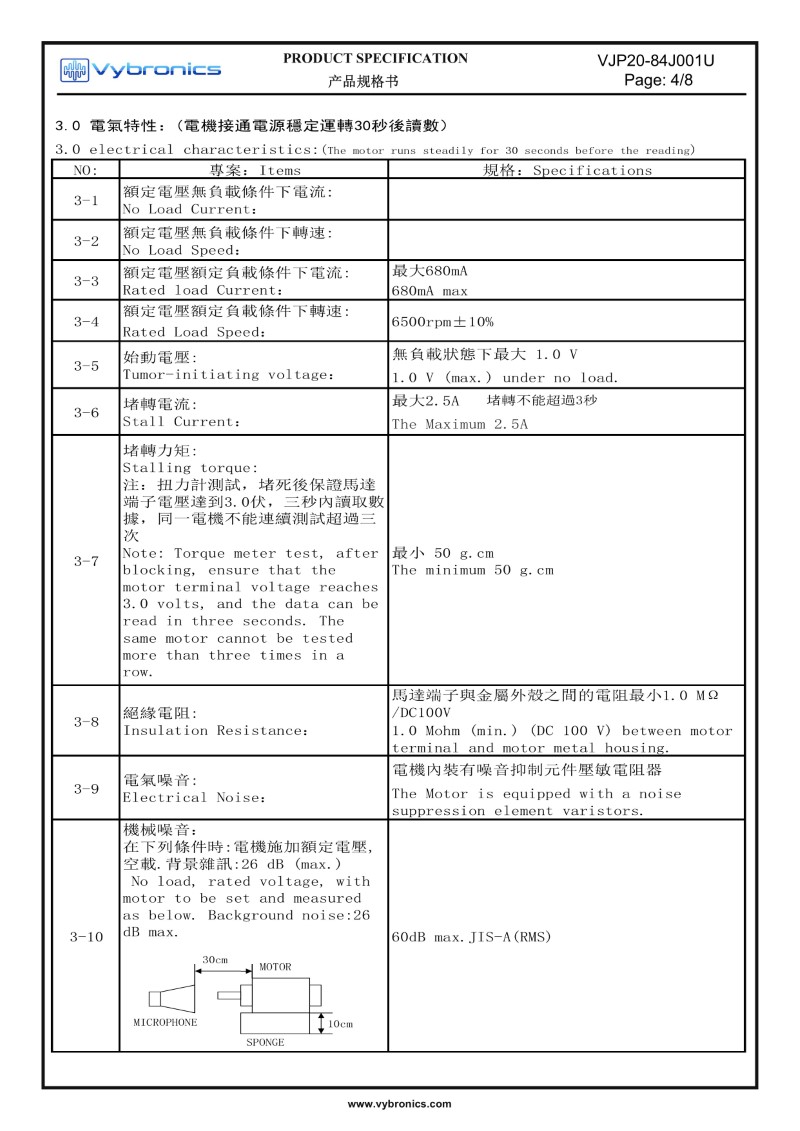

Summary Of Specifications
Diameter/Height (mm):	20.4 / 15.4
Body (mm):	25.0
Overall (mm):	36.8
Rated Voltage (Vdc):	3.0
Operating Voltage (Vdc):	2.0~4.2
Rated Current MAX (mA):	680
Typical Current (mA):	380
Rated Speed (rpm):	6500
Vibration Force (Grms):	7.60

Packaging Spec
Part Packaging:	Tray
Qty per reel / tray:	100
Quantity - Master box:	4000
Size - Master Box:	Call us
Weight - Master Box:	Call us
ECCN:	EAR99
USA HTS TARIFF:	8501.10.4060
25% Exclusion Code:	9903.88.69
25% Ex. Code Valid:	from June 15, 2024 thru May 31, 2025

If you need samples,
please Contact Us.

Add To Favorite List

Not exactly what you are looking for? Click Here to see all our Strong Motors, or Click Here see a full listing of all types of Cylindrical Vibration Motors.

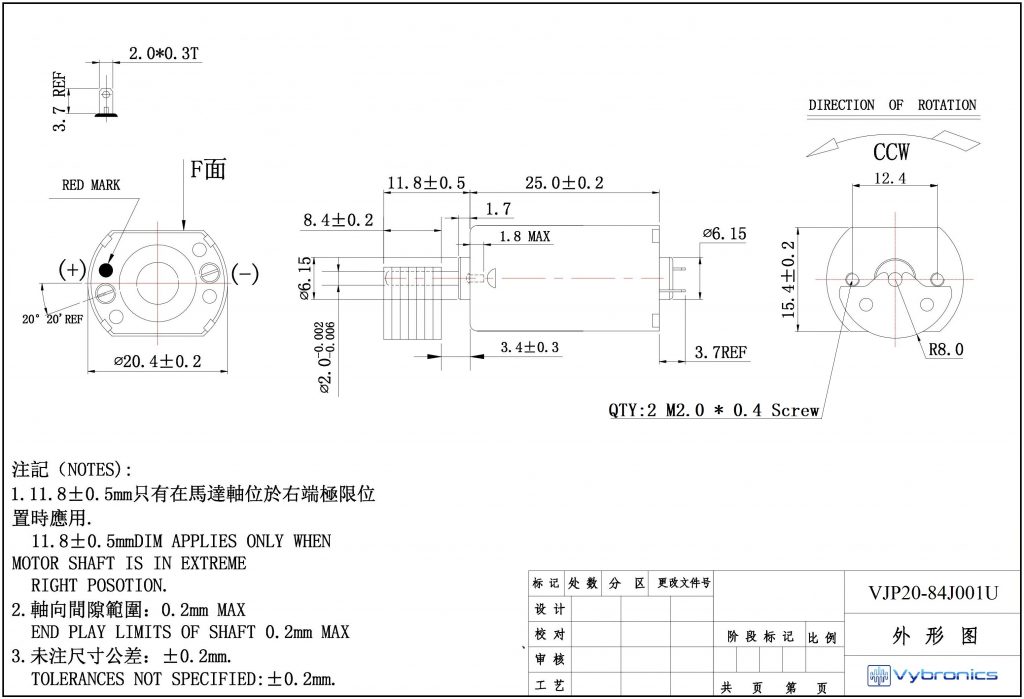

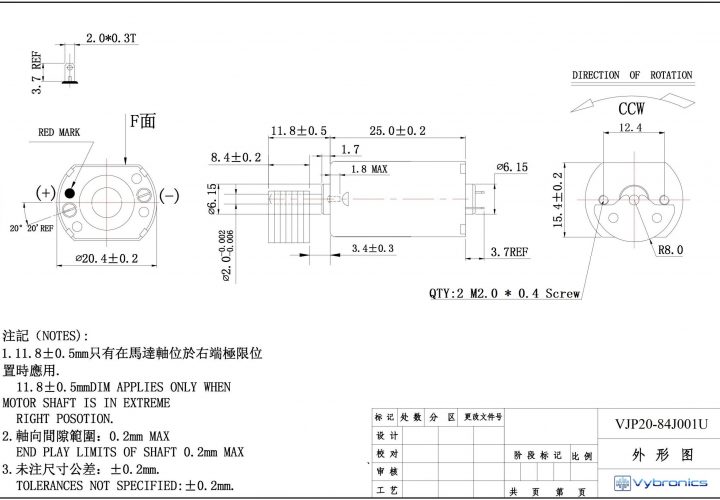

VJP20-84J001U Cylindrical Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
