Vybronics VJQ24-35E400C
Model Number: VJQ24-35E400C
(old p/n: JQ24-35E400C)

24.4 mm Dia | 4.0 ~ 8.0 VDC | Cylindrical Vibration Motor

This model of vibration motor provides high vibration amplitude coupled with a low vibration frequency. Rear mounted solder terminals allow for connection of wires. Threaded holes in the front of the motor allow for mounting. These motors are typically used for massage devices, medical devices and gaming controllers .

Summary Of Specifications
Diameter/Height (mm): 24.4
Body (mm): 13.0
Overall (mm): 25.0
Rated Voltage (Vdc): 5.0
Operating Voltage (Vdc): 4.0~8.0
Rated Current MAX (mA): 120
Typical Current (mA): 73
Rated Speed (rpm): 5100
Vibration Force (G): 7.20
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 50
Quantity - Master box: 500
Size - Master Box: 36*27*22.5CM
Weight - Master Box: 12KG
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: 12 OCT 21 to
31 DEC 22


If you need samples,
please Contact Us.
Add To Favorite List

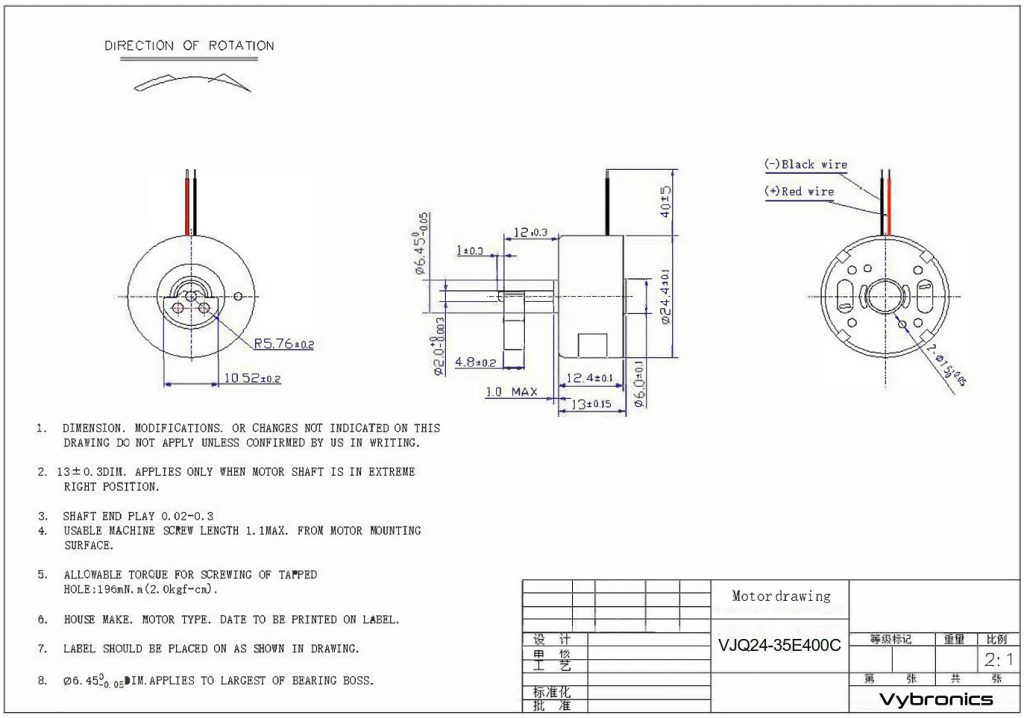

VJQ24-35E400C (old p/n JQ24-35E400C) Cylindrical Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

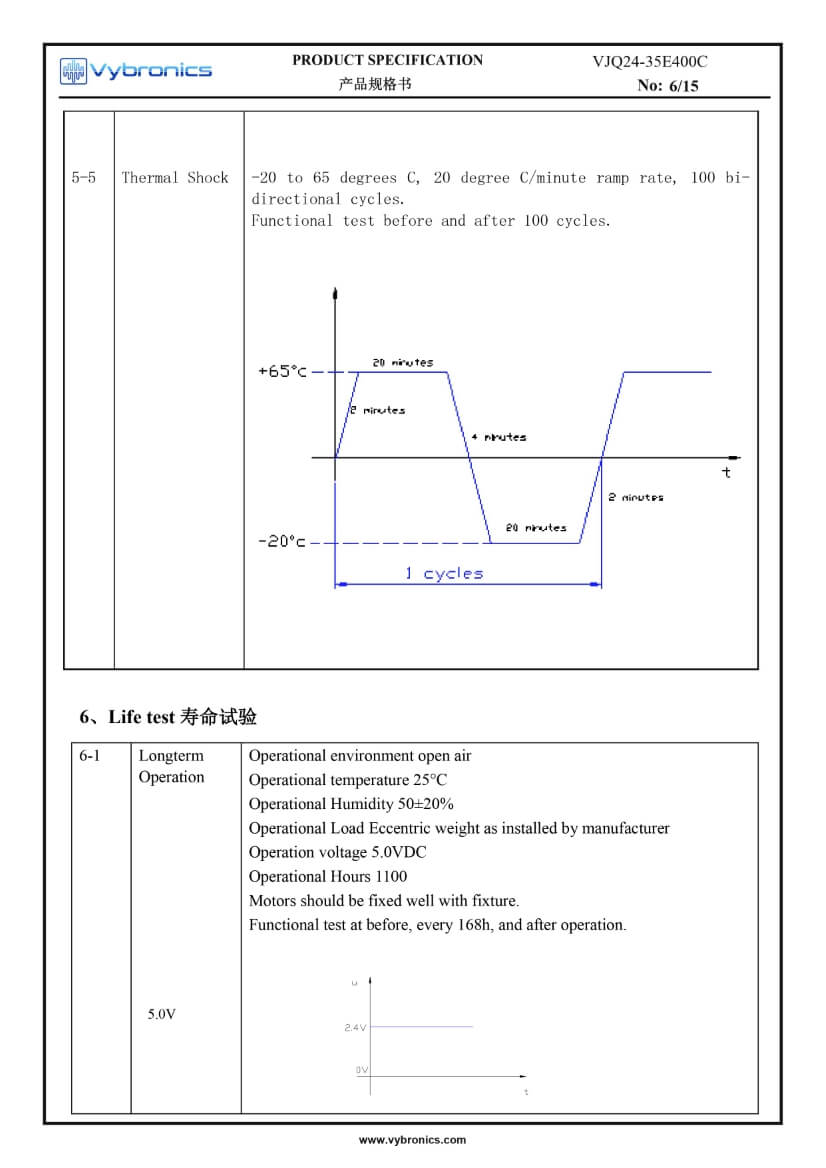

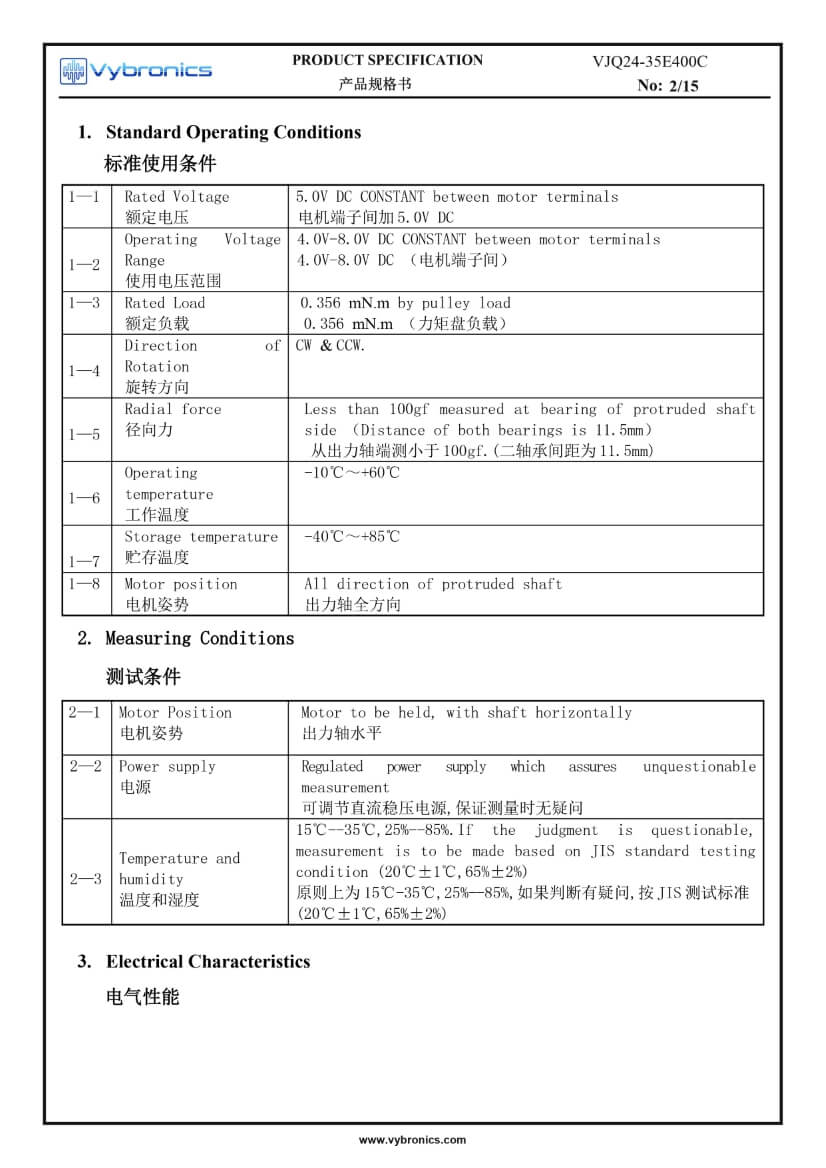

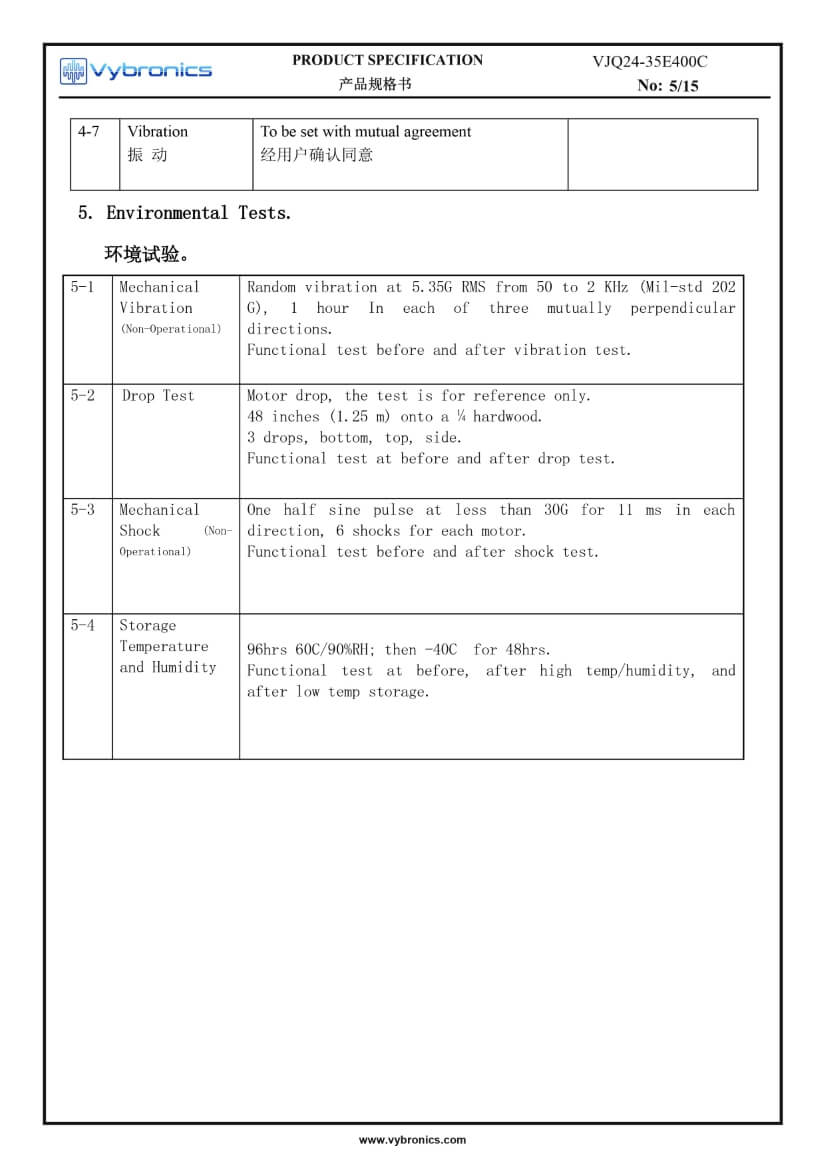

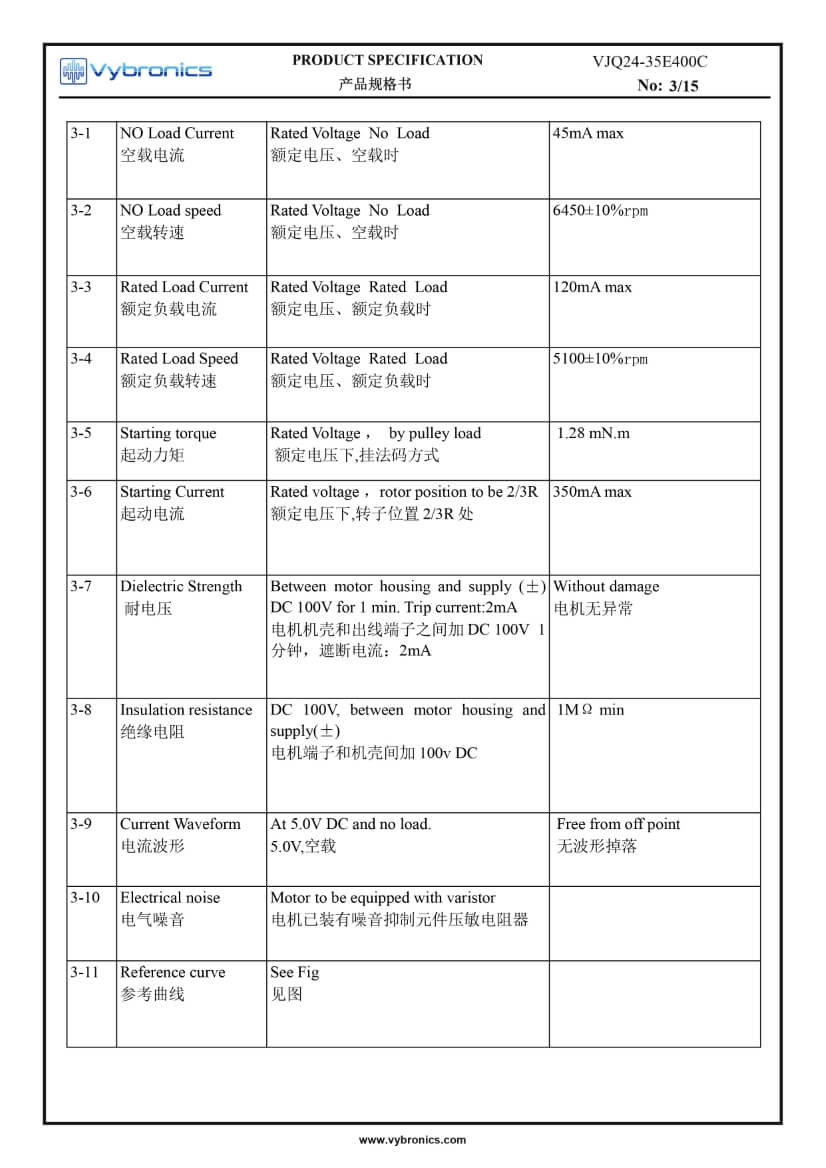

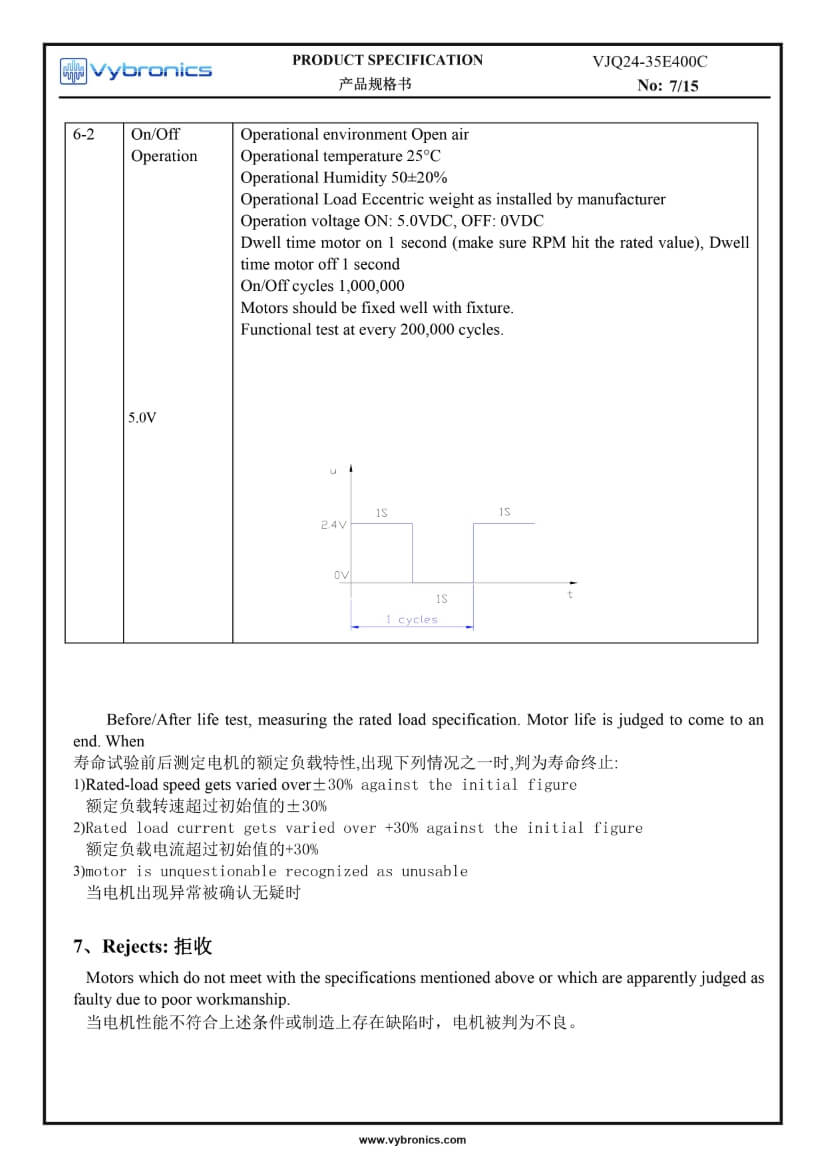

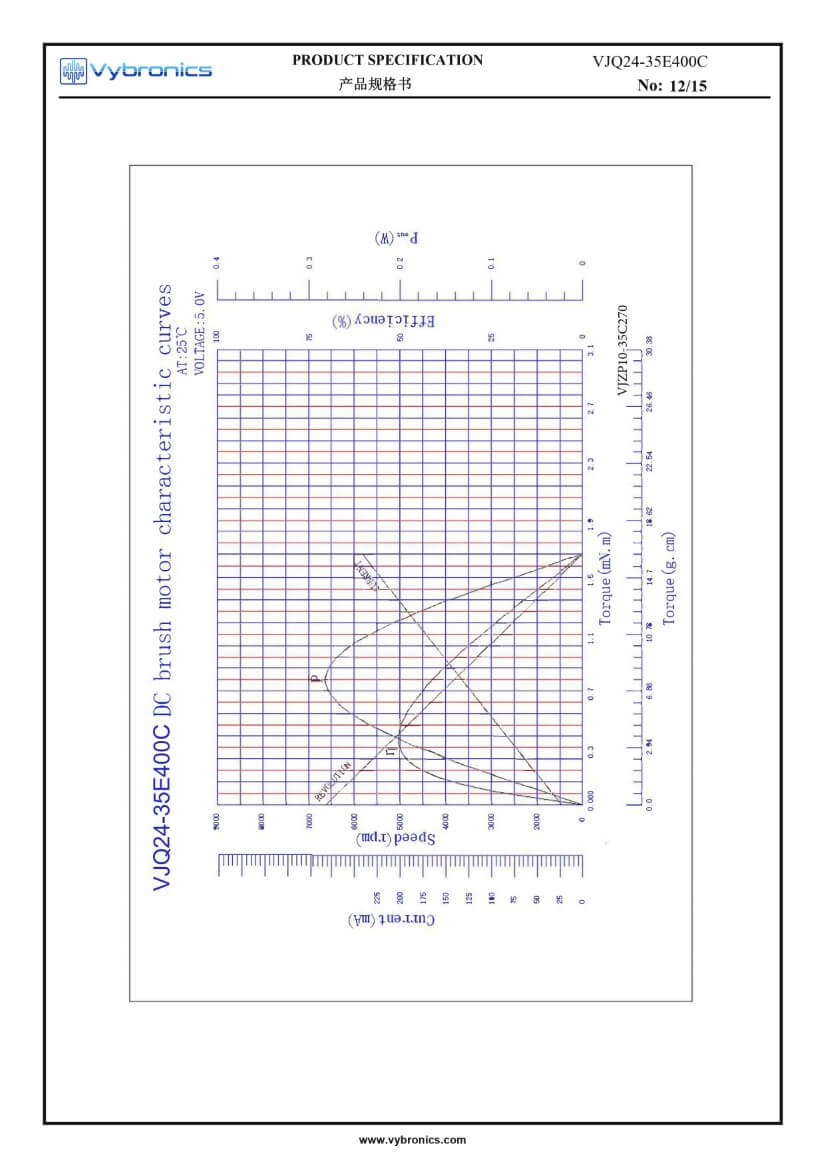

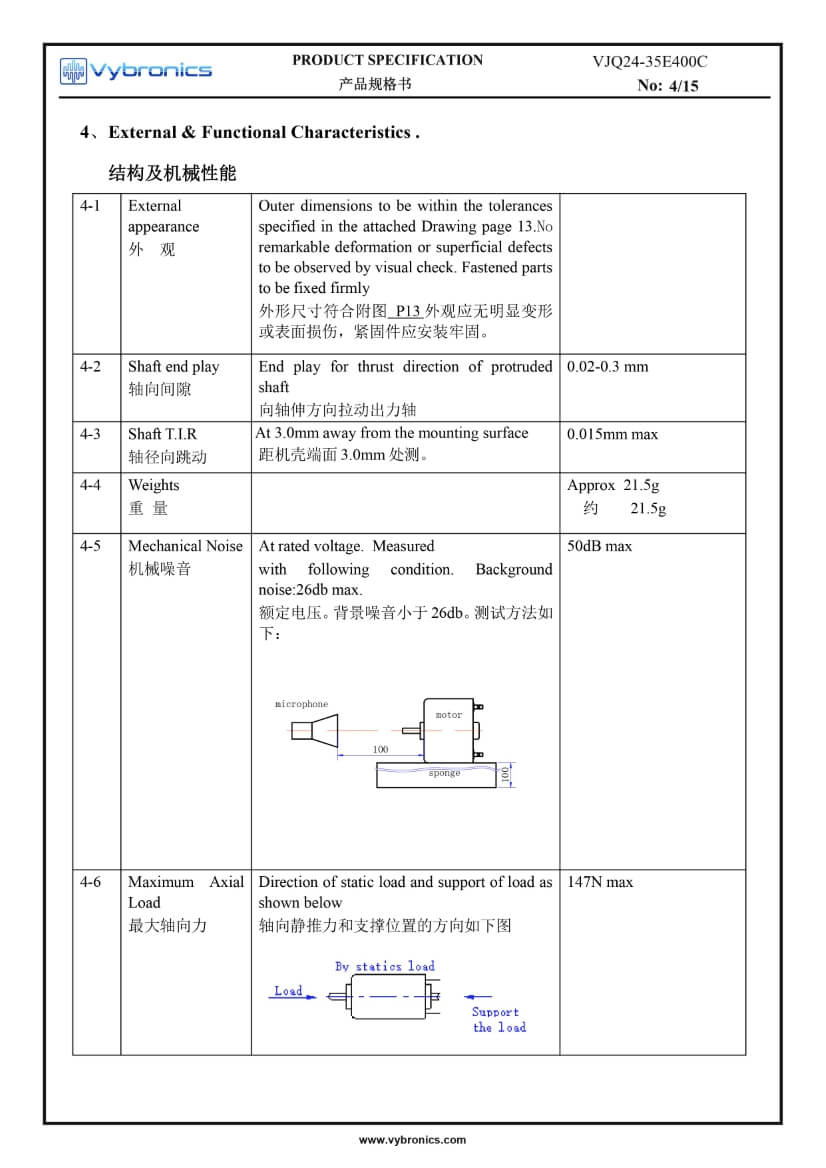

VJQ24-35E400C (old p/n JQ24-35E400C) Cylindrical Vibration Motor data 02VJQ24-35E400C (old p/n JQ24-35E400C) Cylindrical Vibration Motor data 03VJQ24-35E400C (old p/n JQ24-35E400C) Cylindrical Vibration Motor data 04VJQ24-35E400C (old p/n JQ24-35E400C) Cylindrical Vibration Motor data 05VJQ24-35E400C (old p/n JQ24-35E400C) Cylindrical Vibration Motor data 06VJQ24-35E400C (old p/n JQ24-35E400C) Cylindrical Vibration Motor data 07VJQ24-35E400C (old p/n JQ24-35E400C) Cylindrical Vibration Motor curve
