Vybronics VZ6SC3A0060001
Model Number: VZ6SC3A0060001
(old p/n: Z6SC3A0060001)

6mm Dia | 1.3 V | Rear Contact Pin | Vibration Motor

The rear contact pin of this vibration motor lends itself to a number of interesting applications. A battery can be placed directly behind the motor, in a similar manner a battery is placed behind a light bulb in a flashlight. The motor can also be placed in a bracket which mates with the contact pins, similar to that of a standard AA cell battery holder. This motor is available in a wide variety of RPM speeds and voltages. Contact us to discuss these applications further.

Summary Of Specifications
Diameter/Height (mm): 6.0
Body (mm): 10.2
Overall (mm): 14.3
Rated Voltage (Vdc): 1.3
Operating Voltage (Vdc): 0.9~1.6
Rated Current MAX (mA): 90
Typical Current (mA): 68
Rated Speed (rpm): 8500
Vibration Force (Grms): 0.70
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: thru May 31 2024


If you need samples,
please Contact Us.
Add To Favorite List

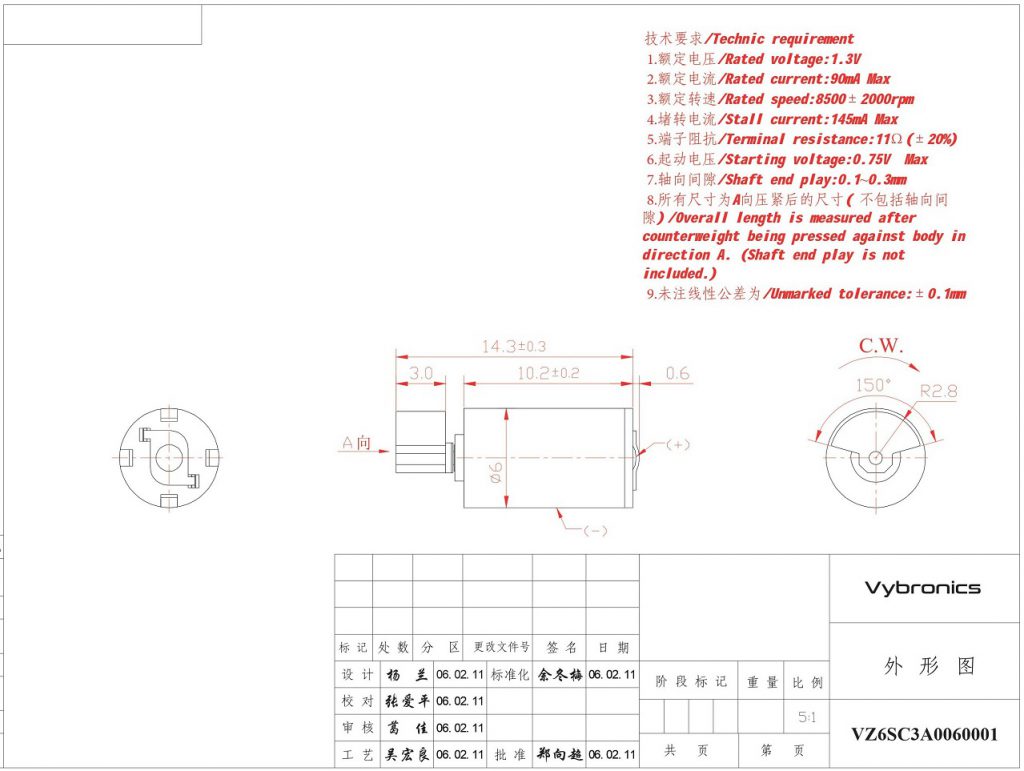

Vybronics VZ6SC3A0060001, Cylindrical Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

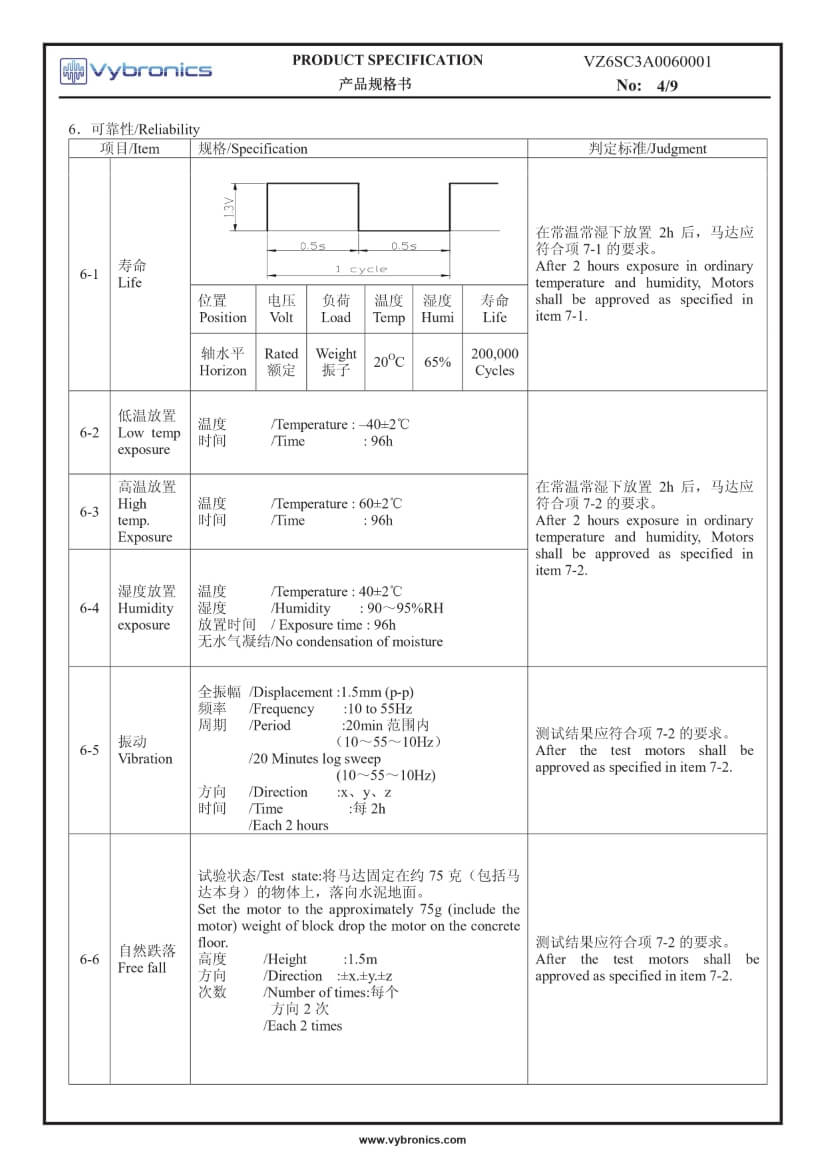

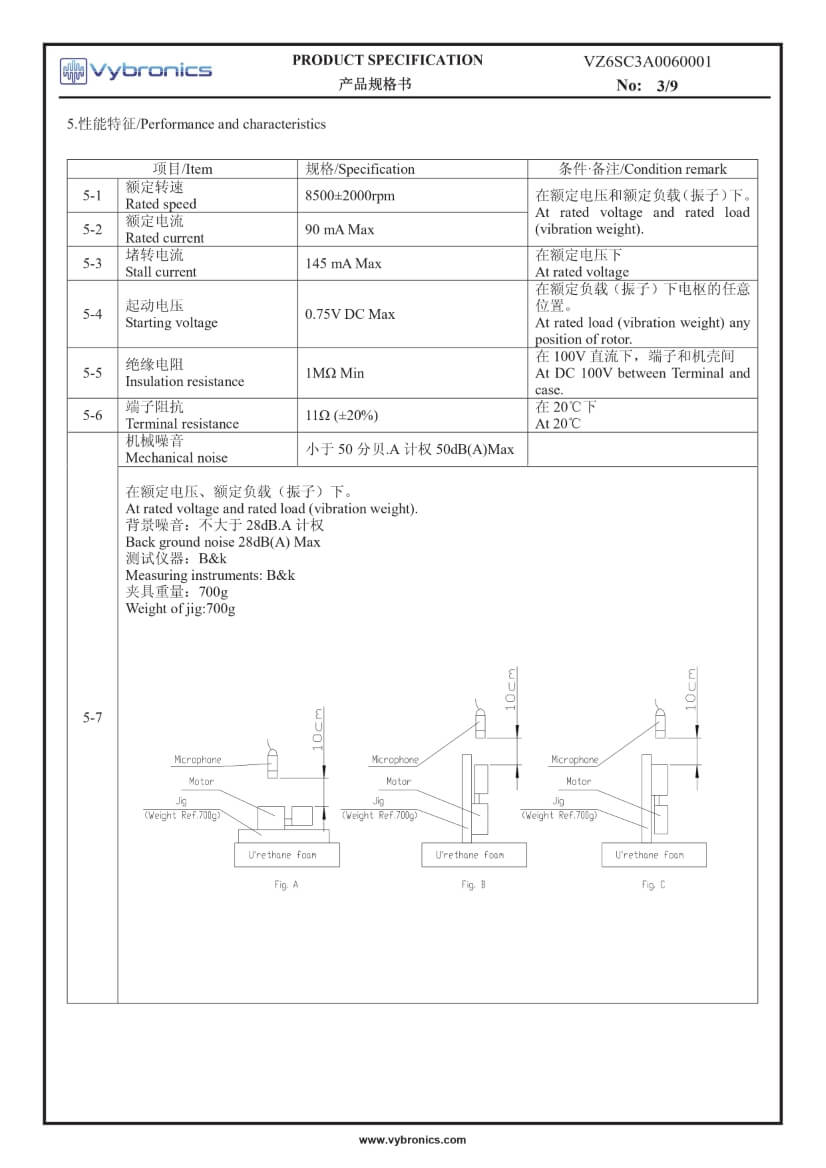

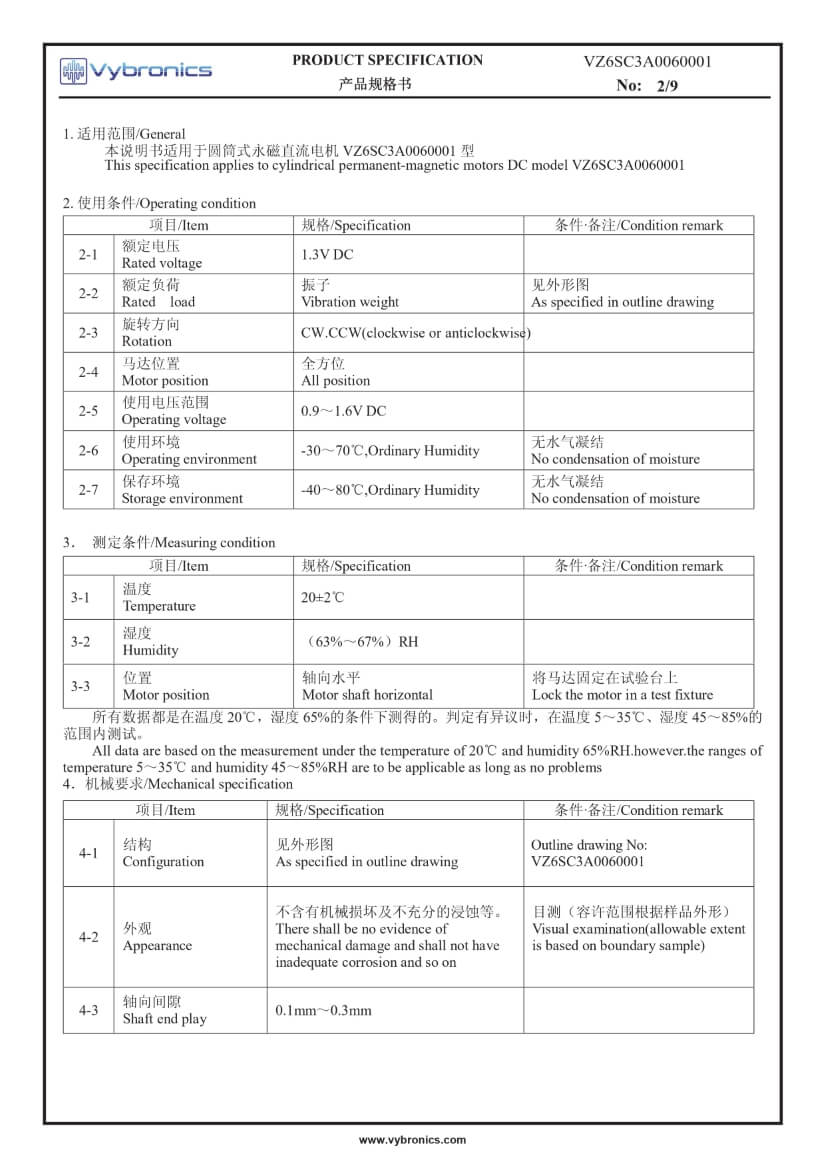

Vybronics VZ6SC3A0060001, Cylindrical Motor Data 02Vybronics VZ6SC3A0060001, Cylindrical Motor Data 03Vybronics VZ6SC3A0060001, Cylindrical Motor Data 04Vybronics VZ6SC3A0060001, Cylindrical Motor Data 05
