Vybronics VL91022-160-320H
Model Number: VL91022-160-320H
(old p/n: L91022-160-320H)

22.6 x 10 x 9 mm | 1.5 Vrms | 160/320 hz | LRA Dual Axis

The VL91022-160-320H is a unique multi-frequency / multi-directional  LRA that maybe driven at either 160 hz or 320 hz  or by a complex waveform to provide the user with unique multi-directional  haptic feedback experiences.   Its unique internal construction allow it produce vibration energy in either the Y (320 hz)  or Z (160 hz) plane or in multiple planes when driven with a complex waveform.   LRA's like this have been used in Nintendo video game controllers and other apps requiring strong / complex haptic feedback.  This part is typically connected to a LRA  driver IC which produces the AC  drive signal for this device.  For further comments about this see the BOTTOM of this page.  We can supply this LRA as shown in the photo with FPC solder lands, wire leads with a length as per your request, or a custom FPC. Minimum quantities and tooling fees may apply.


CLICK HERE to download the configuration file for RENESAS DA728x-EVAL-KIT.

Summary Of Specifications
Length (mm): 22.6
Width (mm): 10.0
Height (mm): 9.0
Rated Voltage (AC RMS): 1.5
Operating Voltage (AC RMS): 0.1 ~ 1.65
Rated Current MAX (mA): 180
Typical Current (mA): 155
Rise Time (ms) MAX *: 50
Fall Time (ms) MAX *: 60
Resonant Frequency: 160 / 320
Vibration Force (Grms): 3.00
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 50
Quantity - Master box: 2000
Size - Master Box: 38.5*26*27CM
Weight - Master Box: 22KG
ECCN: EAR99
USA HTS TARIFF: 8501.10.4020
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025
Available from
DigiKey Logo
QTY In Stock: 57 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List

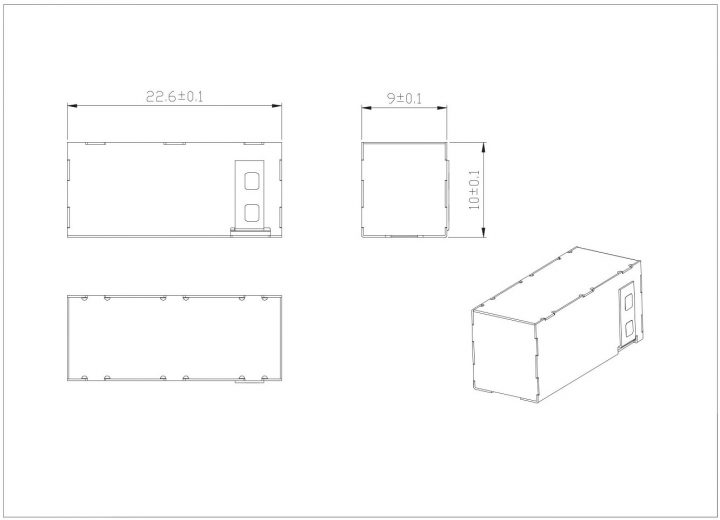

VL91022-160-320H LRA LINEAR VIBRATION MOTOR DRAWING

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

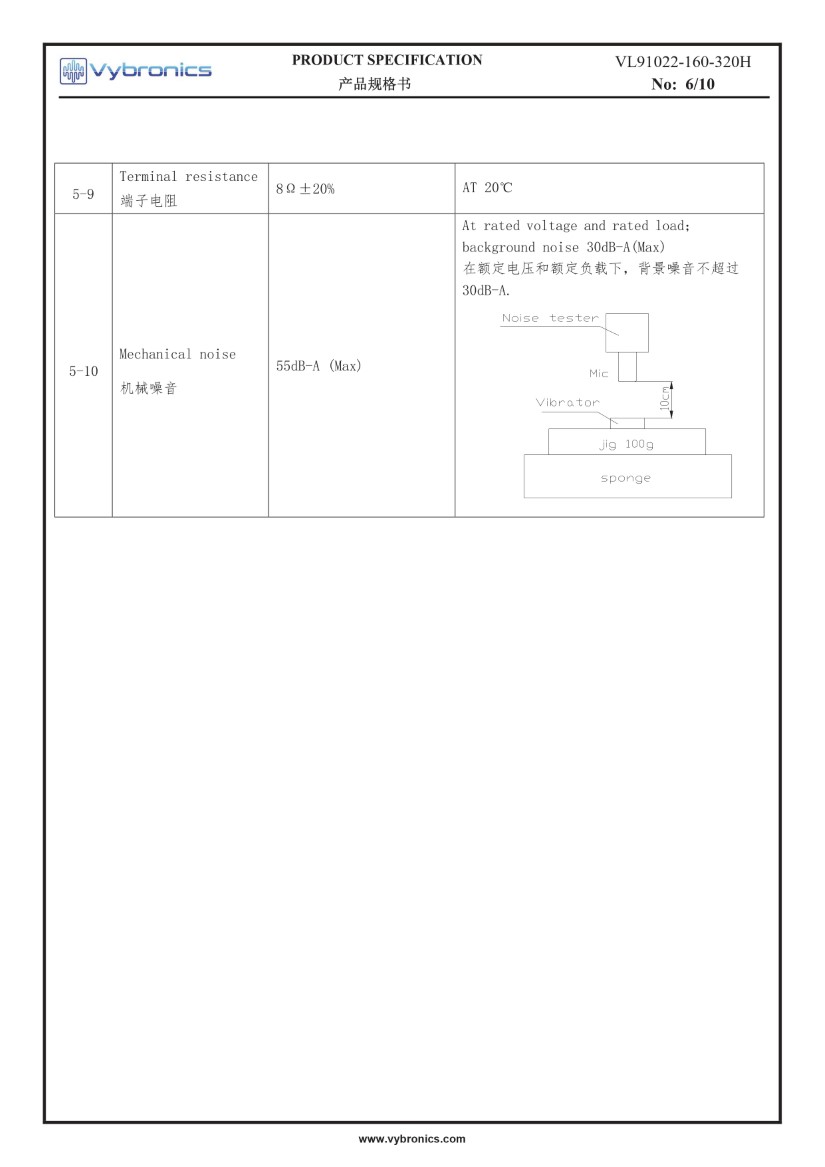

VL91022-160-320H LRA LINEAR VIBRATION MOTOR DATA 04VL91022-160-320H LRA LINEAR VIBRATION MOTOR DATA 05VL91022-160-320H LRA LINEAR VIBRATION MOTOR DATA 06VL91022-160-320H LRA LINEAR VIBRATION MOTOR DATA 07
