Vybronics VLV041235L
Model Number: VLV041235L

12 x 4 x 3.5 mm | 1.8 Vrms | 240hz | LRA Z-Axis

The  VLV041235L  rectangular, Z-axis LRA can be used for a variety of haptic feedback applications.    It has solderable contact pads on both the top and bottom  (double-sided) of the FPC which allowing it to be connected directly to a PCB  using a "hot bar soldering" machine.    Like all LRA's this device is typically connected to a LRA  driver IC which produces the AC  drive signal for this device.  For further information about this see the BOTTOM of this page.         For orders of 1K pcs+, it can be ordered with or without tape / foam. Custom FPC's are available as well.

Summary Of Specifications
Length (mm): 12.0
Width (mm): 4.0
Height (mm): 3.5
Rated Voltage (AC RMS): 1.8
Operating Voltage (AC RMS): 0.1 ~ 1.85
Rated Current MAX (mA): 60
Typical Current (mA): 47
Rise Time (ms) MAX *: 40
Fall Time (ms) MAX *: 60
Resonant Frequency: 240
Vibration Force (Grms): 1.60
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 50
Quantity - Master box: 4000
Size - Master Box: 44*26.5*16.8CM
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4020
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025
Available from
DigiKey Logo
QTY In Stock: 0 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VLV041235L LRA LINEAR VIBRATION MOTOR Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

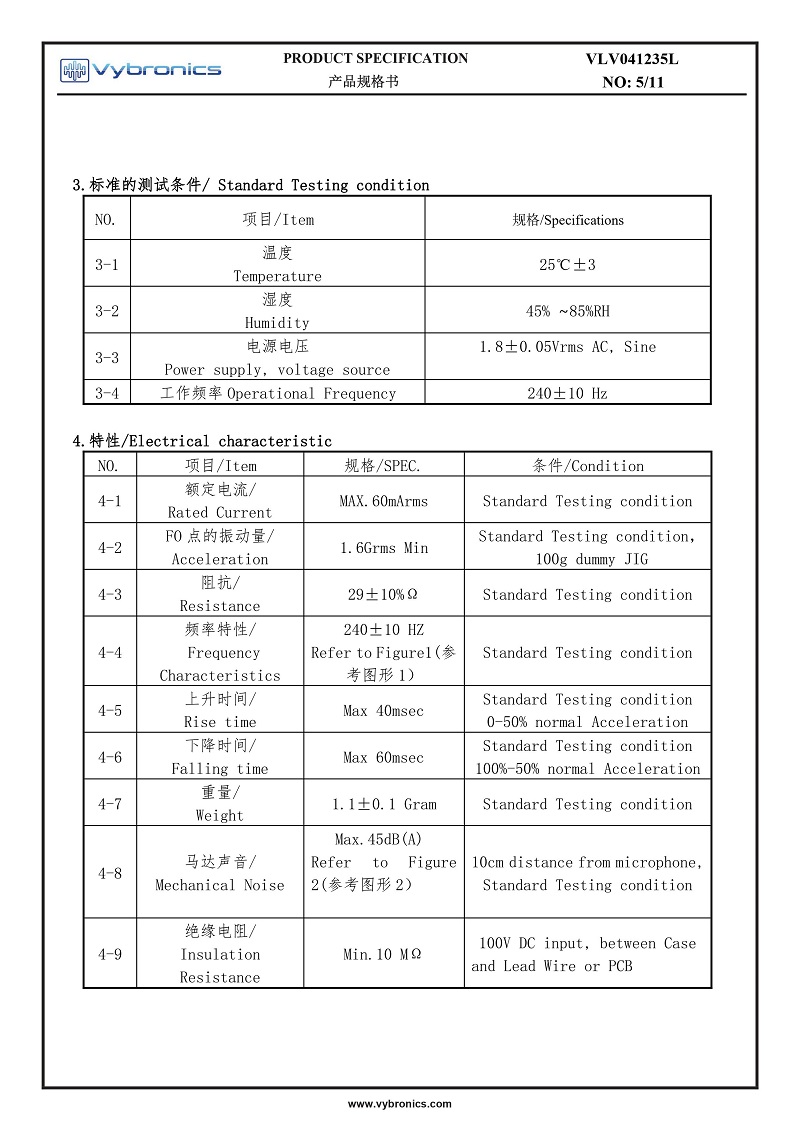

VLV041235L LRA LINEAR VIBRATION MOTOR data 04VLV041235L LRA LINEAR VIBRATION MOTOR data 05VLV041235L LRA LINEAR VIBRATION MOTOR data 06VLV041235L LRA LINEAR VIBRATION MOTOR data 07VLV041235L LRA LINEAR VIBRATION MOTOR data 08
