VLV221007C image coming soon
Model Number: VLV221007C

22.5 x 10 x 7 mm | 12 Vrms | 335hz | LRA X-Axis

This large LRA is currently being designed for Automotive applications.  It  is still in the design stage, and has not been released yet.   All specifications below are PRELIMINARY and subject to change.  If you which to order prototype samples, please contact us to add your name to the list.  Target date:   3Q  2022

Discontinued mark
Summary Of Specifications
Length (mm): 22.5
Width (mm): 10.0
Height (mm): 7.0
Rated Voltage (AC RMS): 12.0
Operating Voltage (AC RMS): 9.0 ~ 16.0
Rated Current MAX (mA): 1000
Typical Current (mA):
Rise Time (ms) MAX *:
Fall Time (ms) MAX *:
Resonant Frequency: 335
Vibration Force (Grms): 10.00
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4020
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: thru May 31 2024


If you need samples,
please Contact Us.
Add To Favorite List

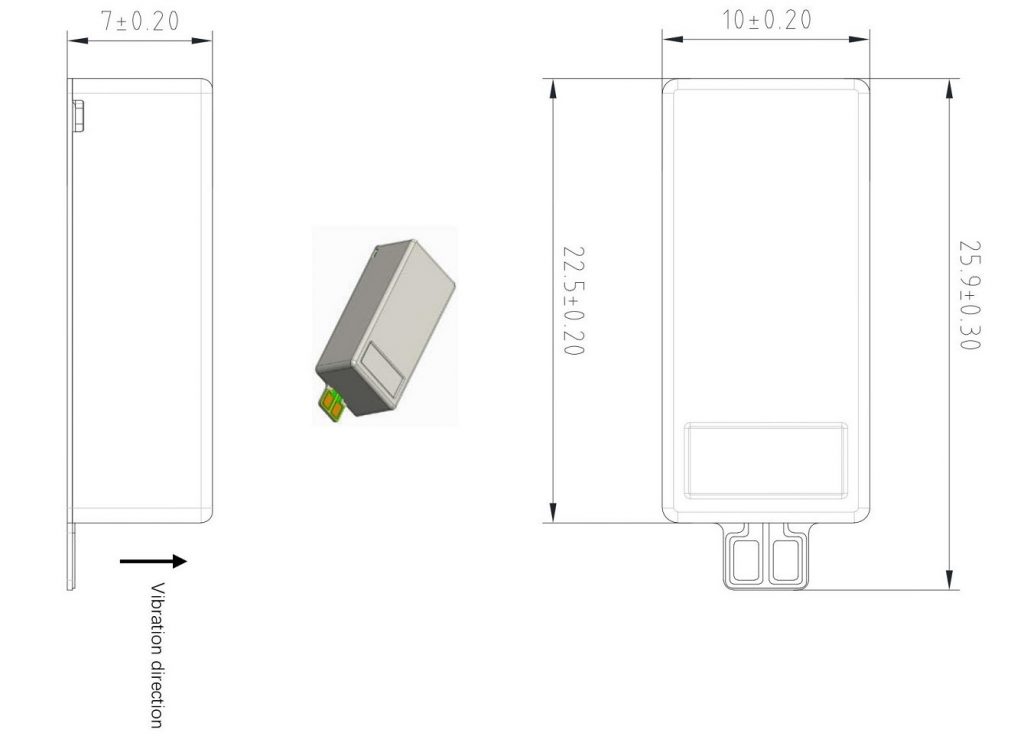

Vybronics VLV221007C Linear Resonant Actuator LRA Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

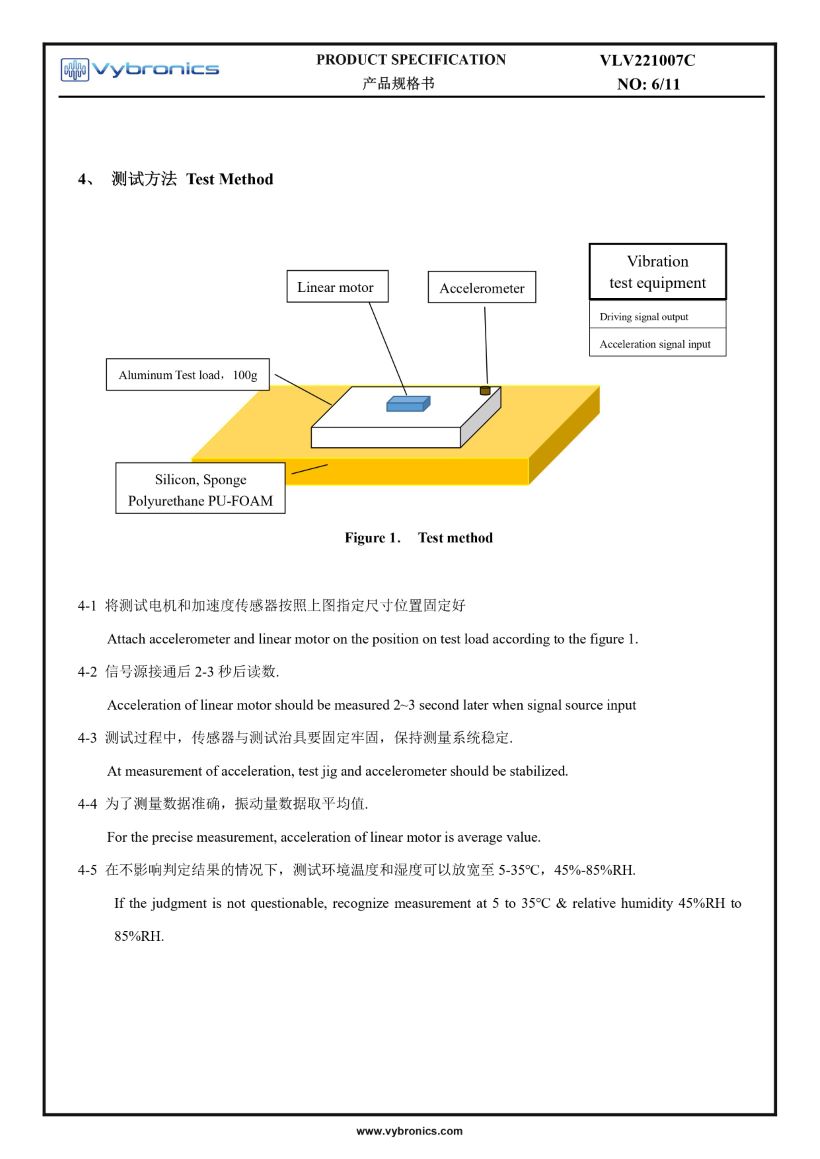

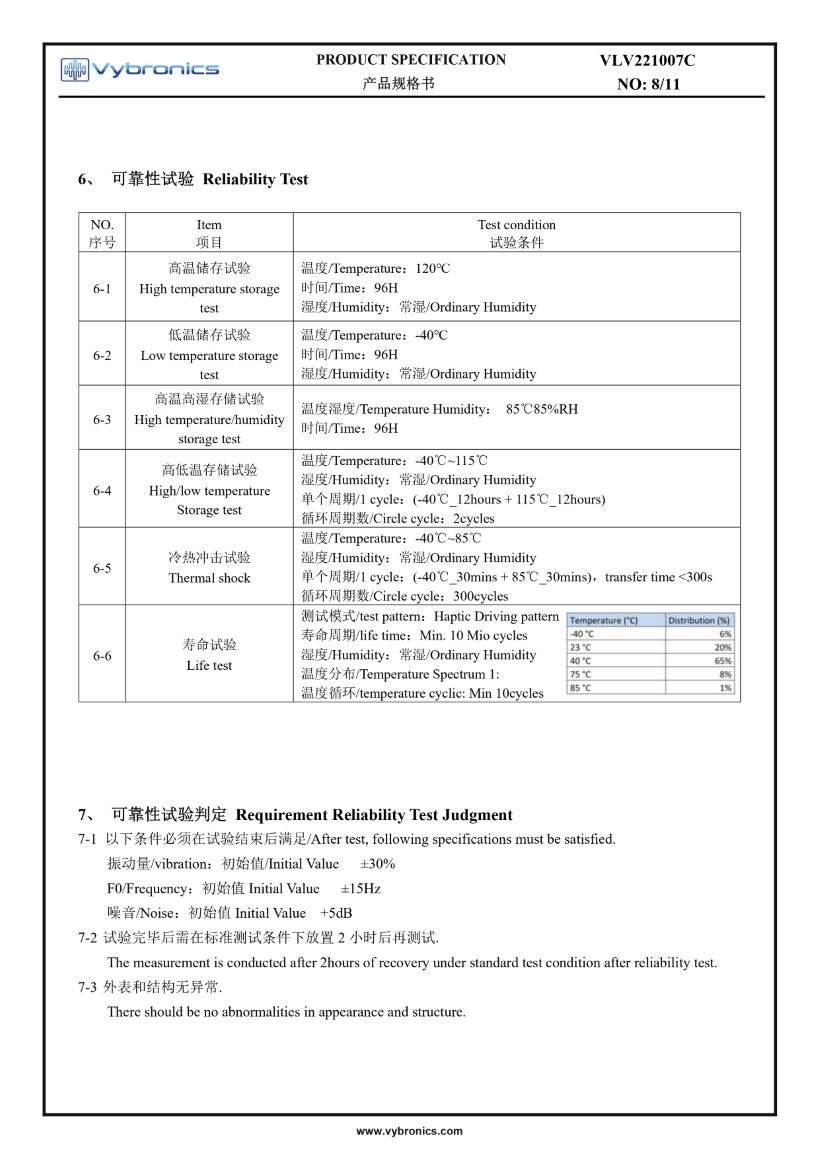

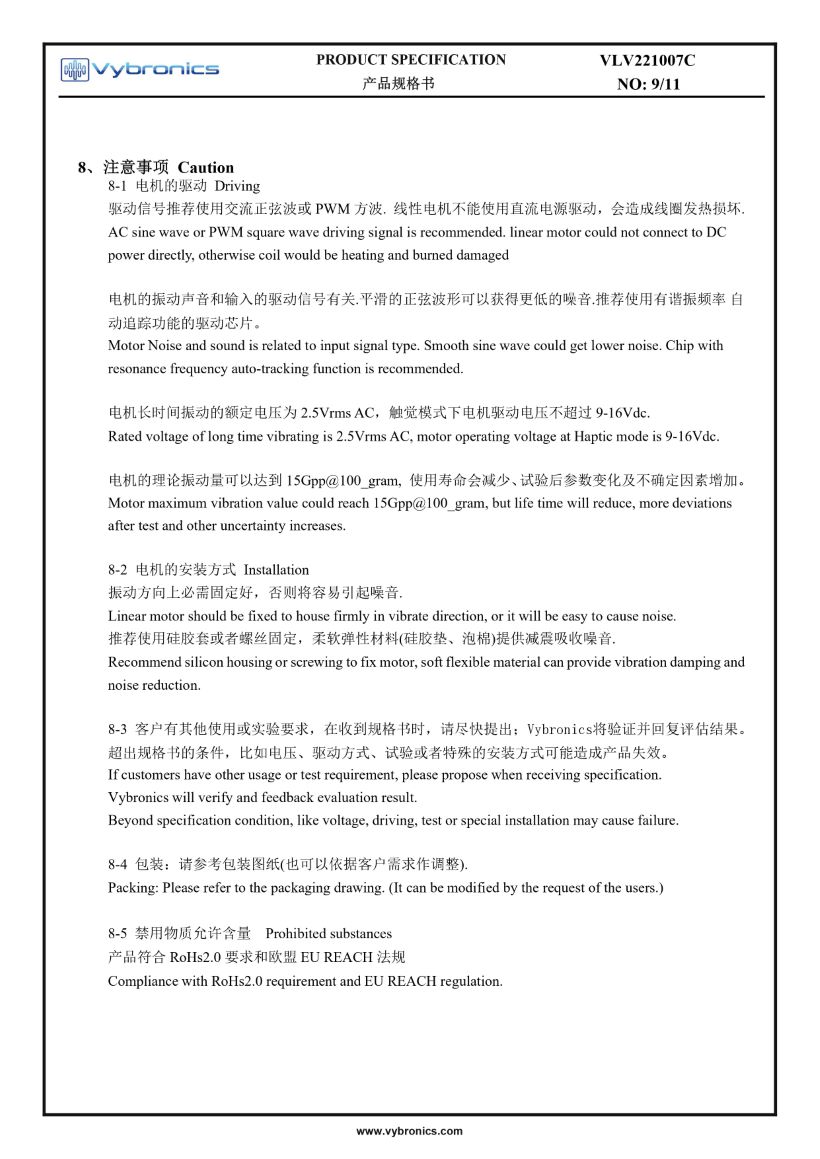

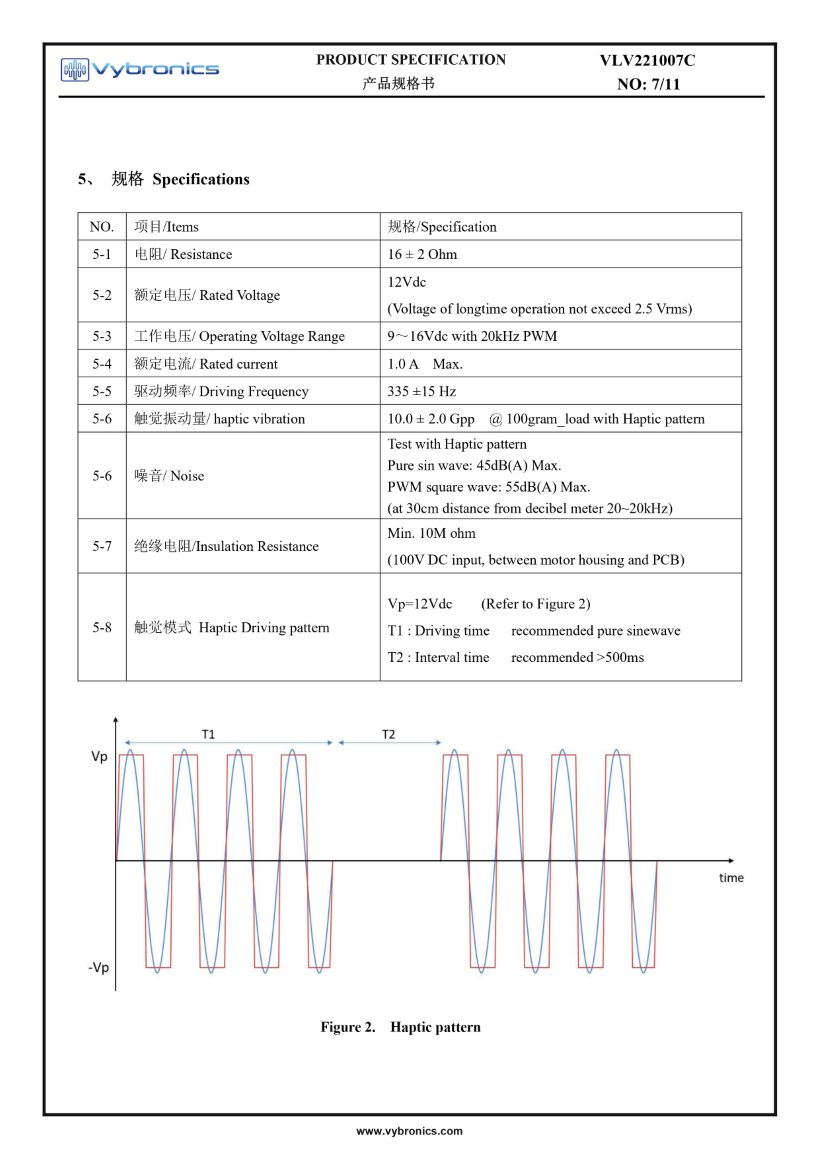

Vybronics VLV221007C Linear Resonant Actuator LRA Vibration Motor Data 05Vybronics VLV221007C Linear Resonant Actuator LRA Vibration Motor Data 06Vybronics VLV221007C Linear Resonant Actuator LRA Vibration Motor Data 07Vybronics VLV221007C Linear Resonant Actuator LRA Vibration Motor Data 08Vybronics VLV221007C Linear Resonant Actuator LRA Vibration Motor Data 09
