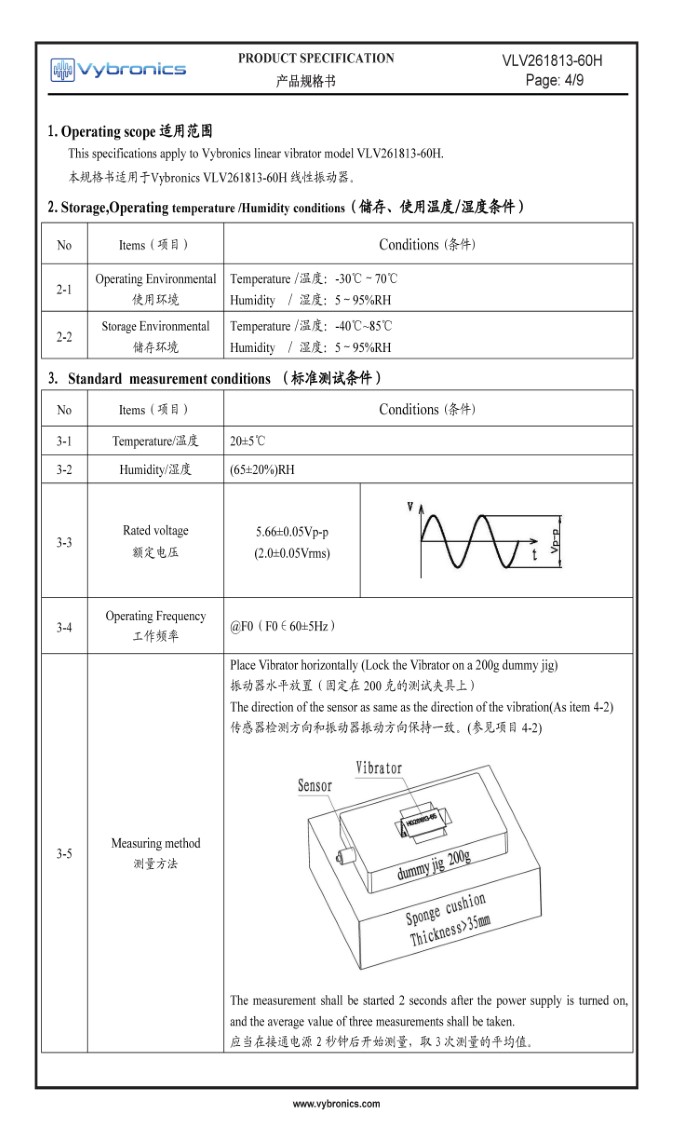

At 60 hz, this LRA has the lowest resonant frequency of any LRA currently in production. SEE Data sheet for acceleration when mounted on a 200g sled, value does not appear on the table since this measurements were not taken on a 100g sled. 100g sled test is pending. LRA is typically connected to a LRA driver IC which produces the AC drive signal for this device. For further comments about this see the BOTTOM of this page. We can supply this LRA as shown in the photo with FPC solder lands, wire leads with a length as per your request, or a custom FPC. Minimum quantities and tooling fees may apply. This LRA is NOT in mass production. Only samples are available. MOQ: 10K pcs to produce .
CLICK HERE to download the configuration file for RENESAS DA728x-EVAL-KIT.
| Summary Of Specifications | |
| Length (mm): | 26.0 |
| Width (mm): | 18.0 |
| Height (mm): | 13.0 |
| Rated Voltage (AC RMS): | 2.0 |
| Operating Voltage (AC RMS): | 0.1 ~ 2.10 |
| Rated Current MAX (mA): | 250 |
| Typical Current (mA): | 130 |
| Rise Time (ms) MAX *: | 40 |
| Fall Time (ms) MAX *: | 60 |
| Resonant Frequency: | 60 |
| Vibration Force (Grms): | 3.40 |
| * at 50% of Maximum G force | |
| Packaging Spec | |
| Part Packaging: | Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 4000 |
| Size - Master Box: | Call us |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4020 |
| 25% Exclusion Code: | 9903.88.69 |
| 25% Ex. Code Valid: | from June 15, 2024 thru May 31, 2025 |
|
If you need samples, please Contact Us. |
|||
|
This part is not authorized for Life Supporting Devices
