The VLV281813-65H has a resonant frequency of 65 hz and is typically driven by connecting it to a LRA driver IC which produces the AC drive signal. SEE Data sheet for acceleration when mounted on a 200g sled, value does not appear on the table since this measurements were not taken on a 100g sled. 100g sled test is pending. For further comments about this see the BOTTOM of this page. We can supply this LRA as shown in the photo with FPC solder lands, wire leads with a length as per your request, or a custom FPC. Minimum quantities and tooling fees may apply.
| Summary Of Specifications | |

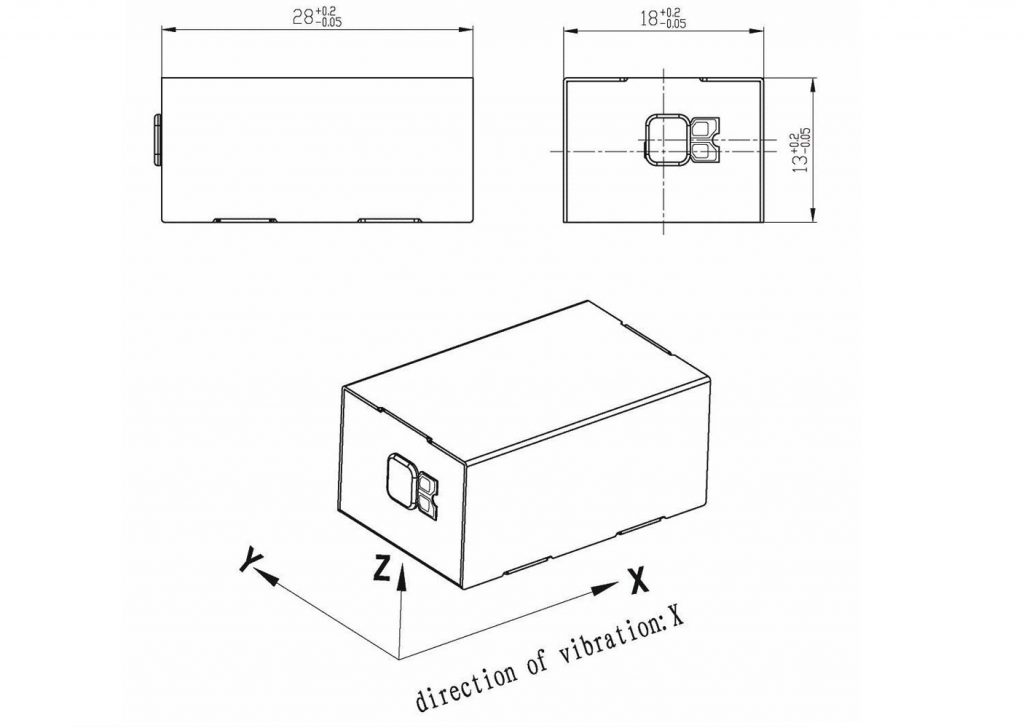

| Length (mm): | 28.0 |
| Width (mm): | 18.0 |
| Height (mm): | 13.0 |
| Rated Voltage (AC RMS): | 2.0 |
| Operating Voltage (AC RMS): | 0.1 ~ 2.10 |
| Rated Current MAX (mA): | 300 |
| Typical Current (mA): | 110 |
| Rise Time (ms) MAX *: | 40 |
| Fall Time (ms) MAX *: | 60 |
| Resonant Frequency: | 65 |
| Vibration Force (Grms): | 4.80 |
| * at 50% of Maximum G force | |
| Packaging Spec | |
| Part Packaging: | Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 4000 |
| Size - Master Box: | Call us |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4020 |
| 25% Exclusion Code: | 9903.88.69 |
| 25% Ex. Code Valid: | from June 15, 2024 thru May 31, 2025 |
|
If you need samples, please Contact Us. |
|||
|
This part is not authorized for Life Supporting Devices
