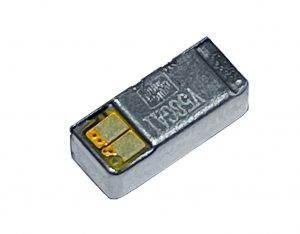

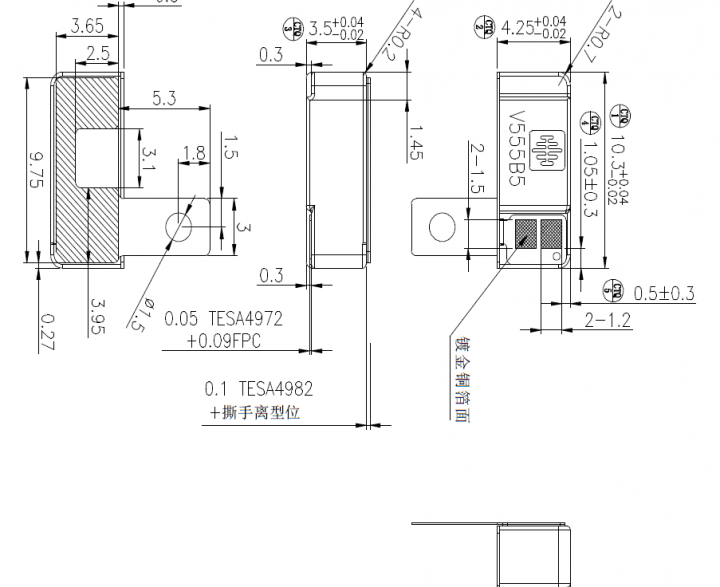

The VLV041035L-FP249 rectangular, Z-axis LRA can be used for a variety of haptic feedback applications. It is based on our popular VLV041235L. This LRA generates haptic feedback in the Z-axis and can be used for a variety of haptic feedback applications. This device is designed to be mounted on the inner shell of the products housing. PCB mounted contact springs or pogo pings mate with coin LRA's contacts pads. PCBA contact springs are made by TE as well as other companies. Like all LRA's this device is typically connected to a LRA driver IC which produces the AC drive signal for this device.
| Summary Of Specifications | |

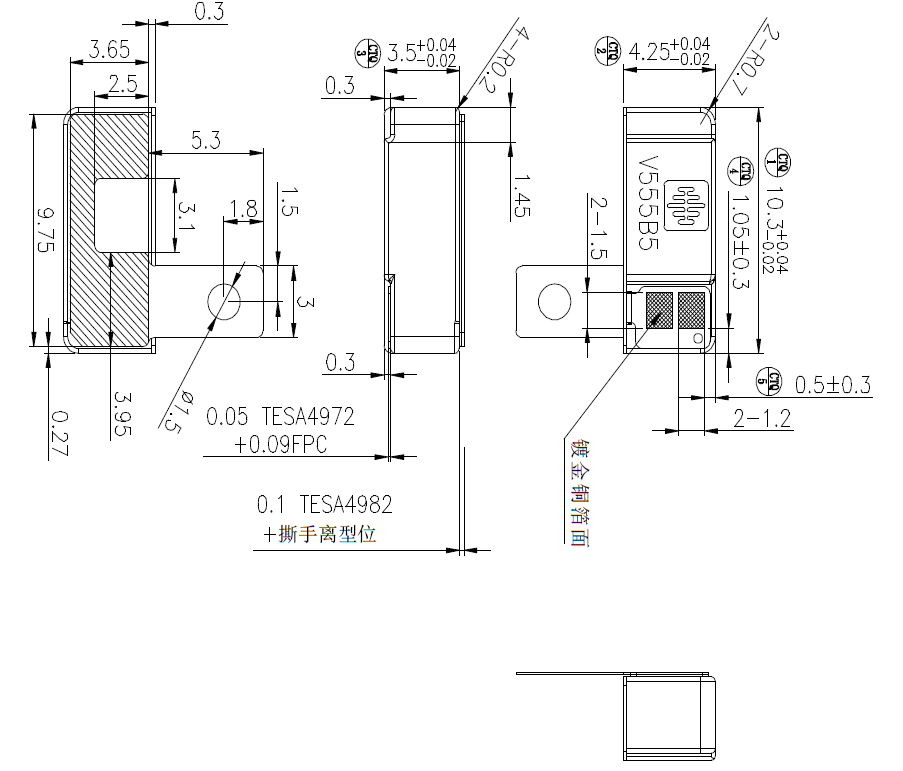

| Length (mm): | 10.0 |
| Width (mm): | 4.0 |
| Height (mm): | 3.5 |
| Rated Voltage (AC RMS): | 1.8 |
| Operating Voltage (AC RMS): | 0.1 ~ 1.85 |
| Rated Current MAX (mA): | 60 |
| Typical Current (mA): | |
| Rise Time (ms) MAX *: | 40 |
| Fall Time (ms) MAX *: | 60 |

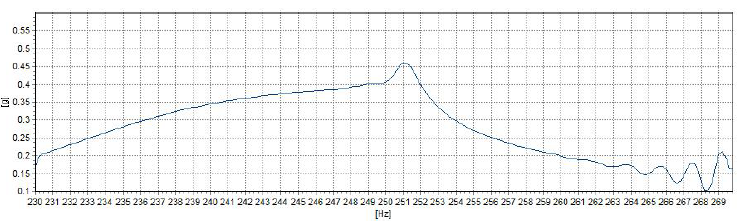

| Resonant Frequency: | 251 |
| Vibration Force (Grms): | 0.46 |
| * at 50% of Maximum G force | |
| Packaging Spec / Tariff Info | |
| Part Packaging: | Plastic Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 4000 |
| Size - Master Box: | 45*28*18CM |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4020 |
| 25% Exclusion Code: | 9903.88.69 |
| 25% Ex. Code Valid: | from June 15, 2024 thru Nov 29, 2025 |
| Country of Origin: | CHINA |
|
If you need samples, please Contact Us. |
|||
|
This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:
