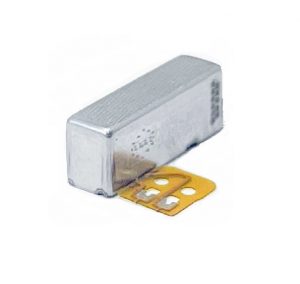

The VLV041455L-FP409 rectangular, Z-axis LRA can be used for a variety of haptic feedback applications. It is based on our popular VLV041235L. This LRA generates haptic feedback in the Z-axis and can be used for a variety of haptic feedback applications. This LRA generates haptic feedback in the Z-axis and can be used for a variety of haptic feedback applications. It has solderable contact pads on the FPC which allowing it to be connected directly to a PCB using a "hot bar soldering" machine. Like all LRA's this device is typically connected to a LRA driver IC which produces the AC drive signal for this device. A version of this LRA is also available with lead wires which can be connectorized. Custom FPC's are also available. NOTE: The 0.65 Grms noted in data sheet is measured with a Square Jig, not the normal 100g Rectangular Jig used by other LRA. When used with a standard rectangular jig, G force is 1.80 Grms .
| Summary Of Specifications | |

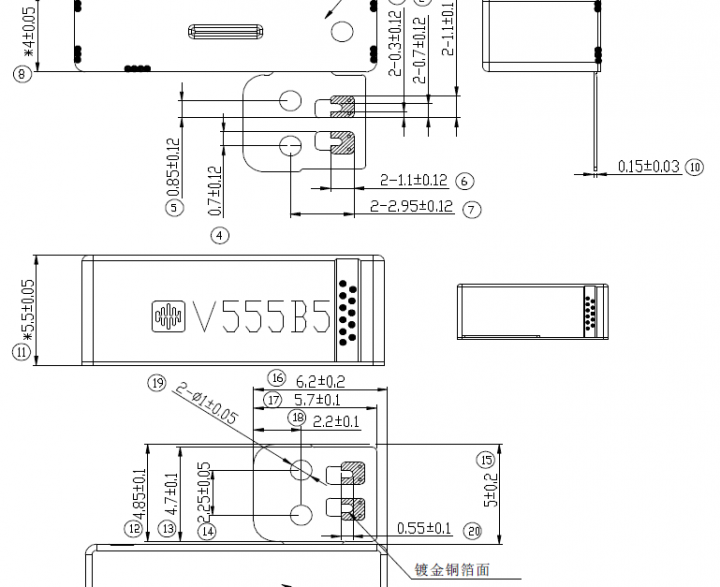

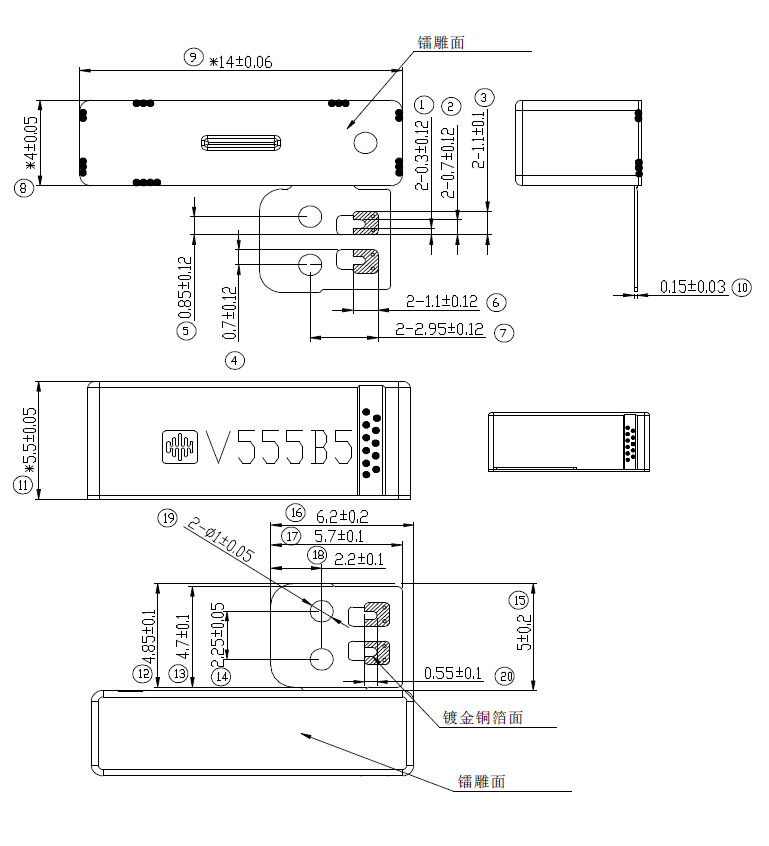

| Length (mm): | 14.0 |
| Width (mm): | 4.0 |
| Height (mm): | 5.5 |
| Rated Voltage (AC RMS): | 1.4 |
| Operating Voltage (AC RMS): | 0.1 ~ 1.45 |
| Rated Current MAX (mA): | 140 |
| Typical Current (mA): | 47 |
| Rise Time (ms) MAX *: | 50 |
| Fall Time (ms) MAX *: | 50 |

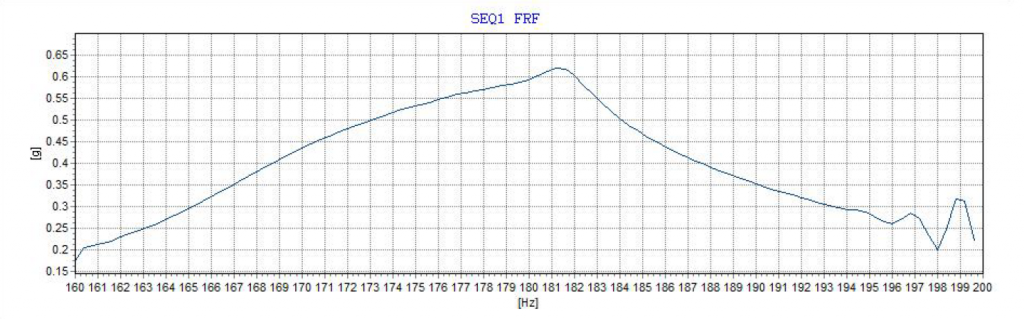

| Resonant Frequency: | 180 |
| Vibration Force (Grms): | 1.80 |
| * at 50% of Maximum G force | |
| Packaging Spec / Tariff Info | |
| Part Packaging: | Plastic Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 4000 |
| Size - Master Box: | 45*28*18CM |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4020 |
| 25% Exclusion Code: | 9903.88.69 |
| 25% Ex. Code Valid: | from June 14, 2024 thru Nov 10, 2026 |
| Country of Origin: | CHINA |
Available from
QTY In Stock: 0 pcs Contact Us for quotes on 2K+ pcs |
|||
|
This part is not authorized for Life Supporting Devices
