| Summary Of Specifications | |

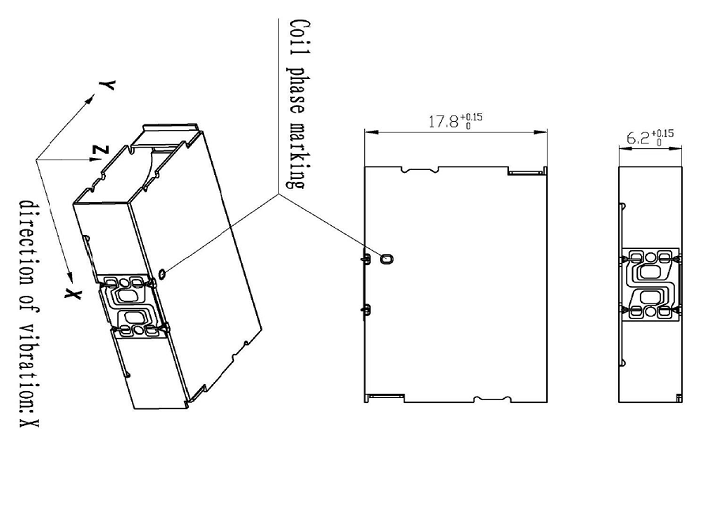

| Length (mm): | 26.0 |
| Width (mm): | 17.8 |
| Height (mm): | 6.2 |
| Rated Voltage (AC RMS): | 2.83 |
| Operating Voltage (AC RMS): | 0.1 ~ 6.0 |
| Rated Current MAX (mA): | 240 |
| Typical Current (mA): | 120 |
| Rise Time (ms) MAX *: | 50 |
| Fall Time (ms) MAX *: | 80 |

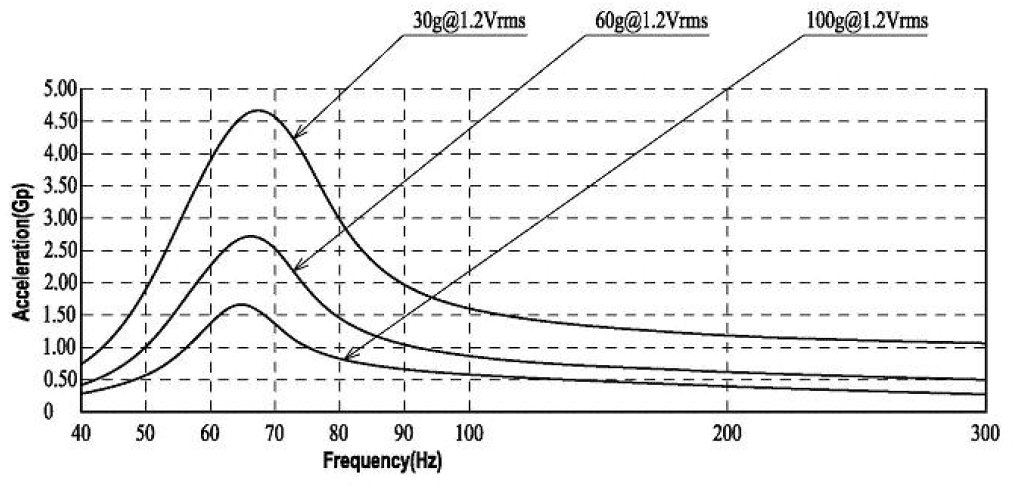

| Resonant Frequency: | 65 |
| Vibration Force (Grms): | 2.5 |
| * at 50% of Maximum G force | |
| Packaging Spec / Tariff Info | |
| Part Packaging: | Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 4000 |
| Size - Master Box: | Call us |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4020 |
| 25% Exclusion Code: | 9903.88.69 |
| 25% Ex. Code Valid: | from June 15, 2024 thru Nov 29, 2025 |
| Country of Origin: | CHINA |
|
If you need samples, please Contact Us. |
|||
|
