Vybronics VW0525AB001D
Model Number: VW0525AB001D
(old p/n: W0525AB001D)

5 mm x 2.5 mm | 3 V | BLDC Coin Vibration Motor

At a only 5mm diameter, this is the smallest BLDC brushless coin vibration motor on the market. Its low G force of 0.25 will limit its applications to very light weight wearables such as smart rings and light weight watches etc. Double stick tape on the bottom of the case facilitates mounting. A driver IC is built imbedded within the coin motor. No external driver IC is required. Voltage polarity must be observed or you will damage the internal driver IC.   This device operates on DC voltage only.  A  PWM signal can not be used to drive BLDC motors. MOQ: 2K pcs, we can supply the lead lengths, foam pads of varied thicknesses or a variety of connectors. For MOQ: 10K pcs custom FPC's can be fabricated.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BLDC
Diameter (mm): 5.0
Thickness (mm): 2.5
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.7~3.3
Rated Current MAX (mA): 80
Typical Current (mA): 77
Rise Time (ms) MAX *: 70
Fall Time (ms) MAX *: 90
Rated Speed (rpm, MIN): 11000
Vibration Force (Grms): 0.25
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 5000
Size - Master Box: 51*35*17.5CM
Weight - Master Box: 5.2KG
ECCN: EAR99
USA HTS TARIFF: 8501.10.4040
25% Exclusion Code: None
25% Ex. Code Valid: None
Samples
Available from
DigiKey Logo
Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VW0525AB001D (old p/n W0525AB001D) BLDC Brushless Coin Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

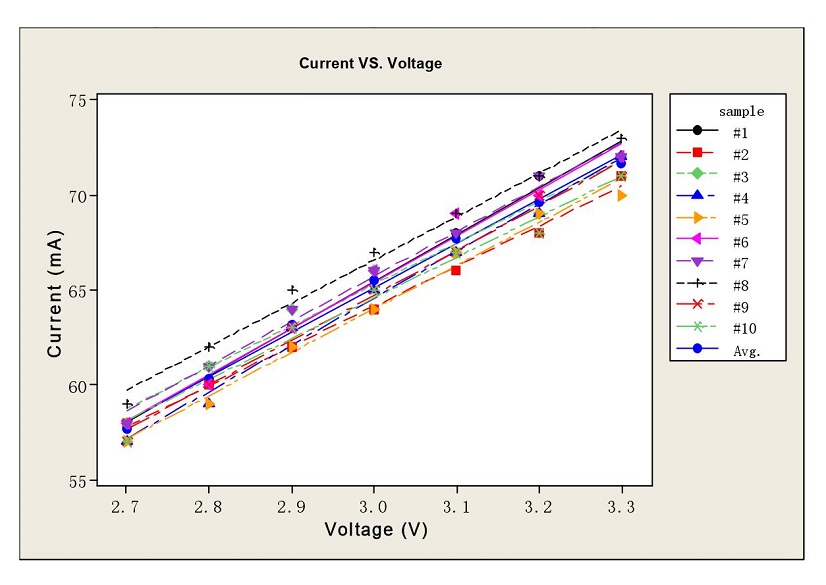

W0525AB001D VW0525AB001D, Speed VS. VoltageW0525AB001D VW0525AB001D, Current VS. VoltageW0525AB001D VW0525AB001D, Vibration VS. VoltageVW0525AB001D (old p/n W0525AB001D) BLDC Brushless Coin Motor data 04VW0525AB001D (old p/n W0525AB001D) BLDC Brushless Coin Motor data 05VW0525AB001D (old p/n W0525AB001D) BLDC Brushless Coin Motor data 06VW0525AB001D (old p/n W0525AB001D) BLDC Brushless Coin Motor data 07VW0525AB001D (old p/n W0525AB001D) BLDC Brushless Coin Motor data 08VW0525AB001D (old p/n W0525AB001D) BLDC Brushless Coin Motor data 11VW0525AB001D (old p/n W0525AB001D) BLDC Brushless Coin Motor data 12VW0525AB001D (old p/n W0525AB001D) BLDC Brushless Coin Motor data 13

VW0525AB001D (old p/n W0525AB001D) BLDC Brushless Coin Motor data 14
