Model Number: VW0625SS001D
(old p/n: W0625SS001D)

6 mm x 2.5 mm | 3 V | Spring | BLDC Coin Vibration Motor

Our VW0625SS001D brushless BLDC coin vibration motor uses helical spring contacts which are designed to mate with corresponding contact pads on the PCB. This motors brushless design makes it ideal for Hi-Rel applications or those with high duty cycles. A driver IC is built imbedded within the motor, so no external driver IC is required. Simply apply DC voltage as you would a normal brushed DC motor. Voltage polarity must be observed or you will damage the internal driver IC. Since reflow solderable SMD coin vibration motors are not yet available, a BLDC coin vibration motor like this, with spring contacts, can be used to streamline the assembly process by eliminating the need for soldering wires.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BLDC
Diameter (mm): 6.0
Thickness (mm): 2.5
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.7~3.3
Rated Current MAX (mA): 90
Typical Current (mA): 67
Rise Time (ms) MAX *: 70
Fall Time (ms) MAX *: 90
Rated Speed (rpm): 15000
Vibration Force (G): 0.55
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 120
Quantity - Master box: 12000
Size - Master Box: 44*39*16.5CM
Weight - Master Box: 7.9KG
ECCN: EAR99
USA HTS Tarrif: 8501.10.4060
USA 25% Exemption: NONE
Samples
Available from
DigiKey Logo
Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VW0625SS001D (old p/n W0625SS001D) BLDC Bushless Coin Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

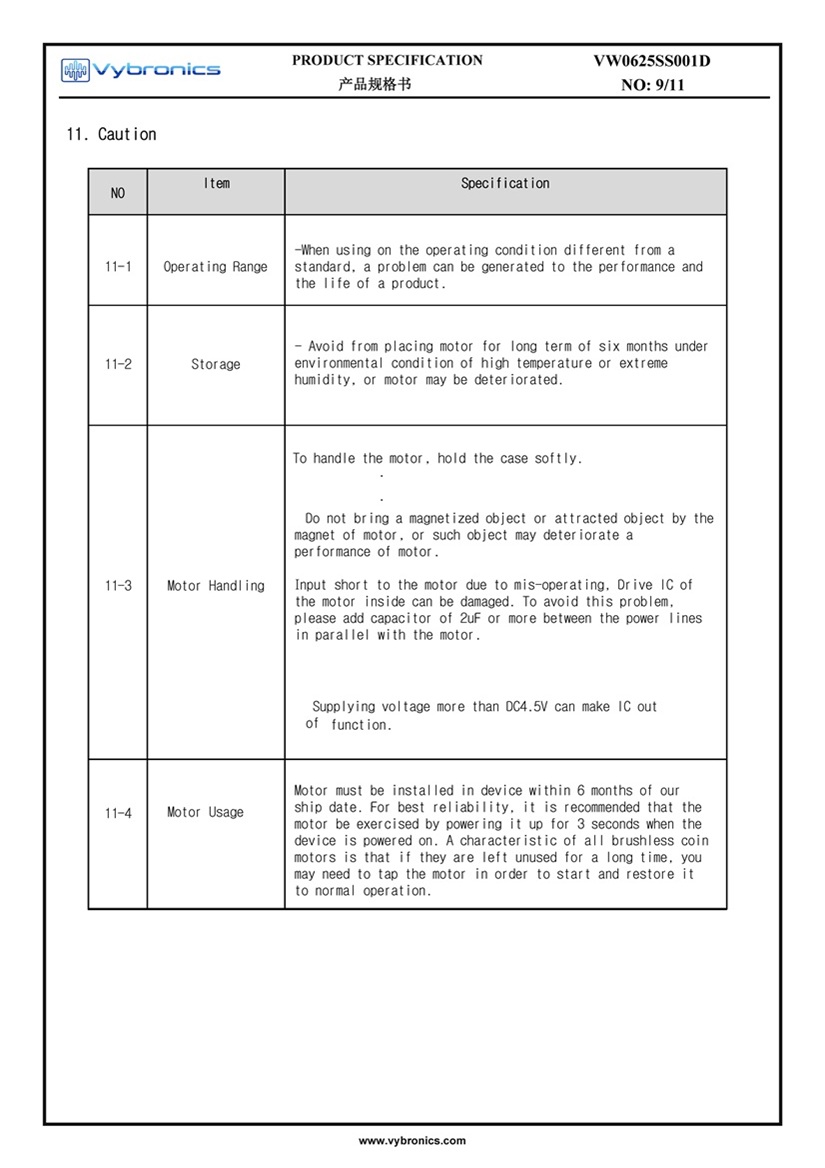

VW0625SS001D (old p/n W0625SS001D) BLDC Bushless Coin Vibration Motor data 04VW0625SS001D (old p/n W0625SS001D) BLDC Bushless Coin Vibration Motor data 05VW0625SS001D (old p/n W0625SS001D) BLDC Bushless Coin Vibration Motor data 06
