Vybronics VW0825AB002G
Model Number: VW0825AB002G

8 mm x 2.5 mm | 3 V | BLDC Coin Vibration Motor

The VW0825AB002G brushless BLDC coin vibration motor is ideal for Hi-Rel applications or those with high duty cycles.  For easy of assembly, it features contact pads that are designed to mate with PCB mounted contact springs.   If you need wire leads, you can solder wires to these contact pads, however the wire must be thin and flexible (UL3302  AWG 32 /34) else the adhesive holding the FPC to the metal base may separate and the FPC lift upward.  An driver IC is imbedded inside the motor so an external driver IC is not required.  Apply DC voltage as you would a normal brushed DC motor.   Voltage polarity must be observed or you will damage the internal driver IC. This device operates on DC voltage only. A PWM signal can not be used to drive BLDC motors.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BLDC
Diameter (mm): 8.0
Thickness (mm): 2.5
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.7~3.3
Rated Current MAX (mA): 80
Typical Current (mA): 67
Rise Time (ms) MAX *: 70
Fall Time (ms) MAX *: 90
Rated Speed (rpm): 13500
Vibration Force (Grms): 1.00
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 5000
Size - Master Box: 51*35*17.5CM
Weight - Master Box: 7.6KG
ECCN: EAR99
USA HTS TARIFF: 8501.10.4040
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025


If you need samples,
please Contact Us.
Add To Favorite List
VW0825AB002G BLDC Bushless Coin Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

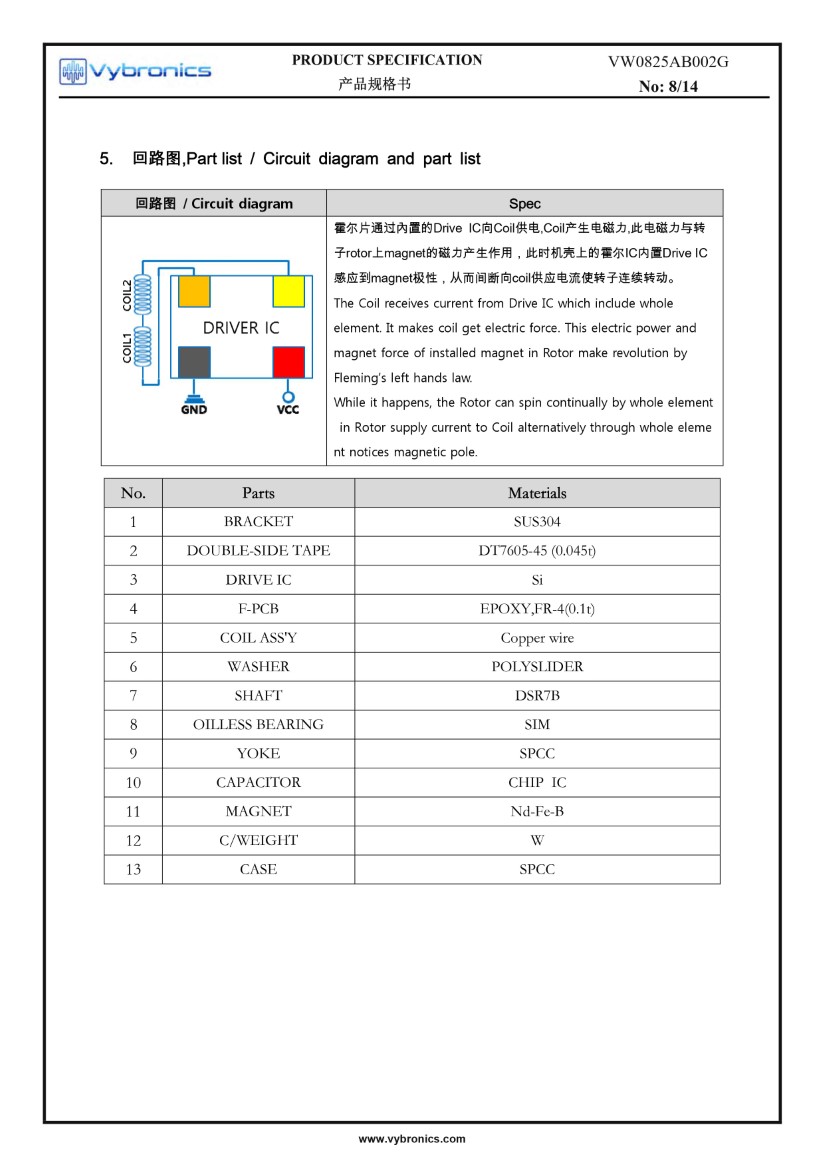

VW0825AB002G BLDC Bushless Coin Vibration Motor data 04VW0825AB002G BLDC Bushless Coin Vibration Motor data 05VW0825AB002G BLDC Bushless Coin Vibration Motor data 06VW0825AB002G BLDC Bushless Coin Vibration Motor data 07VW0825AB002G BLDC Bushless Coin Vibration Motor data 08VW0825AB002G BLDC Bushless Coin Vibration Motor data 11VW0825AB002G BLDC Bushless Coin Vibration Motor data 12VW0825AB002G BLDC Bushless Coin Vibration Motor data 13

VW0825AB002G BLDC Bushless Coin Vibration Motor data 14
