Please use this drop-in replacement: VG0825001D

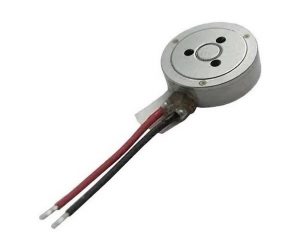

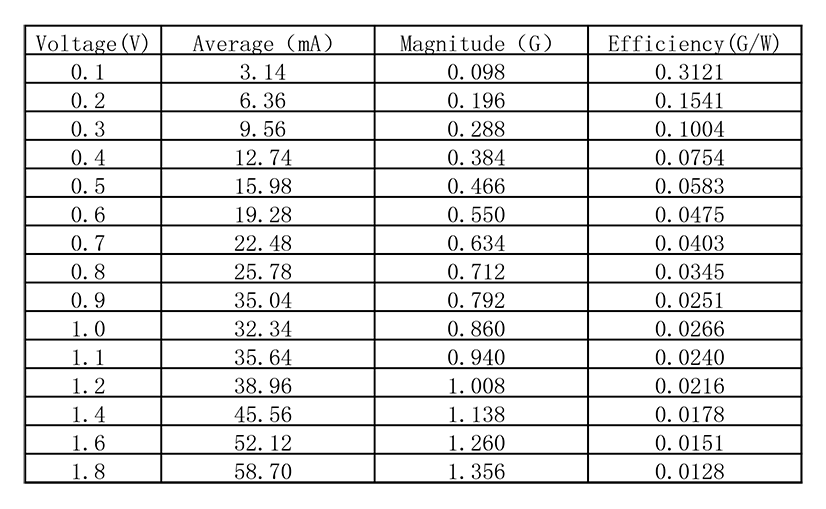

Our VG0825001 is the smallest LRA coin vibration motor on the market. Its Z-Axis vibration and low current characteristics make it an excellent choice for wearables. It draws only 19 ma @ 0.6 V while producing a G force of 0.45 . A linear resonant actuator driver IC such as the TI DRV2605 is required. Double stick adhesive, rubber foam pads and custom lead wire lengths are available. Custom FPC are also available for orders of 10K pcs+.
CLICK HERE to see photos of how coin motors have been mounted in products.

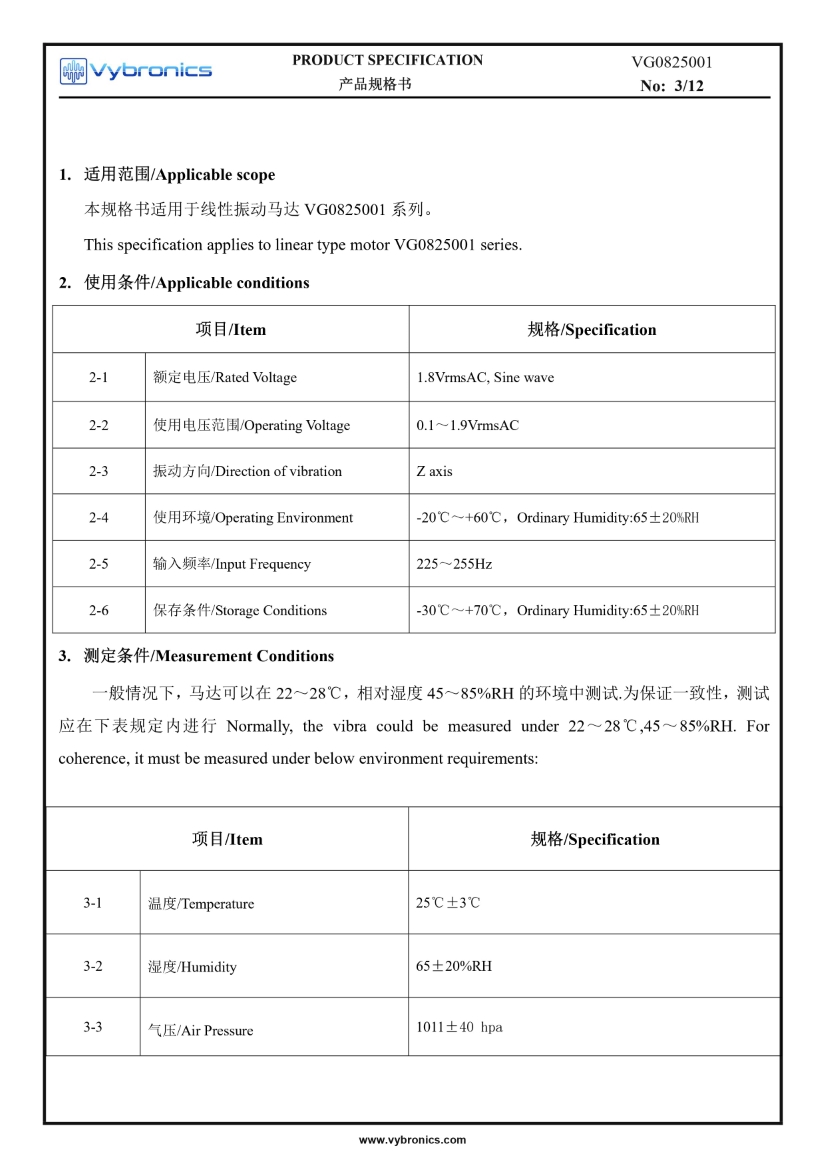

| Summary Of Specifications | |
| Technology Type: | LRA |

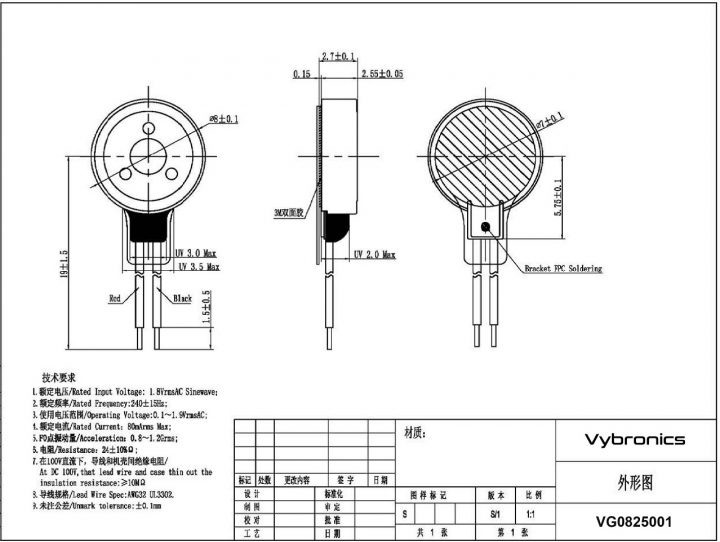

| Diameter (mm): | 8.0 |
| Thickness (mm): | 2.5 |
| Rated Voltage (Vac RMS): | 1.8 |
| Operating Voltage (Vac RMS): | 0.1~1.9 |
| Rated Current MAX (mA): | 80 |
| Typical Current (mA): | 68 |

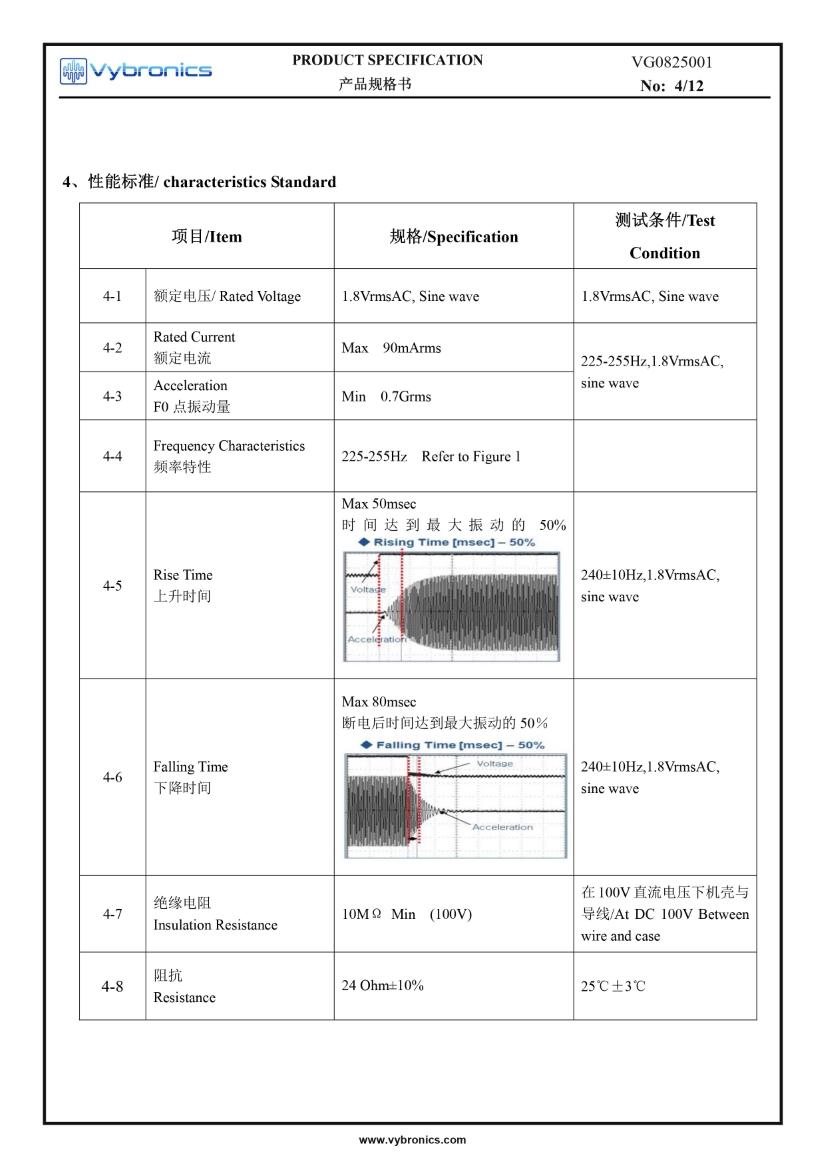

| Rise Time (ms) MAX *: | 50 |
| Fall Time (ms) MAX *: | 80 |

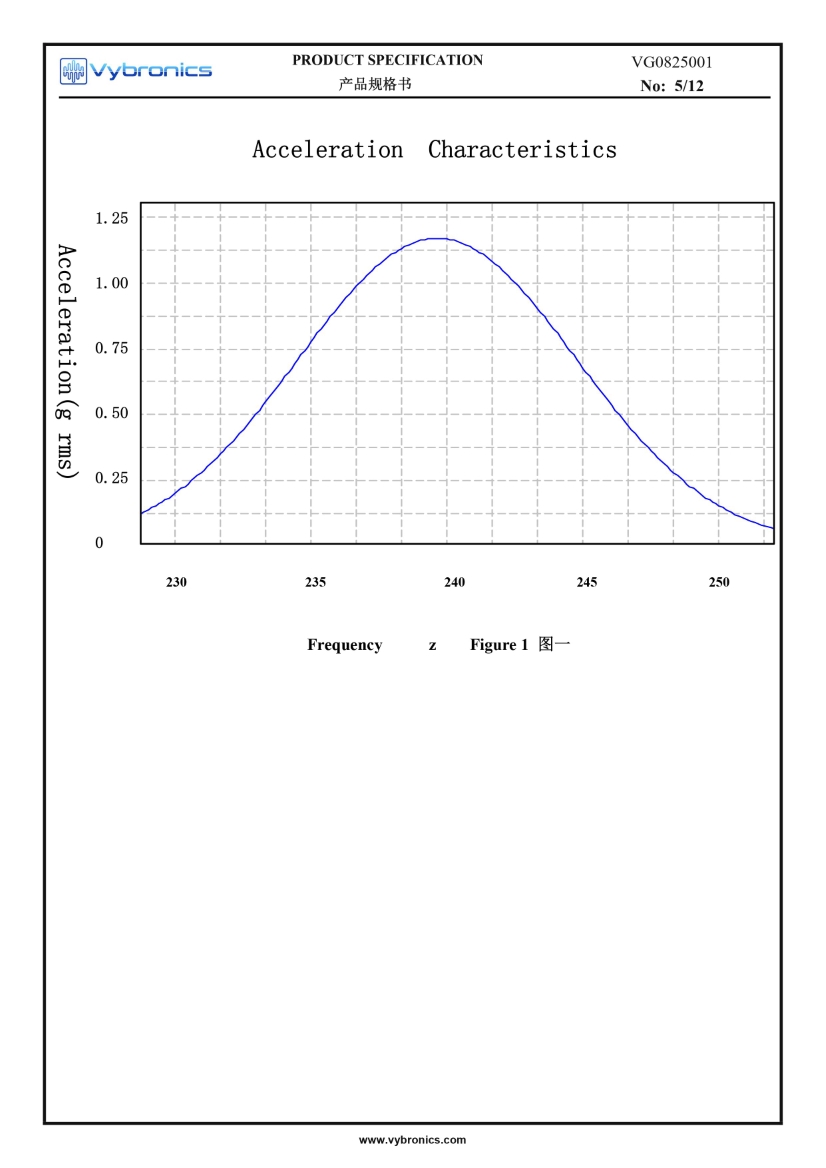

| Resonant Frequency: | 240 |
| Vibration Force (Grms): | 0.75 |
| * at 50% of Maximum G force | |
| Packaging Spec / Tariff Info | |
| Part Packaging: | Plastic Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 4000 |
| Size - Master Box: | 46*28.5*16CM |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4020 |
| 25% Exclusion Code: | 9903.88.69 |
| 25% Ex. Code Valid: | from June 14, 2024 thru Nov 10, 2026 |
| Country of Origin: | CHINA |
Available from
QTY In Stock: 0 pcs Contact Us for quotes on 2K+ pcs |
|||
|
This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:
