KOTL JInlong G0825001D
Model Number: VG0825001D
(old p/n: G0825001D)

8 mm x 2.5 mm | 1.2 Vrms | 240hz | LRA Z-Axis

Our VG0825001D is the smallest LRA coin vibration motor on the market. Its Z-Axis vibration and low current characteristics make it an excellent choice for wearables. It draws only 19 ma @ 0.6 V while producing a G force of 0.45 . A linear resonant actuator driver IC such as the TI DRV2605 is required. Double stick adhesive, rubber foam pads and custom lead wire lengths are available. Custom FPC are also available for orders of 10K pcs+.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: LRA
Diameter (mm): 8.0
Thickness (mm): 2.55
Rated Voltage (Vac RMS): 1.2
Operating Voltage (Vac RMS): 0.1~1.2
Rated Current MAX (mA): 60
Typical Current (mA): 48
Rise Time (ms) MAX *: 50
Fall Time (ms) MAX *: 50
Resonant Frequency: 240
Vibration Force (G): 1.05
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 5000
Size - Master Box: 51*35*17.5CM
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4020
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: 12 OCT 21 to
31 DEC 22
Samples
Available from
DigiKey Logo
Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VG0825001D (old p/n G0825001D) smallest LRA coin vibration motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

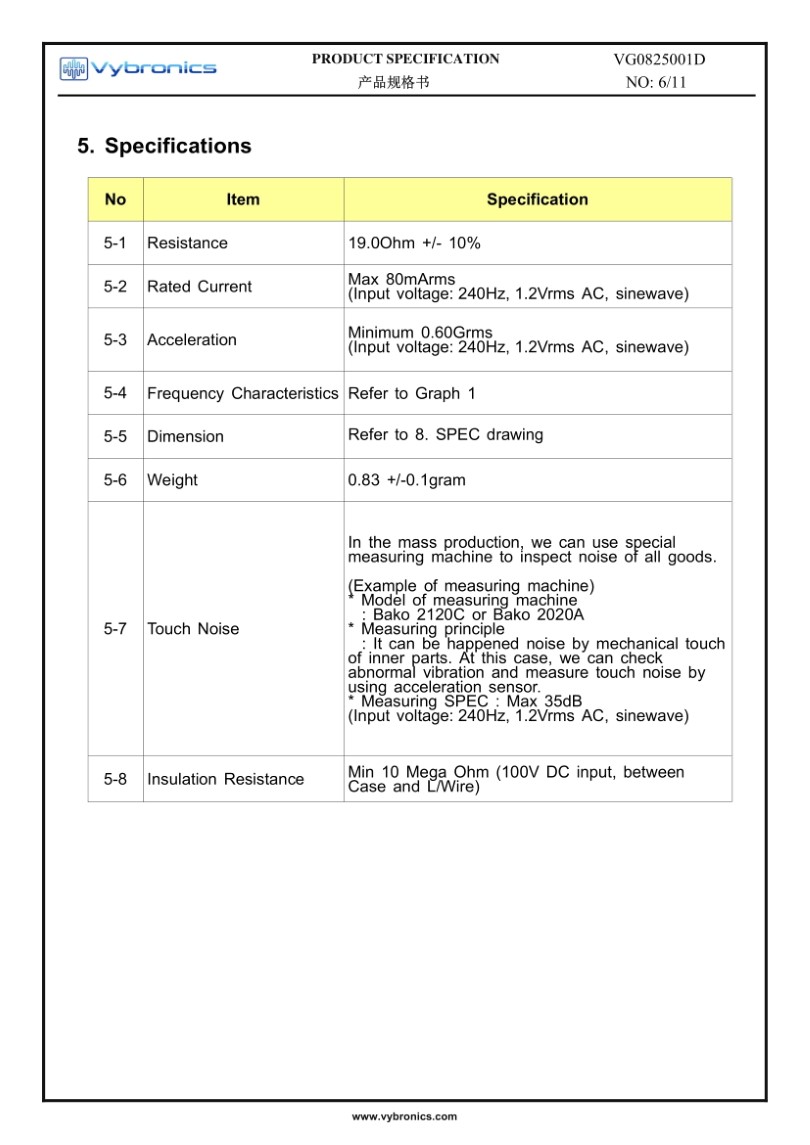

VG0825001D (old p/n G0825001D) smallest LRA coin vibration motor data 04VG0825001D (old p/n G0825001D) smallest LRA coin vibration motor data 05VG0825001D (old p/n G0825001D) smallest LRA coin vibration motor data 06VG0825001D (old p/n G0825001D) smallest LRA coin vibration motor data 07VG0825001D (old p/n G0825001D) smallest LRA coin vibration motor data 08VG0825001D (old p/n G0825001D) smallest LRA coin vibration motor data 09
