Vybronics VG0825001U
Model Number: VG0825001U

8 mm x 2.5 mm | 1.2 Vrms | 240hz | LRA Z-Axis

Our VG0825001U is the snallest 8mm diameter LRA coin vibration motor on the market.  This part replaces the VG0825001D.    which is now EOL.    The internal spring assembly has been redesigned to use fewer internal parts and higher production yield.   Its Z-Axis vibration and low current characteristics make it an excellent choice for wearables.  For best performance, a linear resonant actuator driver IC  with "Auto Resonance Tracking" enabled must be used.  Double stick adhesive, rubber foam pads and custom lead wire lengths are available. Custom FPC are also available for orders of 10K pcs+.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: LRA
Diameter (mm): 8.0
Thickness (mm): 2.55
Rated Voltage (Vac RMS): 1.2
Operating Voltage (Vac RMS): 0.1~1.25
Rated Current MAX (mA): 80
Typical Current (mA): 66
Rise Time (ms) MAX *: 50
Fall Time (ms) MAX *: 80
Resonant Frequency: 240
Vibration Force (Grms): 0.70
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4020
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: thru May 31 2024


If you need samples,
please Contact Us.
Add To Favorite List
ROHS ICON
No report is available. Contact us for info

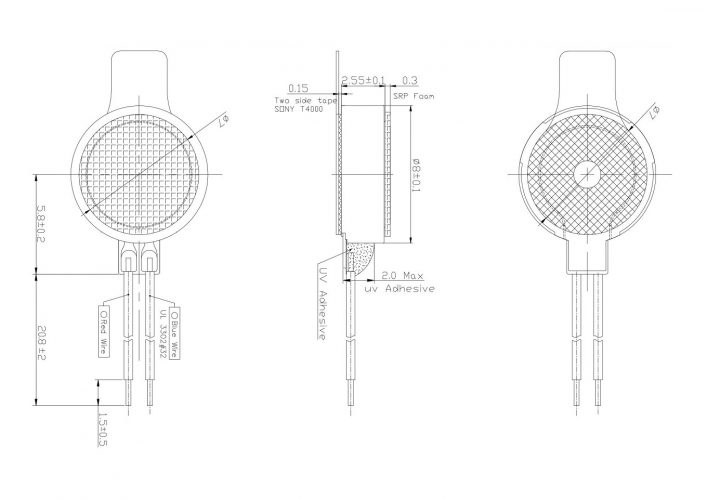

VG0825002U LRA coin vibration motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.



VG0825002U LRA coin vibration motor Data 04VG0825002U LRA coin vibration motor Data 05VG0825002U LRA coin vibration motor Data 06VG0825002U LRA coin vibration motor Data 07VG0825002U LRA coin vibration motor Data 08VG0825002U LRA coin vibration motor Data 09VG0825002U LRA coin vibration motor Data 10
