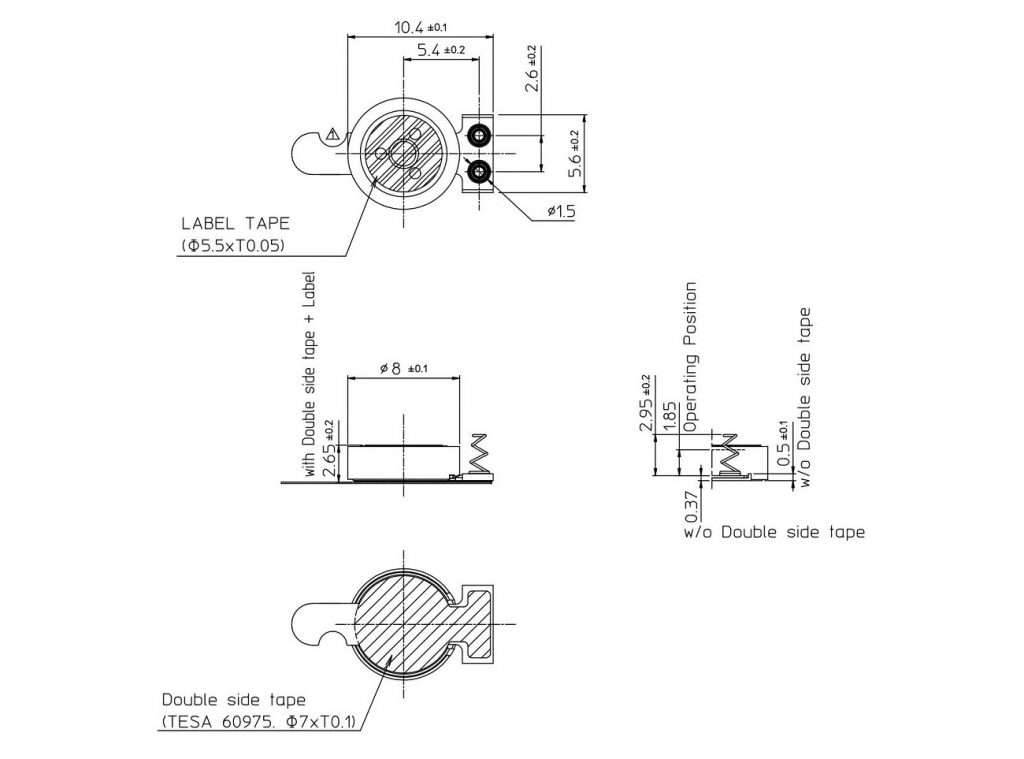

The VG0825002D is the spring contact version of our VG0825001D linear resonant actuator. It uses helical spring contacts and are designed to mate with corresponding contacts pads on the PCB. The motor has double stick tape on one side that can be used to secure it to the products housing. A hole can be cut in the PCB, allowing it to be situated in the middle of the board. Since reflow solderable SMD versions of this part are not yet available, a coin vibration motor like this can be used to streamline the assembly process by eliminating the need for soldering wires. Do not solder wires to the springs.
CLICK HERE to see photos of how coin motors have been mounted in products.

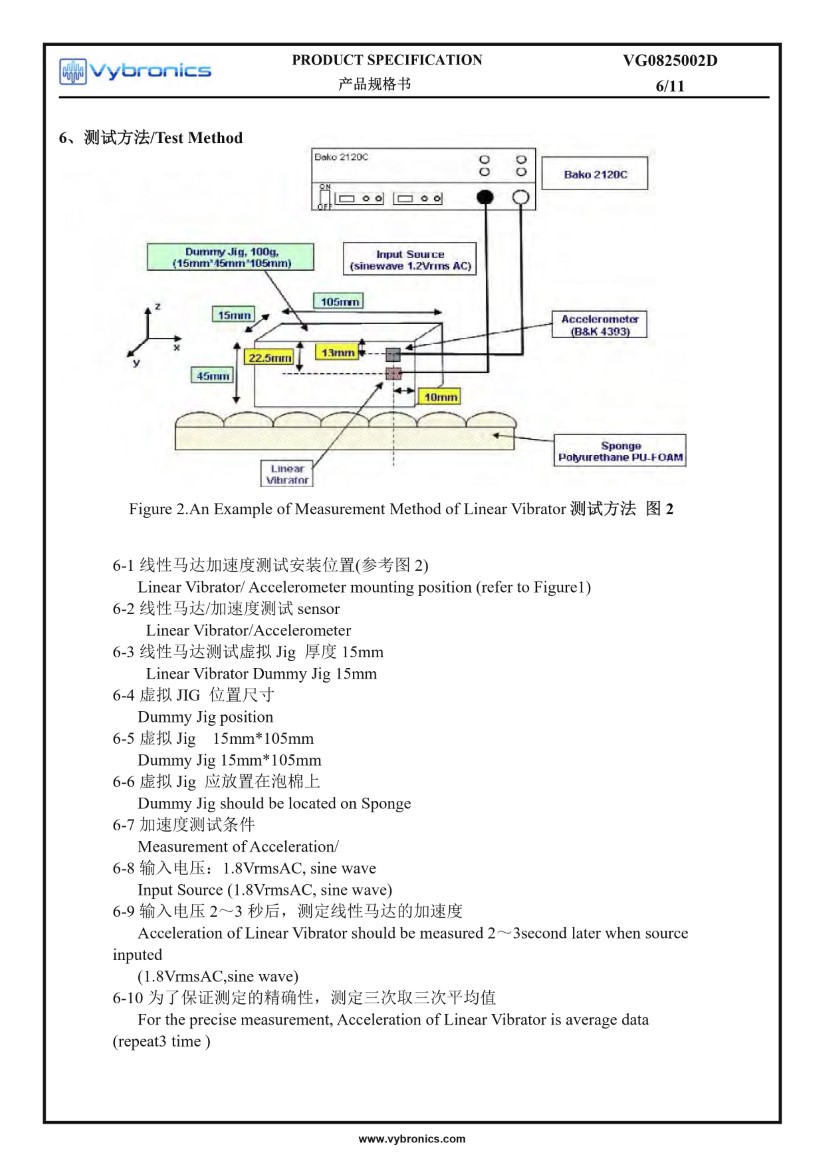

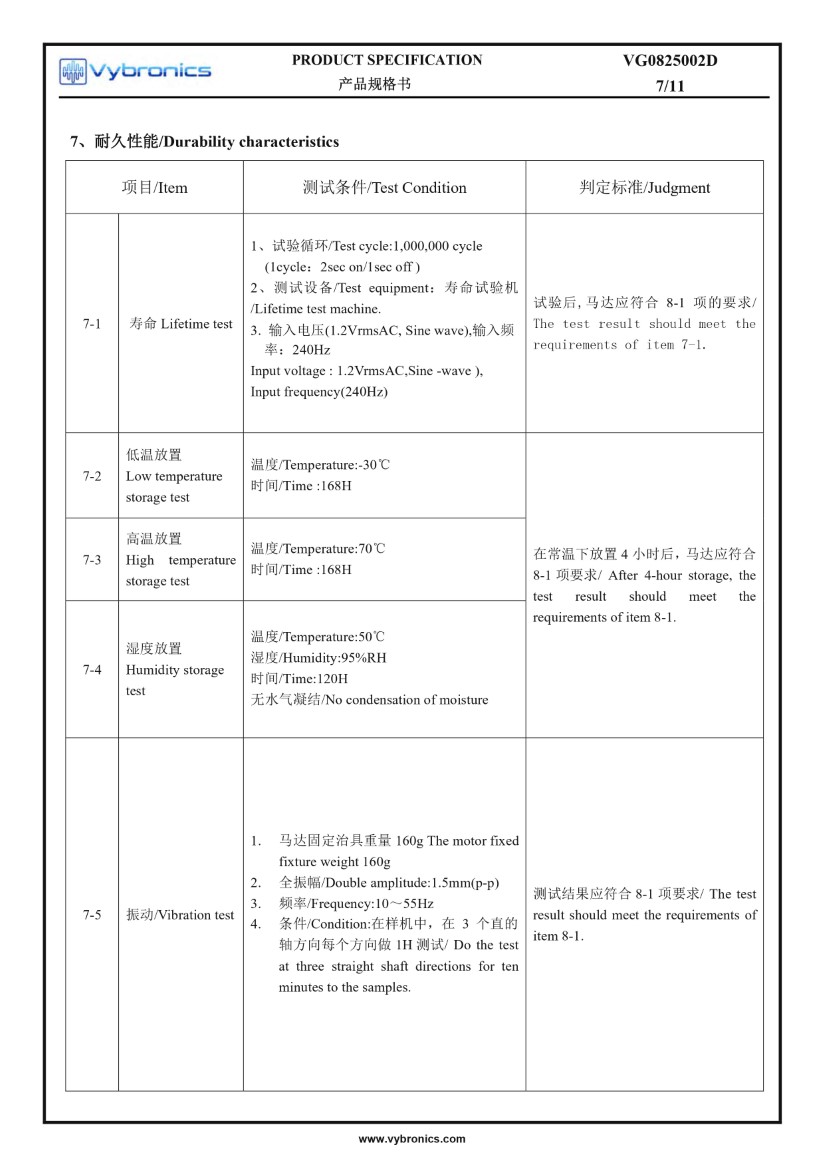

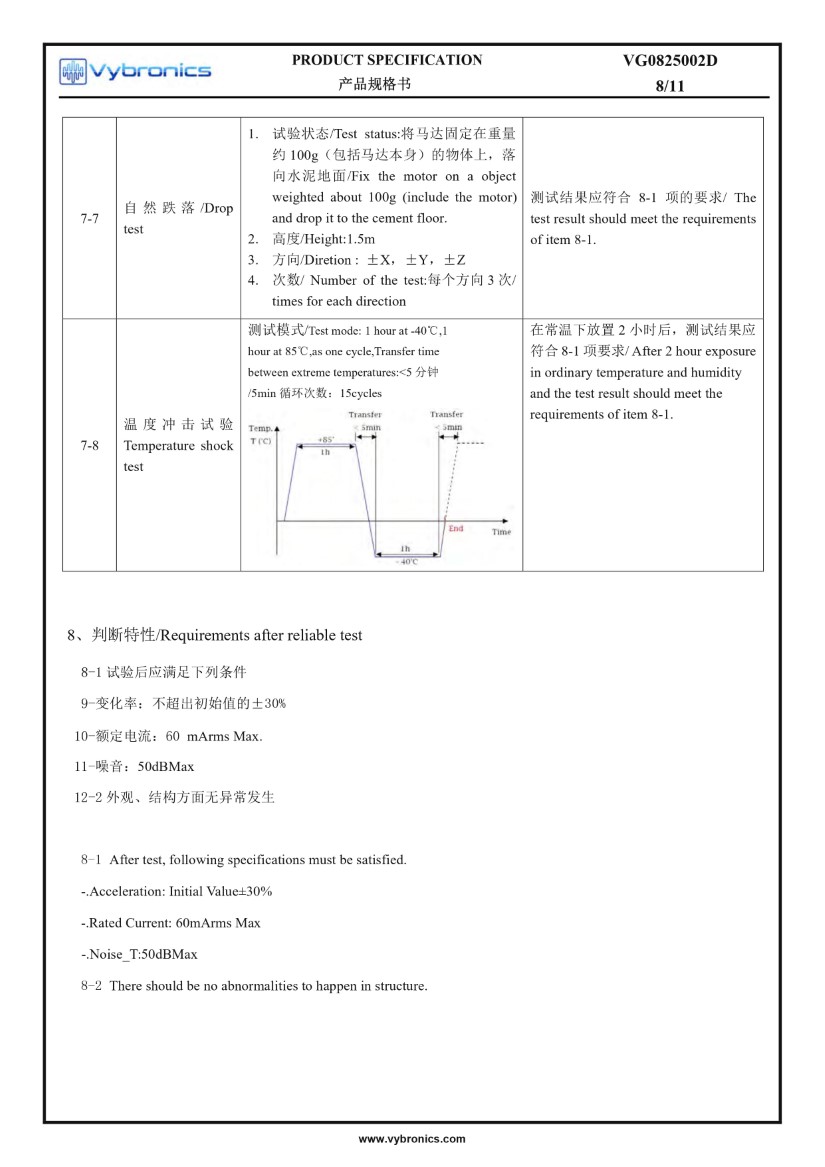

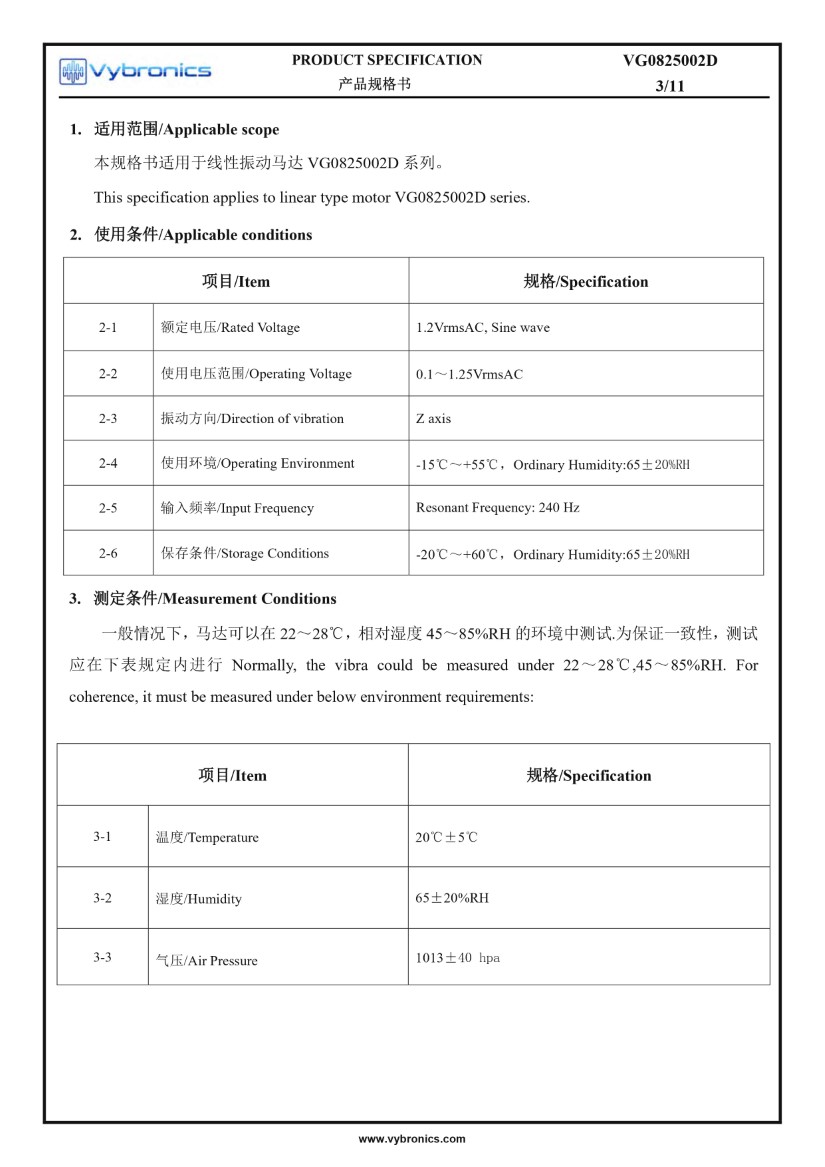

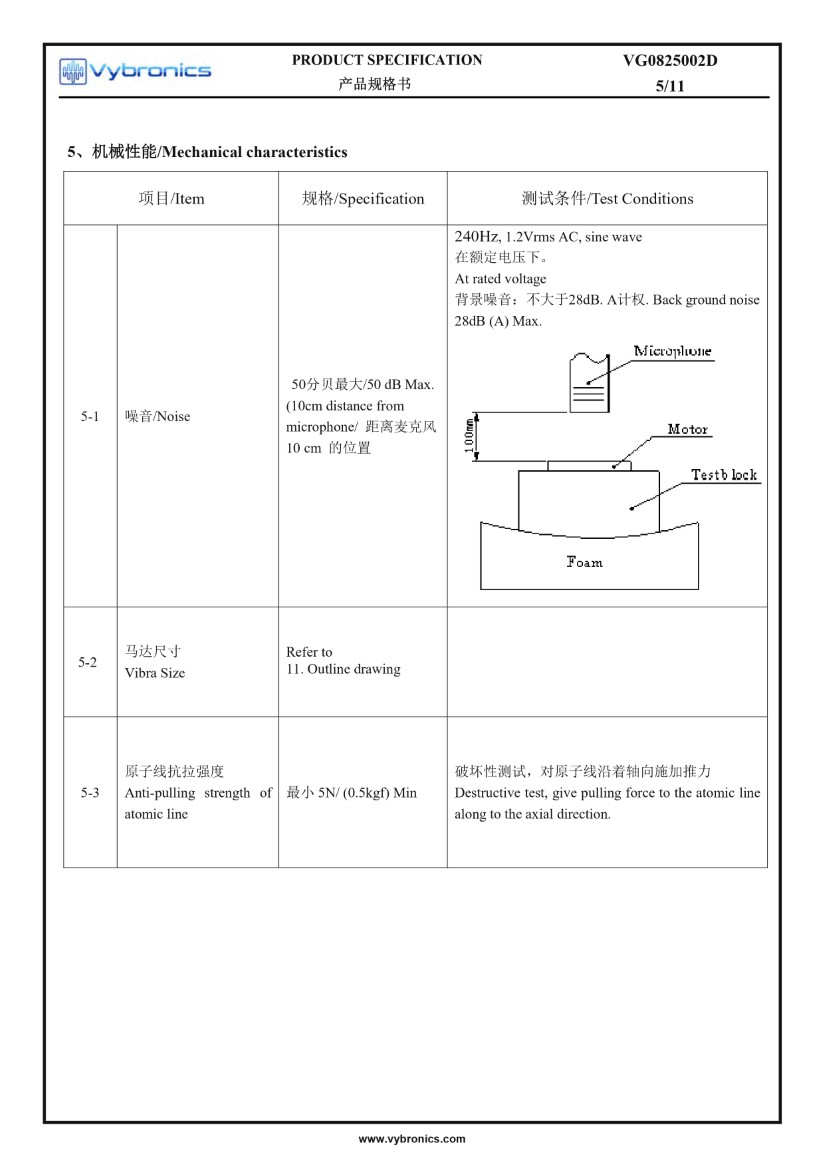

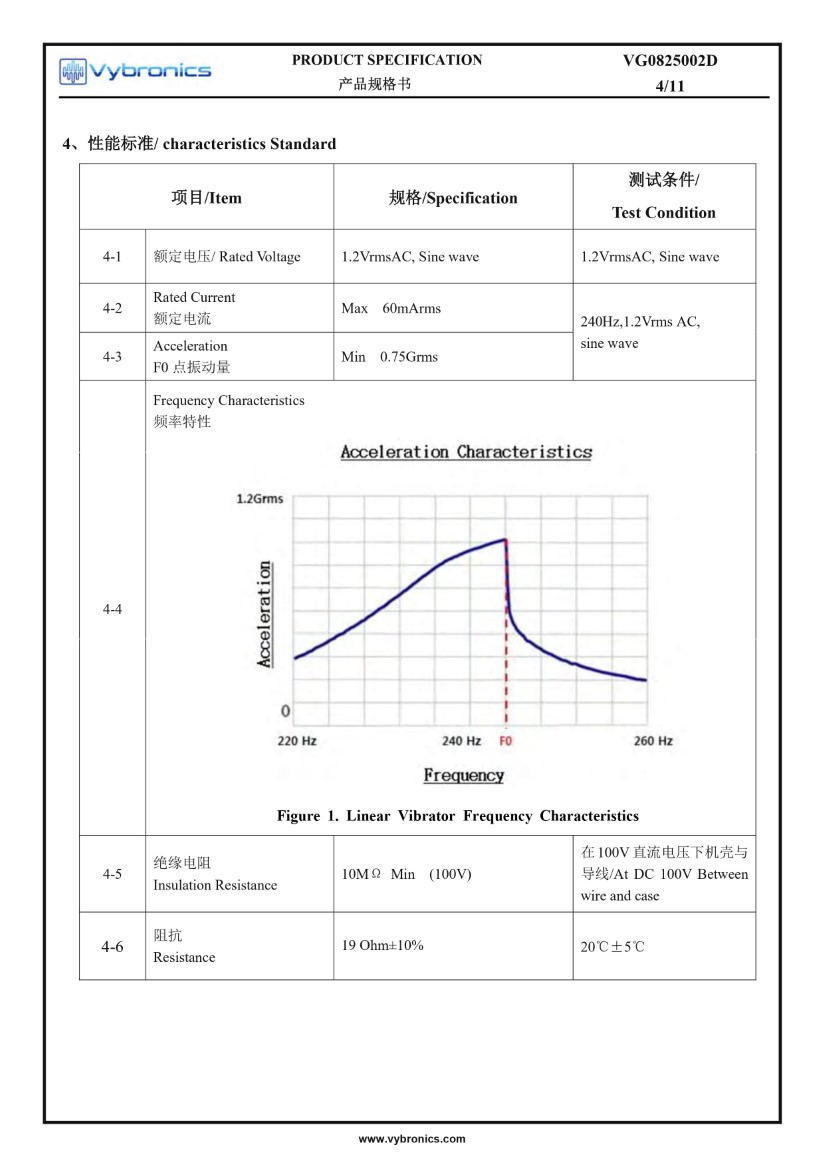

| Summary Of Specifications | |
| Technology Type: | LRA |
| Diameter (mm): | 8.0 |
| Thickness (mm): | 2.65 |
| Rated Voltage (Vac RMS): | 1.2 |
| Operating Voltage (Vac RMS): | 0.1~1.25 |
| Rated Current MAX (mA): | 60 |
| Typical Current (mA): | 48 |
| Rise Time (ms) MAX *: | 50 |
| Fall Time (ms) MAX *: | 50 |
| Resonant Frequency: | 240 |
| Vibration Force (Grms): | 1.05 |
| * at 50% of Maximum G force | |
| Packaging Spec | |
| Part Packaging: | Plastic Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 4000 |
| Size - Master Box: | 51*35*17.5CM |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4020 |
| 25% Exclusion Code: | 9903.88.67 |
| 25% Ex. Code Valid: | thru May 31 2024 |
|
If you need samples, please Contact Us. |
|||
|
