Vybronics VC0720B015F
Model Number: VC0720B015F
(old p/n: C0720B015F)

7 mm x 2 mm | 3 V | Coin Vibration Motor

The VC0720B015F is one of the smallest leaded coin vibration motor currently on the market. Its ideal for light weight wearable devices such as fitness trackers and smart watches. As this coin shaped vibrator is relatively expensive, we recommend you use this motor only if your design cannot utilize one of our lower priced 8mm or 10mm diameter coin vibration motors. If you do not require adhesive on the motors back, order part# VC0720B012F. The 12mm lead length shown is the shortest lead length available. If you require a longer length, and the quantity required is at least 2000 pcs, please contact us.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BRUSH
Diameter (mm): 7.0
Thickness (mm): 2.0
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.7~3.3
Rated Current MAX (mA): 85
Typical Current (mA): 53
Rise Time (ms) MAX *: 90
Fall Time (ms) MAX *: 50
Rated Speed (rpm): 8000 MIN
Vibration Force (Grms): 0.30
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 50
Quantity - Master box: 4000
Size - Master Box: 40.5*27*30CM
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025
Available from
DigiKey Logo
QTY In Stock: 3,399 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VC0720B015F (old P/N C0720B015F) Coin Vibration Motor drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

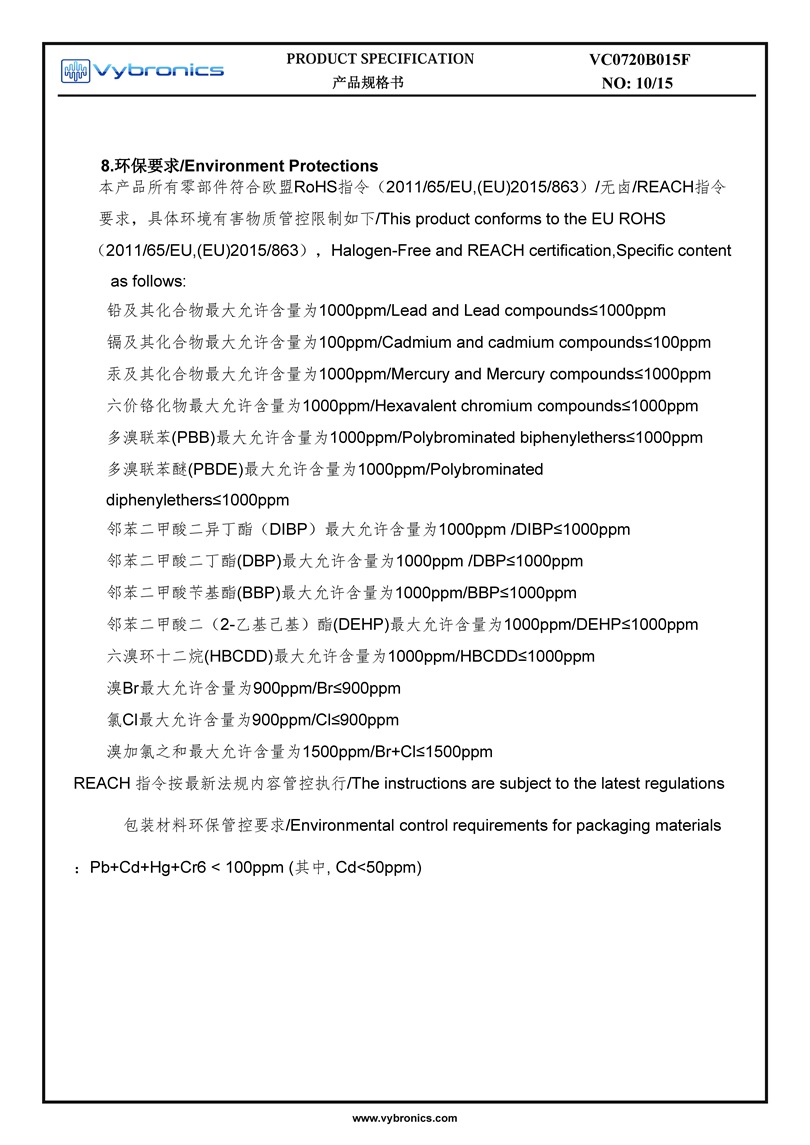

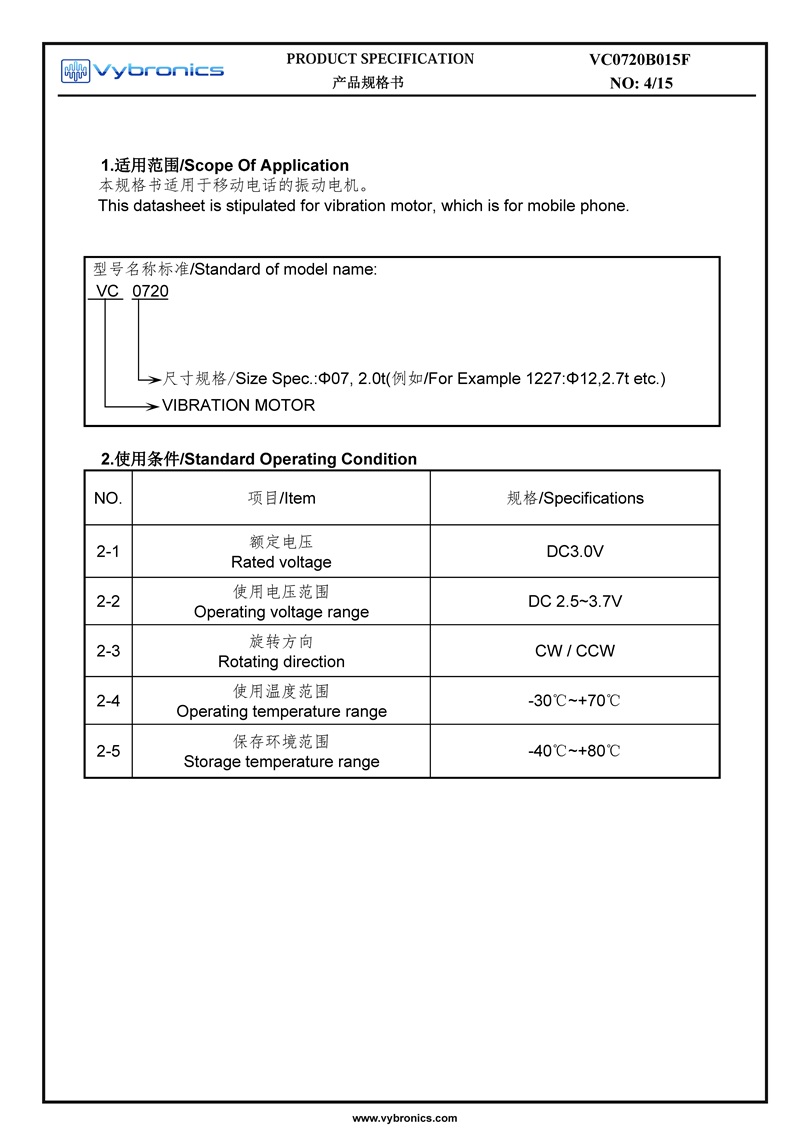

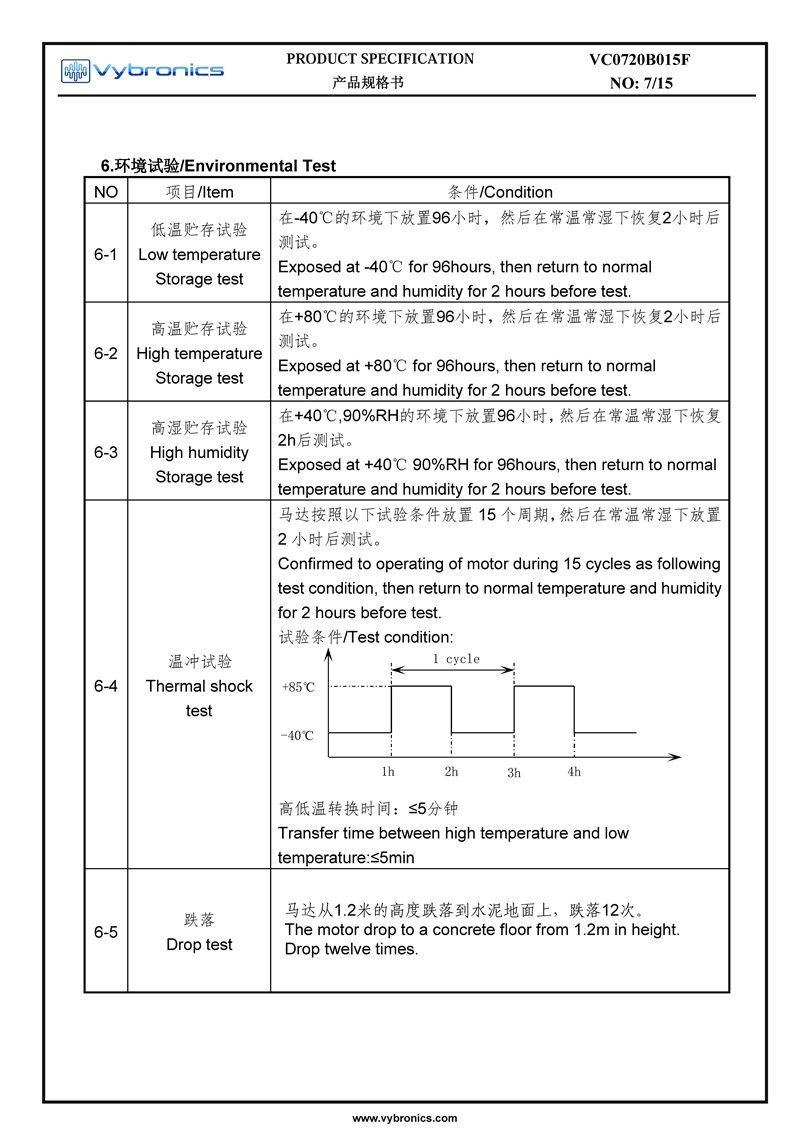

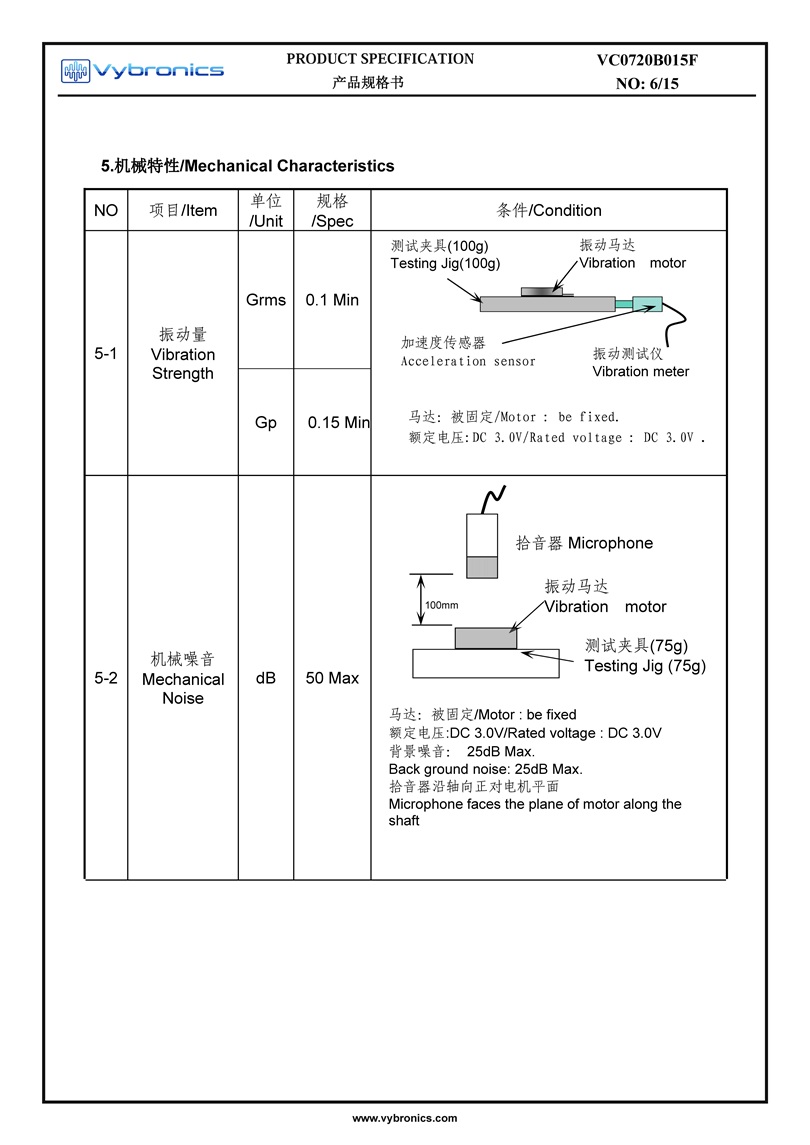

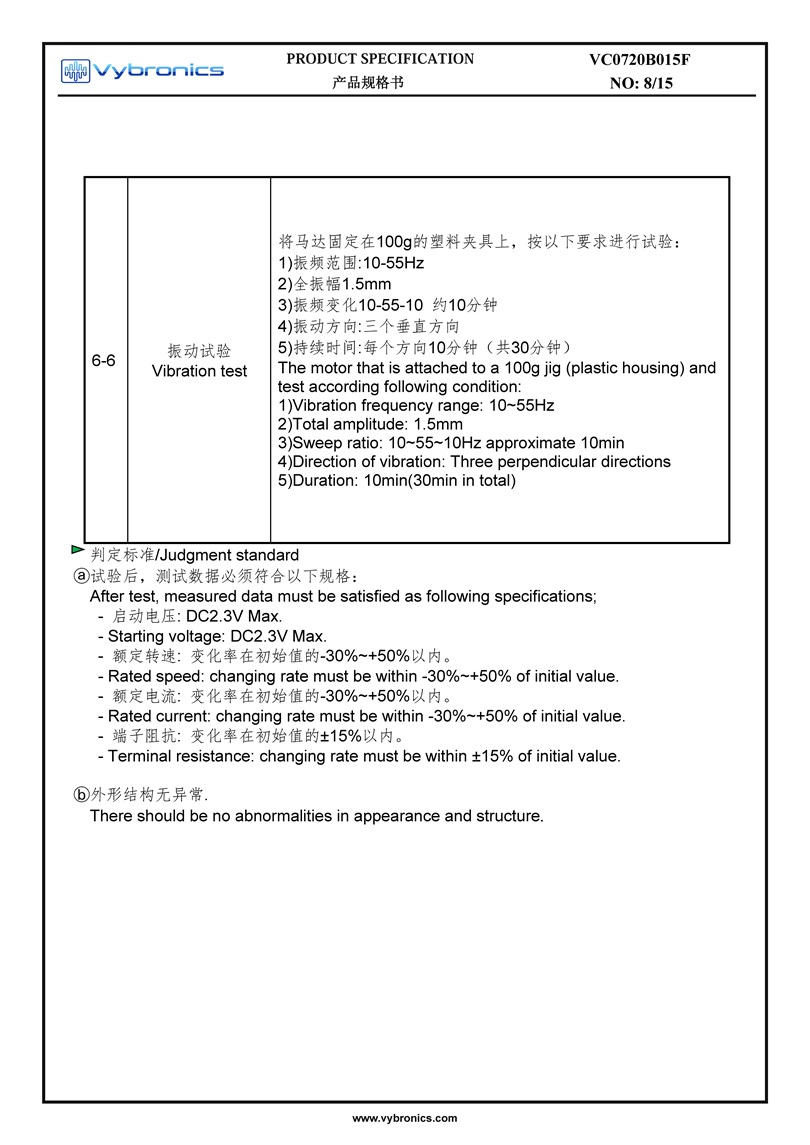

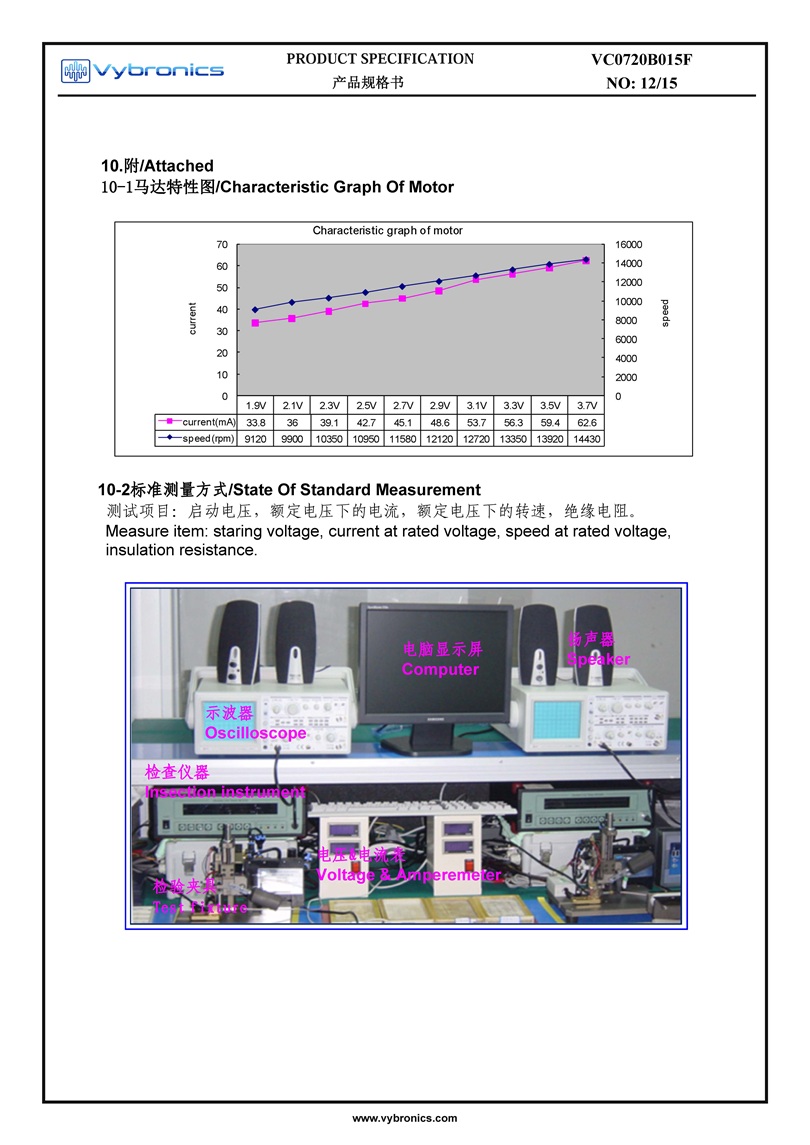

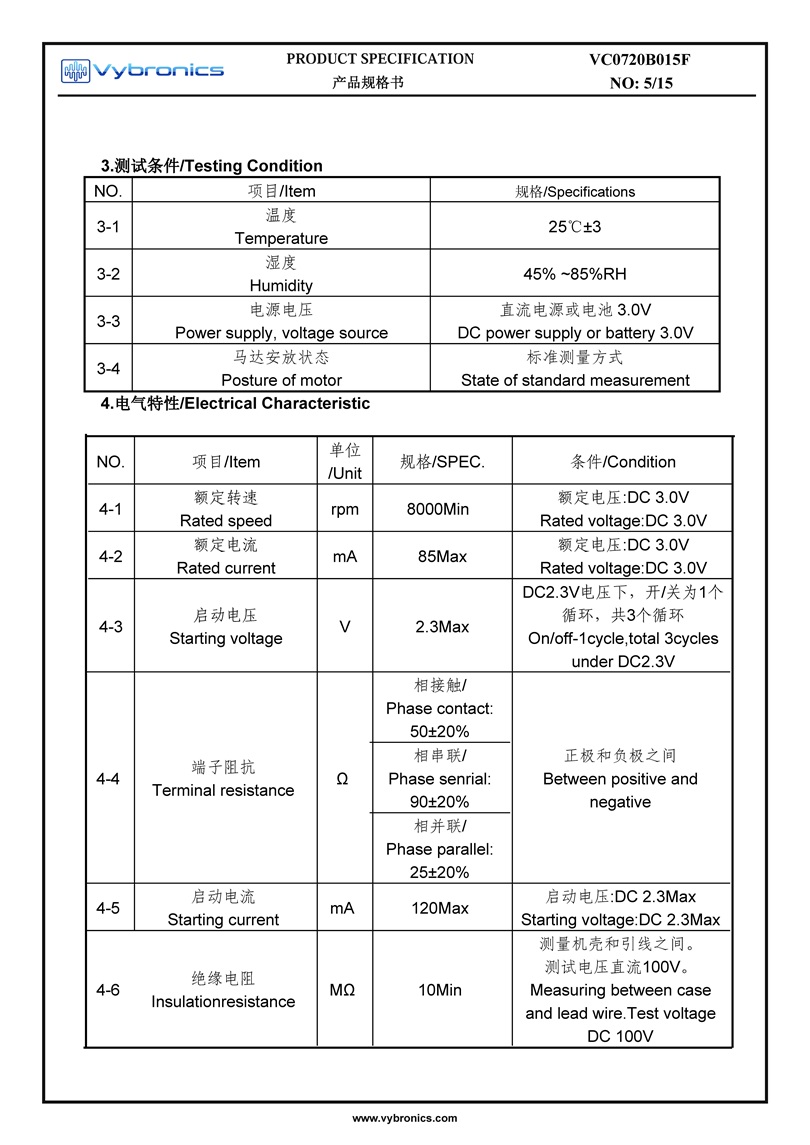

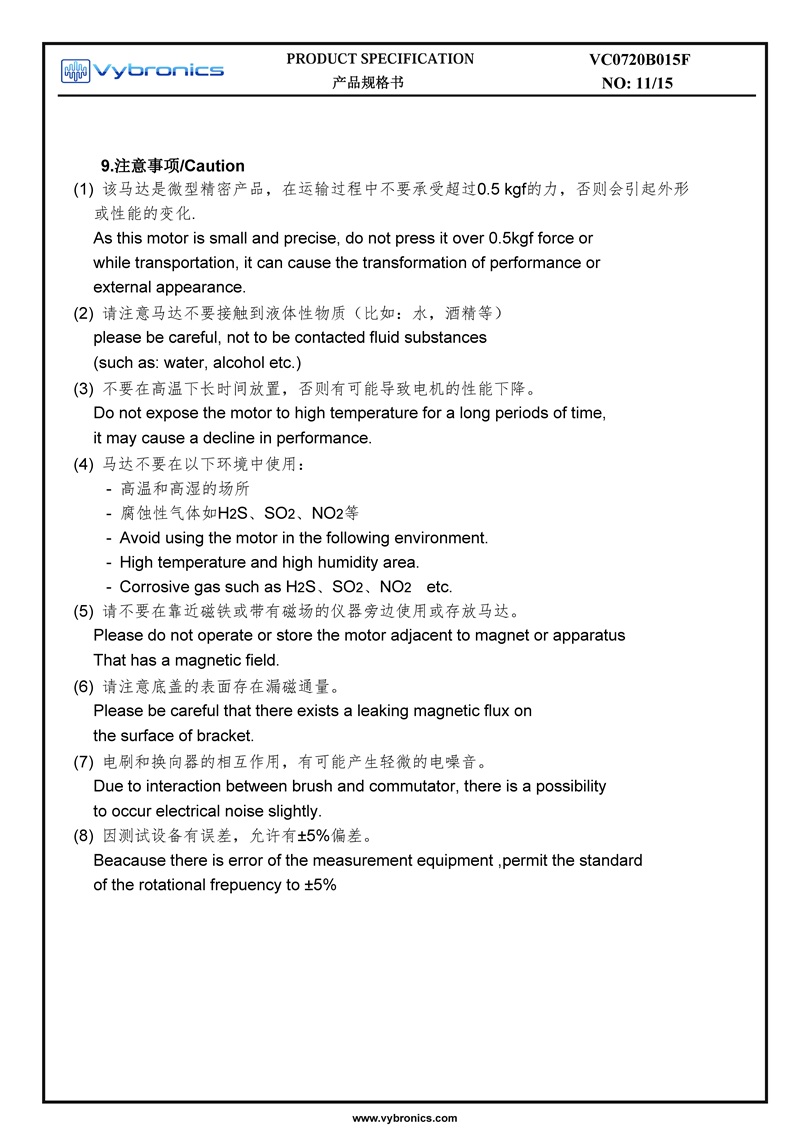

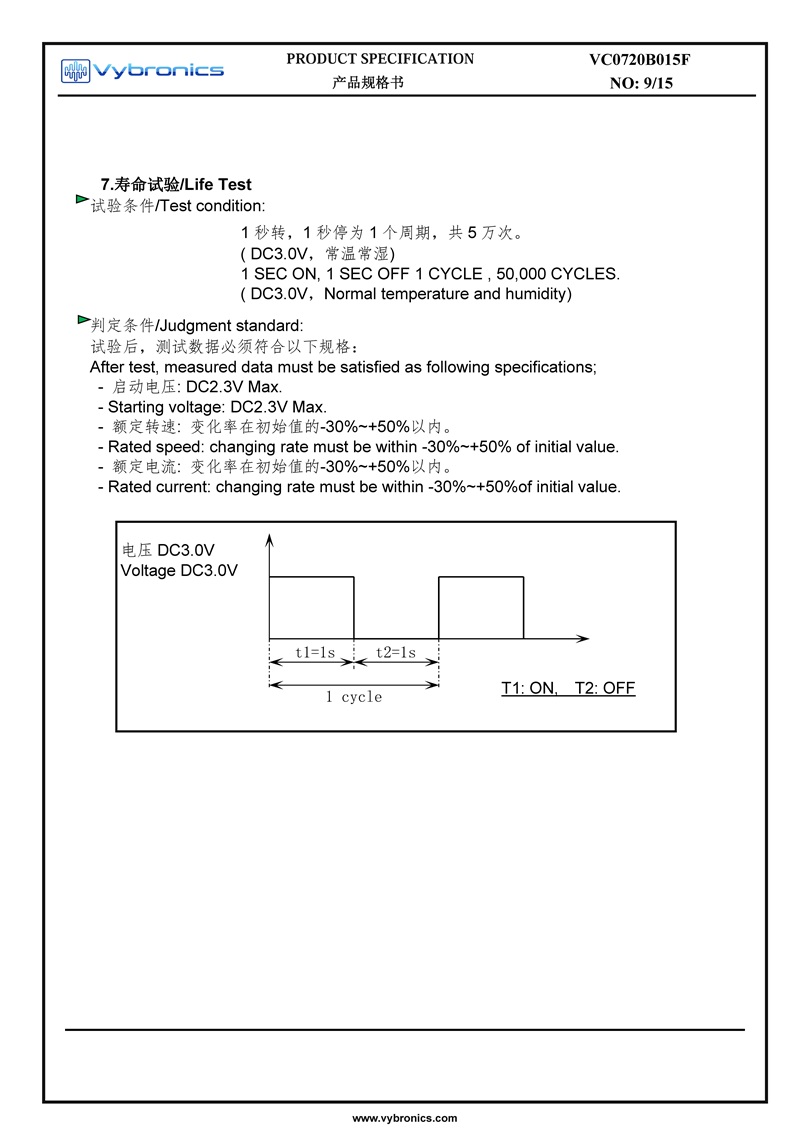

VC0720B015F (old P/N C0720B015F) Coin Vibration Motor data 04VC0720B015F (old P/N C0720B015F) Coin Vibration Motor data 05VC0720B015F (old P/N C0720B015F) Coin Vibration Motor data 06
