KOTL Jinlong C0824K002L
Model Number: VC0824K002L
(old p/n: C0824K002L)

8 mm x 2.4 mm | 3 V | Spring | Coin Vibration Motor

The VC0824K002L coin vibration motor is identical to the  VC0824K001L  except that its helical spring contacts are longer, and extend past the body of the case.   These contacts are designed to mate with corresponding contacts pads on the PCB. The motor has double stick tape on one side that can be used to secure it to the products housing. A hole can be cut in the PCB, allowing it to be situated in the middle of the board. Since reflow solderable SMD versions of this part are not yet available, a coin vibration motor like this can be used to streamline the assembly process by eliminating the need for soldering wires. Do not solder wires to the springs.



CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BRUSH
Diameter (mm): 8.0
Thickness (mm): 2.4
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.5~3.5
Rated Current MAX (mA): 85
Typical Current (mA): 63
Rise Time (ms) MAX *: 90
Fall Time (ms) MAX *: 50
Rated Speed (rpm): 10000
Vibration Force (G): 0.70
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: 45*28*19CM
Weight - Master Box: Call us
ECCN: EAR99
USA HTS Tarrif: 8501.10.4060
USA 25% Exemption: NONE


If you need samples,
please Contact Us.
Add To Favorite List
VC0824K002L (old p/n C0824K002L) Coin type vibration motor drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

VC0824K002L (old p/n C0824K002L) Coin type vibration motor current, speedVC0824K002L (old p/n C0824K002L) Coin type vibration motor data 04

VC0824K002L (old p/n C0824K002L) Coin type vibration motor data 05
VC0824K002L (old p/n C0824K002L) Coin type vibration motor data 05

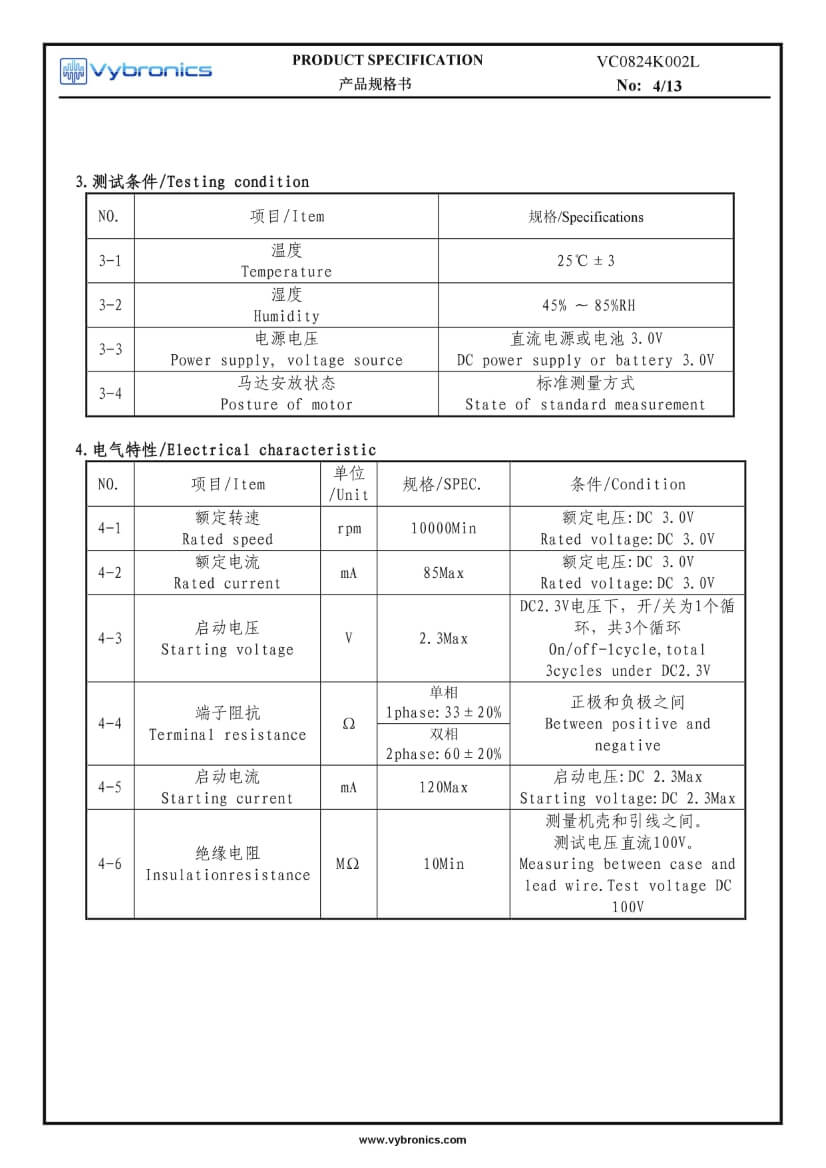

VC0824K002L (old p/n C0824K002L) Coin type vibration motor data 06VC0824K002L (old p/n C0824K002L) Coin type vibration motor data 07VC0824K002L (old p/n C0824K002L) Coin type vibration motor data 08VC0824K002L (old p/n C0824K002L) Coin type vibration motor data 09
