Vybronics VC0827B020F
Model Number: VC0827B020F
(old p/n: C0827B020F)

8 mm x 2.7 mm | 3 V | FPC | Coin Vibration Motor

The VC0827B020F uses a flexible printed circuit (FPC) which extends from the body of the vibration motor.  It is designed for ease of connection to the PCB.   Its uses a "double sided"   FPC  with contact pads facing the PCB  that allow it to be soldered directly to the PCB.    In mass production, a "hot bar soldering" machine may be used to efficiently solder the FPC to the PCB.  Contact us if you would like to use this unique FPC with another one of our coin vibration motors.        There is a 0.5mm foam pad added on one side. We can supply this part without this pad, or with a different thickness pad. We can also add double stick adhesive tape to facilitate mounting.    Please inquire about other FPC configurations with a lower MOQ.  Samples in Stock.





CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BRUSH
Diameter (mm): 8.0
Thickness (mm): 2.7
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.7~3.3
Rated Current MAX (mA): 85
Typical Current (mA): 61
Rise Time (ms) MAX *: 90
Fall Time (ms) MAX *: 50
Rated Speed (rpm): 13500
Vibration Force (Grms): 0.50
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: 45*28*19CM
Weight - Master Box: 5.1KG
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025


If you need samples,
please Contact Us.
Add To Favorite List
VC0827B020F (old p/n C0827B020F) FPC Coin Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

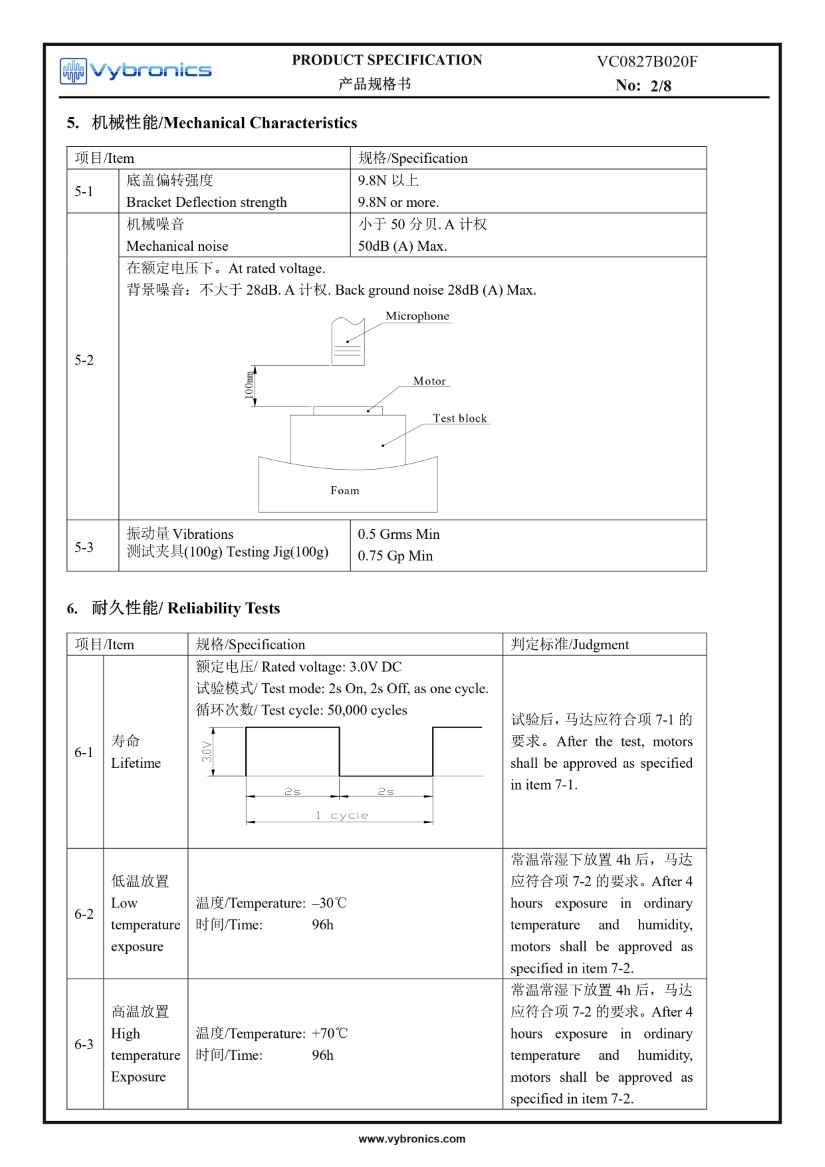

VC0827B020F (old p/n C0827B020F) FPC Coin Vibration Motor Data 03VC0827B020F (old p/n C0827B020F) FPC Coin Vibration Motor Data 04VC0827B020F (old p/n C0827B020F) FPC Coin Vibration Motor Data 05VC0827B020F (old p/n C0827B020F) FPC Coin Vibration Motor Data 06
