Vybronics VC0830B029L
Model Number: VC0830B029L

8 mm x 3 mm | 3 V | FPC | Coin Vibration Motor

The VC0830B029L coin vibration motor is based on the popular leaded version of this same motor, the VC0830B001L.   It may be connected to another FPC or by PCB mounted spring contacts.   Custom FPC's based on your design are available.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BRUSH
Diameter (mm): 8.0
Thickness (mm): 3.0
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.7~3.3
Rated Current MAX (mA): 90
Typical Current (mA): 63
Rise Time (ms) MAX *: 90
Fall Time (ms) MAX *: 50
Rated Speed (rpm): 13000
Vibration Force (Grms): 0.80
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: 45*28*19CM
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025


If you need samples,
please Contact Us.
Add To Favorite List
VC0830B029L FPC Coin type vibration motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

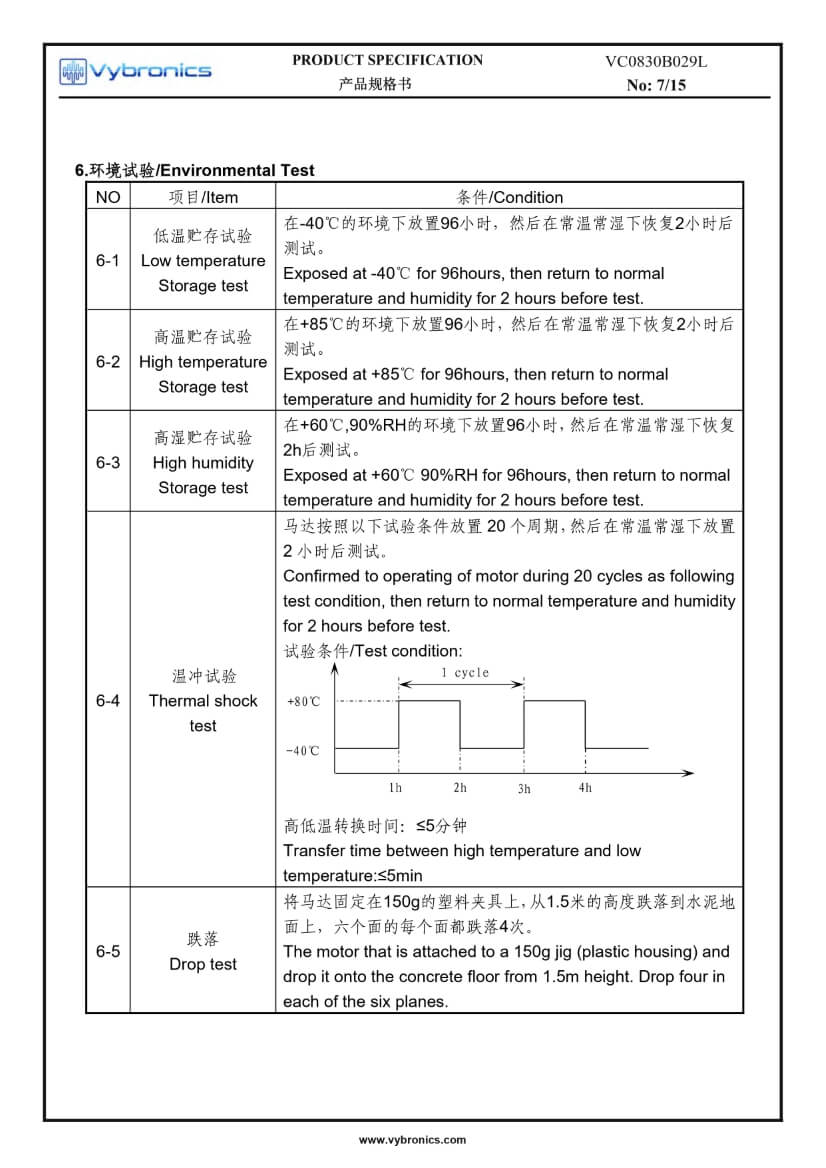

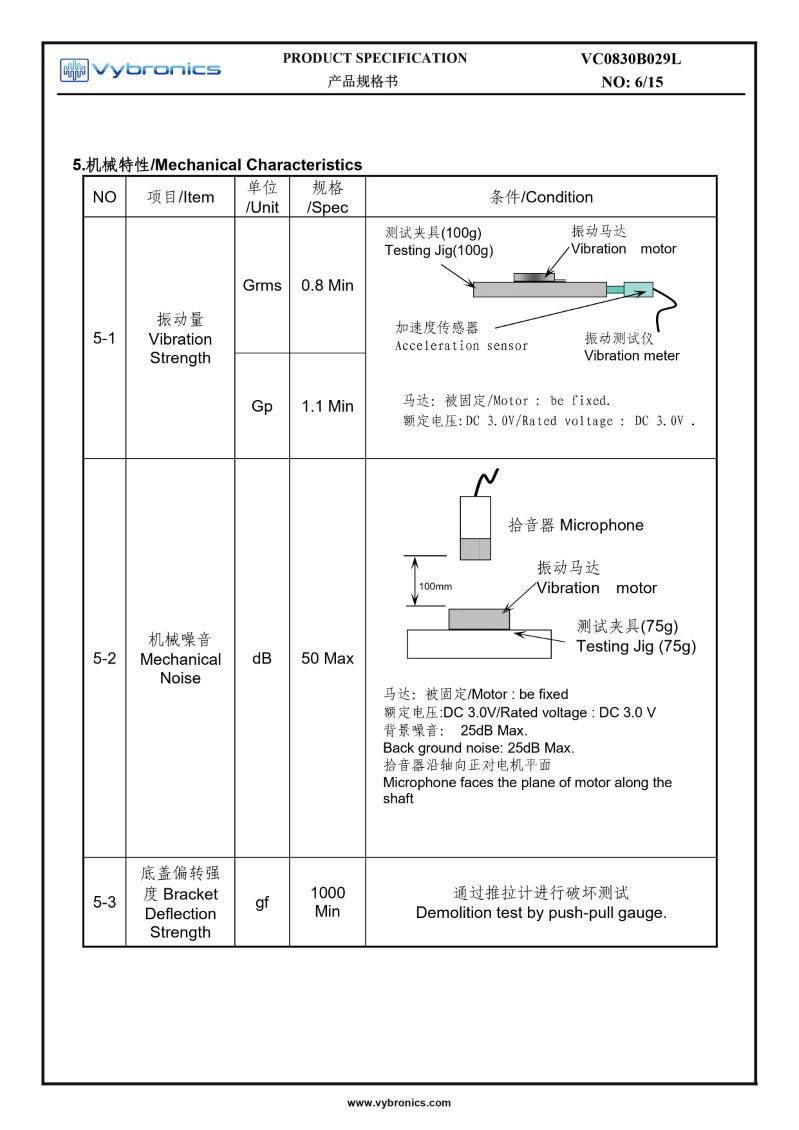

VC0830B029L FPC Coin type vibration motor data 04VC0830B029L FPC Coin type vibration motor data 05

VC0830B029L FPC Coin type vibration motor data 06VC0830B029L FPC Coin type vibration motor data 07VC0830B029L FPC Coin type vibration motor data 08VC0830B029L FPC Coin type vibration motor data 09VC0830B029L FPC Coin type vibration motor data 10VC0830B029L FPC Coin type vibration motor data 12
