Vybronics VC1034K001L
Model Number: VC1034K001L

10 mm x 3.4 mm | 3 V | Spring | Coin Vibration Motor

The VC1034K001L  coin vibration motor is our largest motor that uses helical spring contacts. These spring contacts are designed to mate with corresponding contacts pads on the PCB.   The motor has double stick tape on one side that can be used to secure it to the products housing.  A hole can be cut in the PCB, allowing it to be situated in the middle of the PCB assembly.   Since reflow solderable versions  of coin vibration motor are not feasible, a motor like this may be used to  eliminate inefficient leaded parts.   The spring contacts are not designed to be soldered to.

Photos of how LG mounted this type of vibration motor in their cellphone may be found here:

MOUNTING PHOTOS – COIN MOTOR WITH SPRING CONTACTS



CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BRUSH
Diameter (mm): 10.0
Thickness (mm): 3.4
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.5~3.5
Rated Current MAX (mA): 85
Typical Current (mA): 63
Rise Time (ms) MAX *: 90
Fall Time (ms) MAX *: 50
Rated Speed (rpm): 8000
Vibration Force (Grms): 1.00
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: 12 OCT 21 to
31 DEC 22
Samples
Available from
DigiKey Logo
Contact Us for
quotes on 2K+ pcs
Add To Favorite List

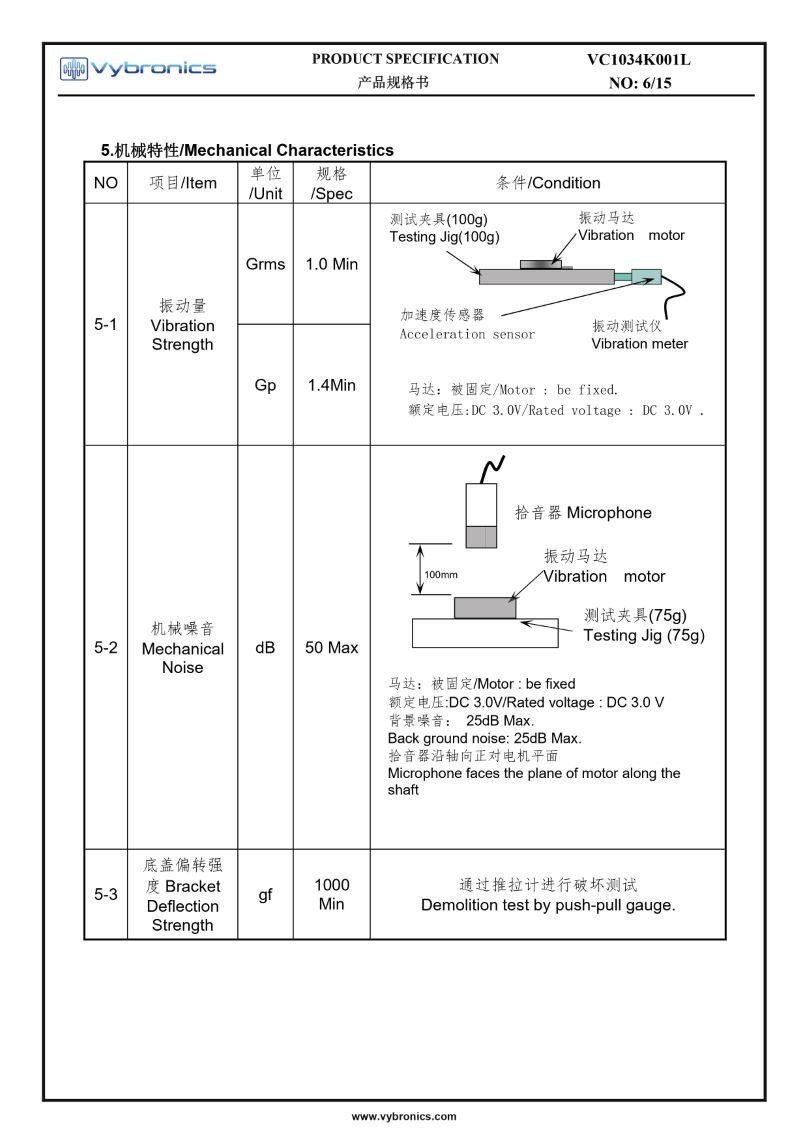

Vybronics VC1034K001L, Coin Vibration Motor Drawing
