Vybronics VZ7AL2B1692082-L15
Model Number: VZ7AL2B1692082-L15

8.8 mm | 3 V | Water Resistant | Vibration Motor

This vibrator motor is identical to our popular VZ7AL2B1692082  but it has shorter 15 mm leads.  Its the fully encapsulated version of our VZ7AL2B1690002. This offers a measure of protection against the entry of liquid, dirt or other contaminates and also prevents any object from impeding the motors rotation. These motors do not have an IP rating.  We also offer a version of this motor with the leads terminated with a connector.

Summary Of Specifications
Diameter (mm): 7.0
Body (mm): 16.5
Overall (mm): 24.9
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.2~3.6
Rated Current MAX (mA): 250
Typical Current (mA): 180
Rated Speed (rpm): 12000
Vibration Force (Grms): 5.10
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 2000
Size - Master Box: 47*35*28CM
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025
Available from
DigiKey Logo
QTY In Stock: 965 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List

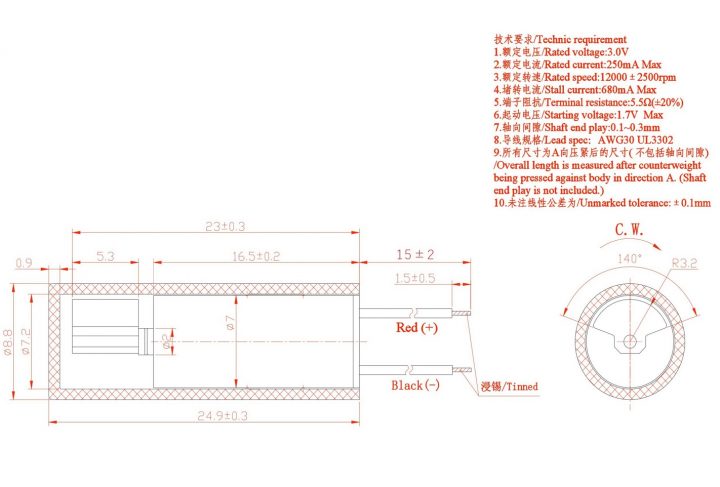

VZ7AL2B1692082-L15 Water Resisitant Encapsulated Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.



VZ7AL2B1692082-L15 Water Resisitant Encapsulated Vibration Motor Data 2VZ7AL2B1692082-L15 Water Resisitant Encapsulated Vibration Motor Data 3VZ7AL2B1692082-L15 Water Resisitant Encapsulated Vibration Motor Data 4VZ7AL2B1692082-L15 Water Resisitant Encapsulated Vibration Motor Data 5
