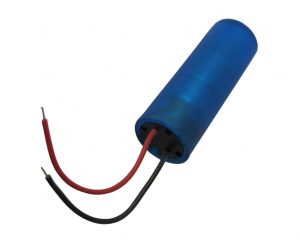

Encapsulated Vibration Motors (Overmoldable) - picture 1

Encapsulated – Overmoldable Vibration Motors

Encapsulated Vibration Motors (Overmoldable) - picture 2

Our line of enclosed vibration motors are either available with either a plastic capsule made of polystyrene or a metal capsule made of nickel plated steel. Vibration motors that make use our metal capsule design are fully encapsulated and may be over molded. They incorporate a plastic cap at the end of the capsule that is epoxied in place to prevent intrusion of liquids and are water proof.  The wires that pass through this cap are epoxied as well. Encapsulated vibrating motors are best suited for applications that require the electronics assembly to be potted, over molded or fully submerged in a liquid. It may also be suitable for applications that require a vibration motor that is intrinsically safe. As of this time, we do not have an IS or IP rating for any of our parts. Models that make use of our plastic capsules may be used in less demanding applications and in most cases may be potted.

Scroll To See All Motors


Part Number

Download Icon
Old P/N
(see PCN)

motor logo
Config. Type Motor Size (mm) Voltage (Vdc) Current (mA) Rated speed (rpm) Rated Vibe Freq. (Hz) Vibe Force (Grms) CLICK
to
BUY
from
Digikey image
Dia / Hgt Body
Length
Overall
Length
Rated Operating Rated
MAX
Typical*
Avg.
VZ6CL2A0540722 Z6CL2A0540722 VZ6CL2A0540722 cylindrical vibration motor preview image 9 6.0 15.0 21.9 1.3 0.9~1.6 70 43 8500 142 1.00
VZ6DL2A0765217 Z6DL2A0765217 VZ6DL2A0765217 cylindrical vibration motor preview image 9.1 6.0 12.0 24.5 1.3 0.9~1.6 250 175 10000 167 2.60
VZ6DL2B0055211 Z6DL2B0055211 VZ6DL2B0055211 cylindrical vibration motor preview image 9.1 6.0 12.0 24.5 3.0 2.2~3.6 70 57 11000 183 1.10
QTY IN STOCK: 2,092
VZ6DL2H0125215 Z6DL2H0125215 VZ6DL2H0125215 cylindrical vibration motor preview image 9.1 6.0 12.0 24.5 1.5 1.0~1.8 80 35 10200 170 0.80
VZ7AJ2B1692081 Z7AJ2B1692081 VZ7AJ2B1692081 cylindrical vibration motor preview image 9 7.0 16.5 23.0 3.0 2.2~3.6 250 180 12000 200 5.10
VZ7AL2A1692081 Z7AL2A1692081 VZ7AL2A1692081 cylindrical vibration motor preview image 9 7.0 16.5 24.9 1.3 0.9~1.6 70 48 5500 92 1.05
VZ7AL2B020208B VZ7AL2B020208B cylindrical vibration motor preview image 9 7.0 16.5 21.7 3.0 2.2~3.6 50 24 7500 125 1.10
VZ7AL2B1692082 Z7AL2B1692082 VZ7AL2B1692082 cylindrical vibration motor preview image 9 7.0 16.5 24.9 3.0 2.2~3.6 250 180 12000 200 5.10
QTY IN STOCK: 4,287
VZ7AL2B1692082-L15 VZ7AL2B1692082-L15 cylindrical vibration motor preview image 9 7.0 16.5 24.9 3.0 2.2~3.6 250 180 12000 200 5.10
QTY IN STOCK: 965
VZ7AL2B169208T Z7AL2B169208T VZ7AL2B169208T cylindrical vibration motor preview image 9 7.0 16.5 24.9 3.0 2.2~3.6 250 180 12000 200 5.10
QTY IN STOCK: 406
VZ7AL2H1692082 Z7AL2H1692082 VZ7AL2H1692082 cylindrical vibration motor preview image 9 7.0 16.5 24.9 1.5 1.0~1.8 370 310 11500 192 4.10
Part Number Old P/N (see PCN) Image Config. Type Dia / Hgt (mm) Body L (mm) Overall L (mm) Rated (V) Operating (V) Rated MAX (mA) Typical* (mA) Speed (rpm) Rated Freq. (Hz) Vibe Force (Grms) BUY SAMPLES HERE
VZ6CL2A0540722 Z6CL2A0540722 VZ6CL2A0540722 cylindrical vibration motor preview image 9 6.0 15.0 21.9 1.3 0.9~1.6 70 43 8500 142 1.00
VZ6DL2A0765217 Z6DL2A0765217 VZ6DL2A0765217 cylindrical vibration motor preview image 9.1 6.0 12.0 24.5 1.3 0.9~1.6 250 175 10000 167 2.60
VZ6DL2B0055211 Z6DL2B0055211 VZ6DL2B0055211 cylindrical vibration motor preview image 9.1 6.0 12.0 24.5 3.0 2.2~3.6 70 57 11000 183 1.10
STOCK: 2,092
VZ6DL2H0125215 Z6DL2H0125215 VZ6DL2H0125215 cylindrical vibration motor preview image 9.1 6.0 12.0 24.5 1.5 1.0~1.8 80 35 10200 170 0.80
VZ7AJ2B1692081 Z7AJ2B1692081 VZ7AJ2B1692081 cylindrical vibration motor preview image 9 7.0 16.5 23.0 3.0 2.2~3.6 250 180 12000 200 5.10
VZ7AL2A1692081 Z7AL2A1692081 VZ7AL2A1692081 cylindrical vibration motor preview image 9 7.0 16.5 24.9 1.3 0.9~1.6 70 48 5500 92 1.05
VZ7AL2B020208B VZ7AL2B020208B cylindrical vibration motor preview image 9 7.0 16.5 21.7 3.0 2.2~3.6 50 24 7500 125 1.10
VZ7AL2B1692082 Z7AL2B1692082 VZ7AL2B1692082 cylindrical vibration motor preview image 9 7.0 16.5 24.9 3.0 2.2~3.6 250 180 12000 200 5.10
STOCK: 4,287
VZ7AL2B1692082-L15 VZ7AL2B1692082-L15 cylindrical vibration motor preview image 9 7.0 16.5 24.9 3.0 2.2~3.6 250 180 12000 200 5.10
STOCK: 965
VZ7AL2B169208T Z7AL2B169208T VZ7AL2B169208T cylindrical vibration motor preview image 9 7.0 16.5 24.9 3.0 2.2~3.6 250 180 12000 200 5.10
STOCK: 406
VZ7AL2H1692082 Z7AL2H1692082 VZ7AL2H1692082 cylindrical vibration motor preview image 9 7.0 16.5 24.9 1.5 1.0~1.8 370 310 11500 192 4.10

The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.

Config 9 ENCAPSULATED / ENCLOSED Config 9.1 ENCAPSULATED-OVER MOLDABLE

Plastic Capsule

Water Resistant Design

Metal Capsule

Overmoldable & Water Proof

WIRE LEAD w.  CONNECTOR

Encapsulated Vibration Motors (Overmoldable) - WIRE LEAD w. CONNECTOR

We can supply this motor with a variety of
different connectors
