The VZ3TL5B3120061P is an amazing combination of small size and low current. Ideal for wearables with limited battery capacity. At 3.2 mm it is the smallest diameter motor we make. The rubber gasket helps facilitate mounting in a molded pocket, and mitigate unwanted mechanical noise when the motor is actuated. It is available in custom lead lengths as short as 8 mm.
| Summary Of Specifications | |

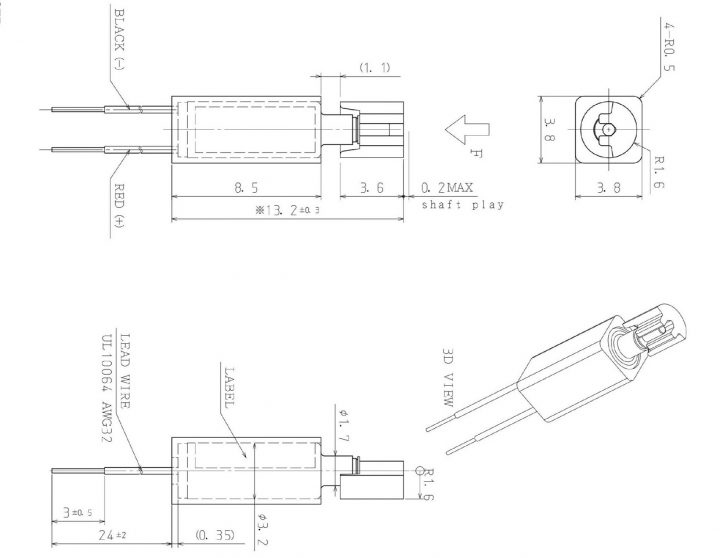

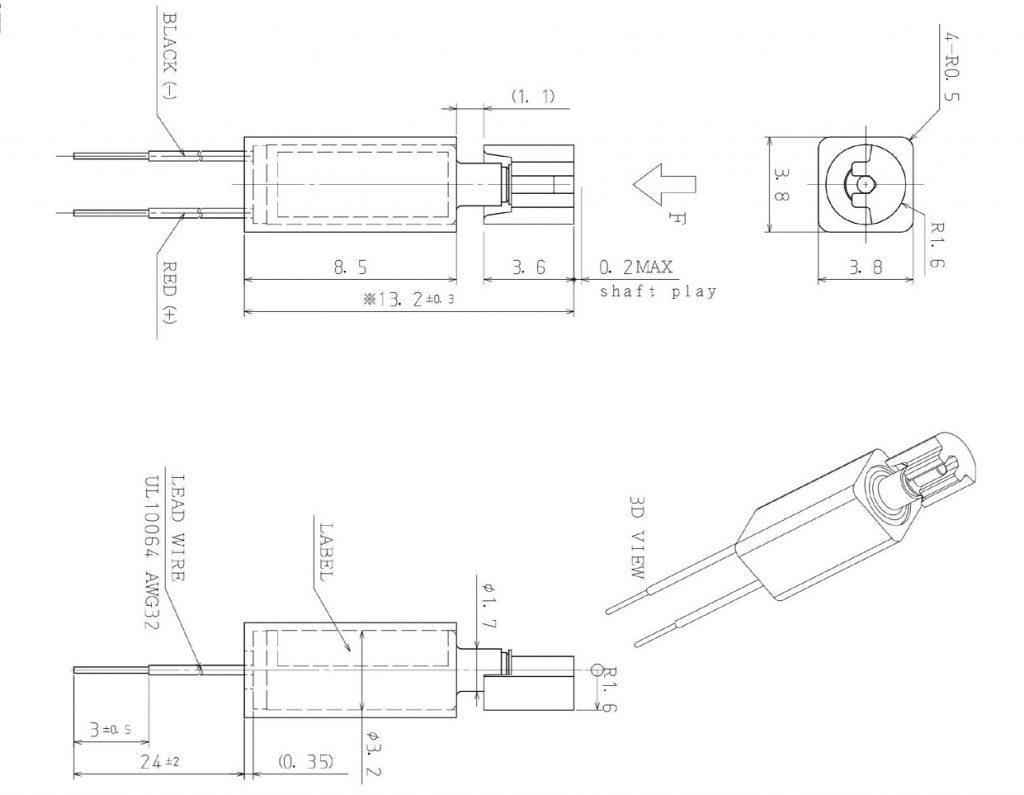

| Diameter/Height (mm): | 3.2 / 3.8 |
| Body (mm): | 8.5 |
| Overall (mm): | 13.2 |
| Rated Voltage (Vdc): | 3.0 |
| Operating Voltage (Vdc): | 2.5~3.6 |
| Rated Current MAX (mA): | 40 |
| Typical Current (mA): | 27 |
| Rated Speed (rpm): | 12000 |
| Vibration Force (Grms): | 0.60 |
| Packaging Spec / Tariff Info | |
| Part Packaging: | Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 4000 |
| Size - Master Box: | Call us |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4060 |
| 25% Exclusion Code: | 9903.88.69 |
| 25% Ex. Code Valid: | from June 14, 2024 thru Nov 10, 2026 |
| Country of Origin: | VIETNAM |
Available from
Contact Us for quotes on 2K+ pcs |
|||
|
This part is not authorized for Life Supporting Devices
