VZ4TL2B0370032L image coming soon
Model Number: VZ4TL2B0370032L

4mm Diameter | 3 V | Low Current | Vibration Motor

The VZ4TL2B0370032L low power / low current consumption vibration motor is the same motor used on our discontinued VZ4TL2B03715452, but minus the PCB mounting bracket.  Its available with custom lead lengths and connectors as well.

Summary Of Specifications
Diameter/Height (mm): 4.0 / 4.0
Body (mm): 8.2
Overall (mm): 12.1
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.4~3.6
Rated Current MAX (mA):  30
Typical Current (mA): 20
Rated Speed (rpm): 10000
Vibration Force (Grms): 0.70
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: 44*22*18.5CM
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: thru May 31 2024


If you need samples,
please Contact Us.
Add To Favorite List

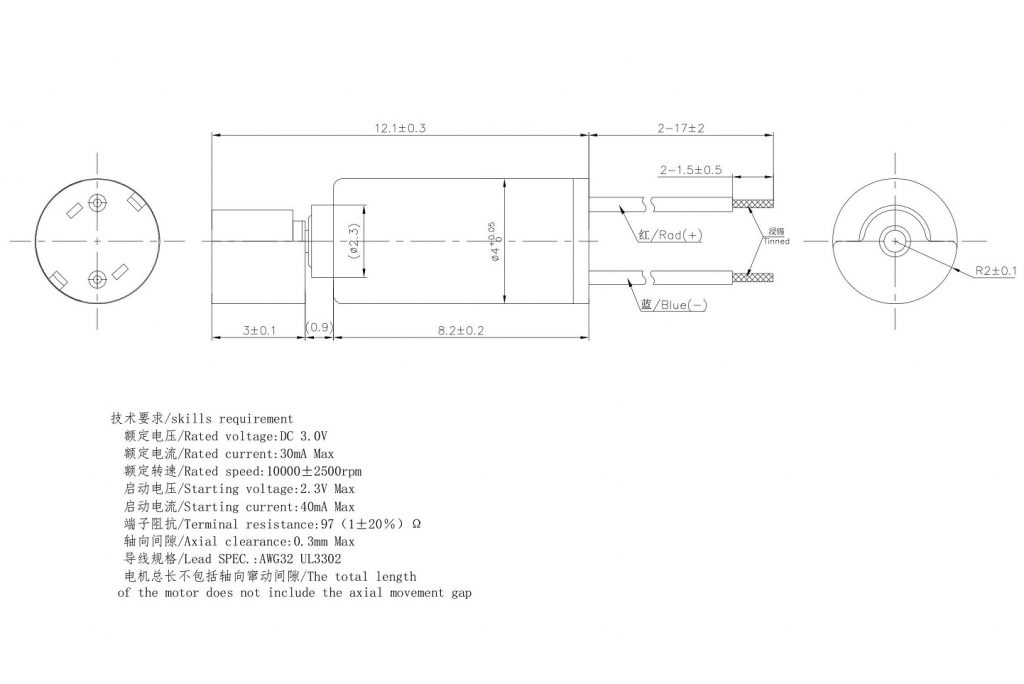

Vybronics VZ4TL2B0370032L, Low Current Cylindrical Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

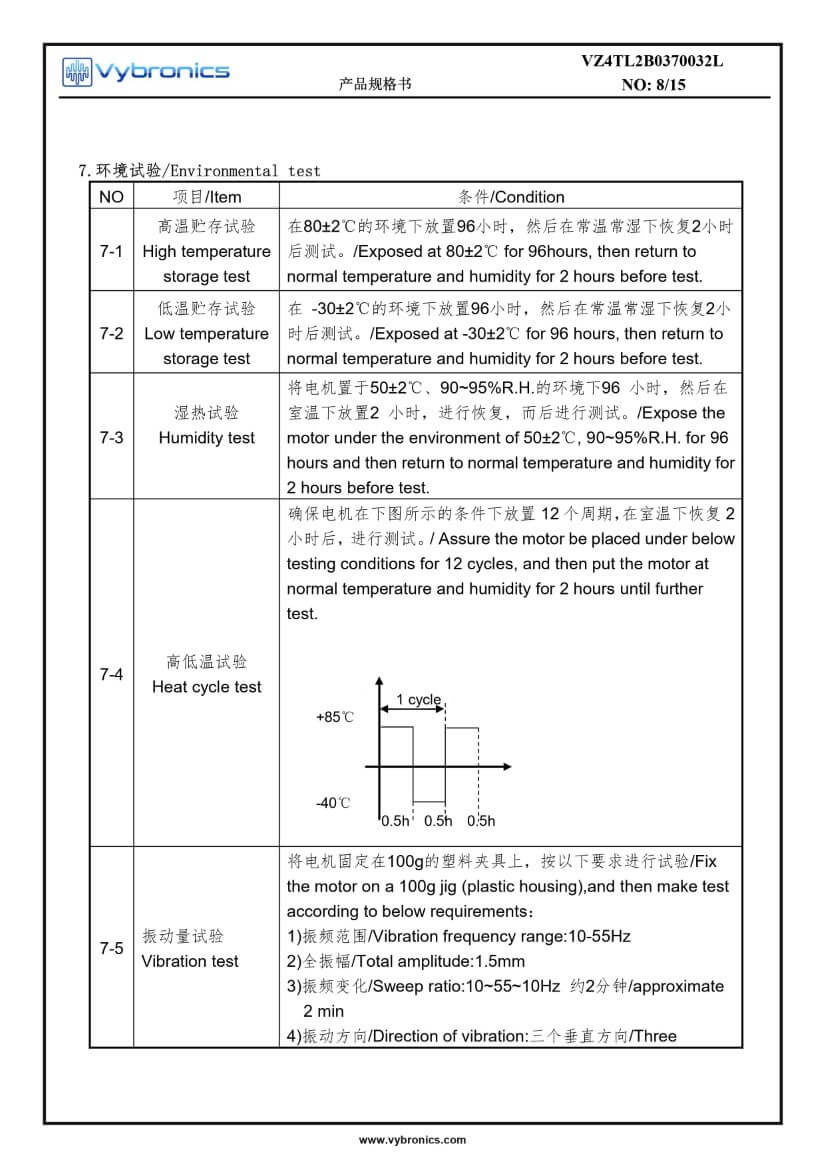

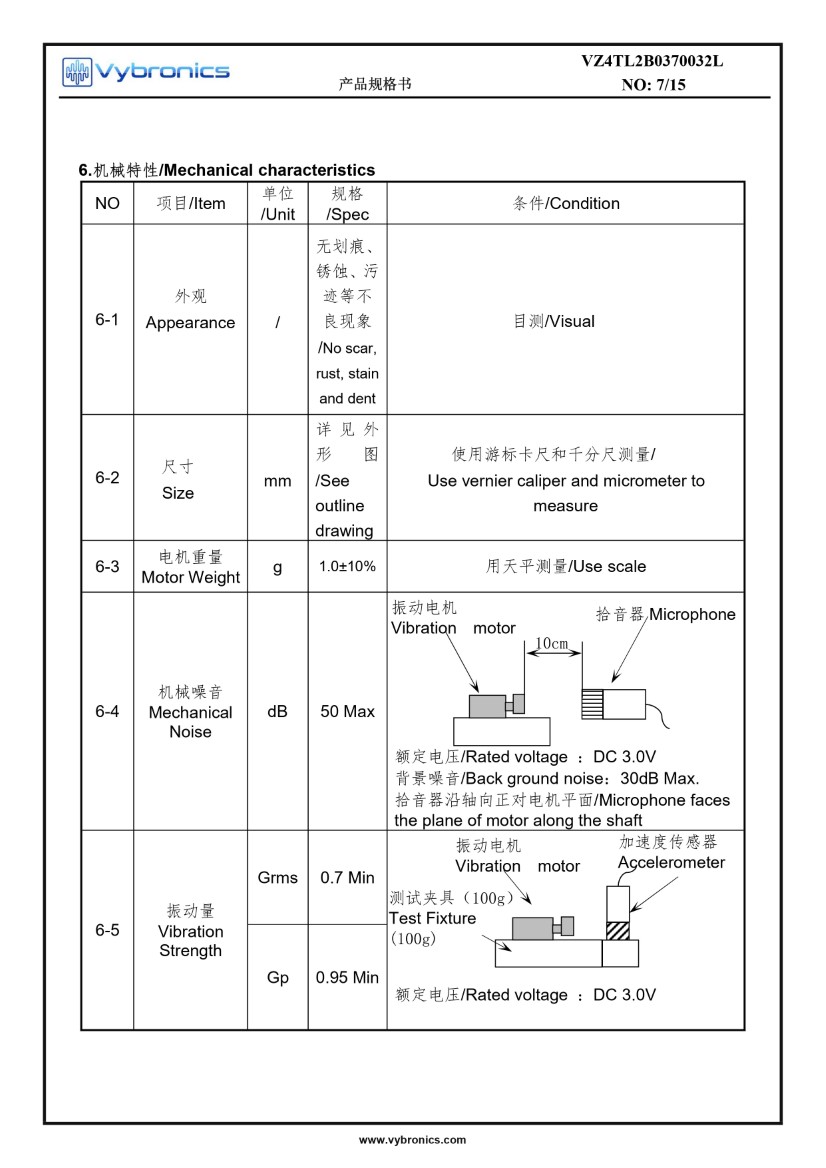

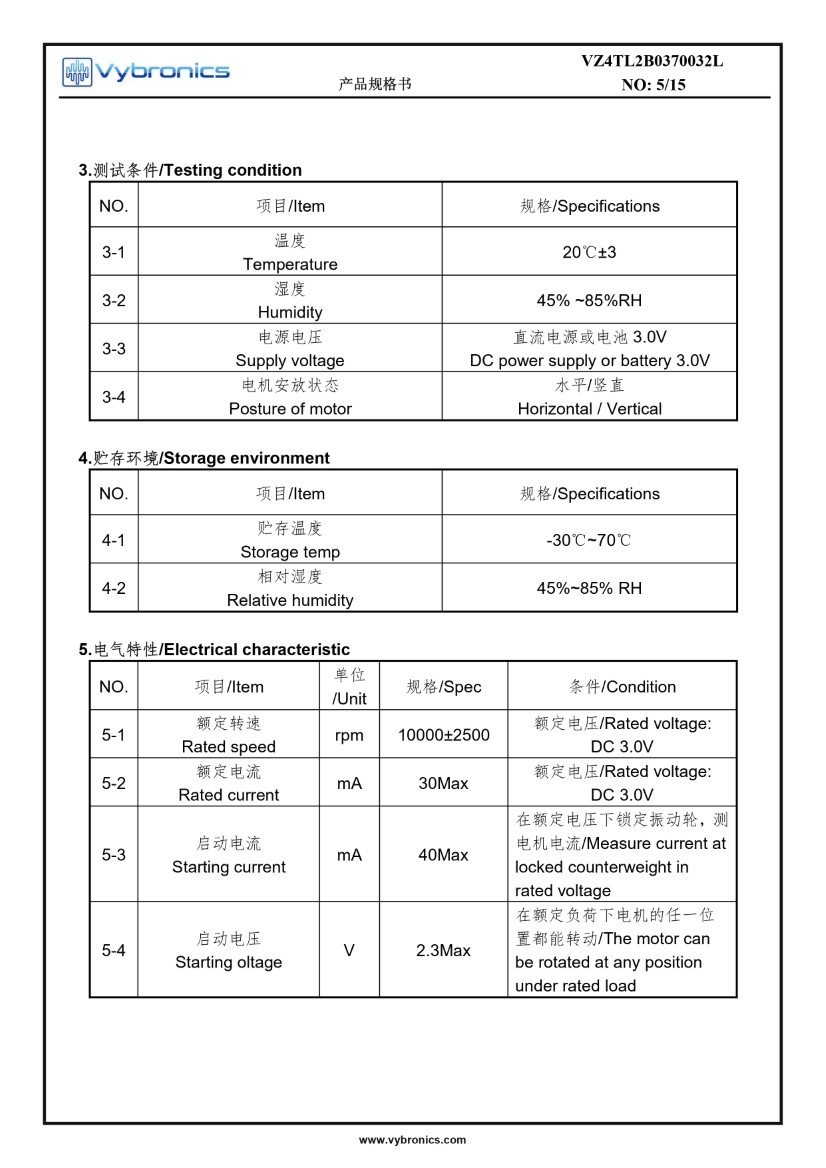

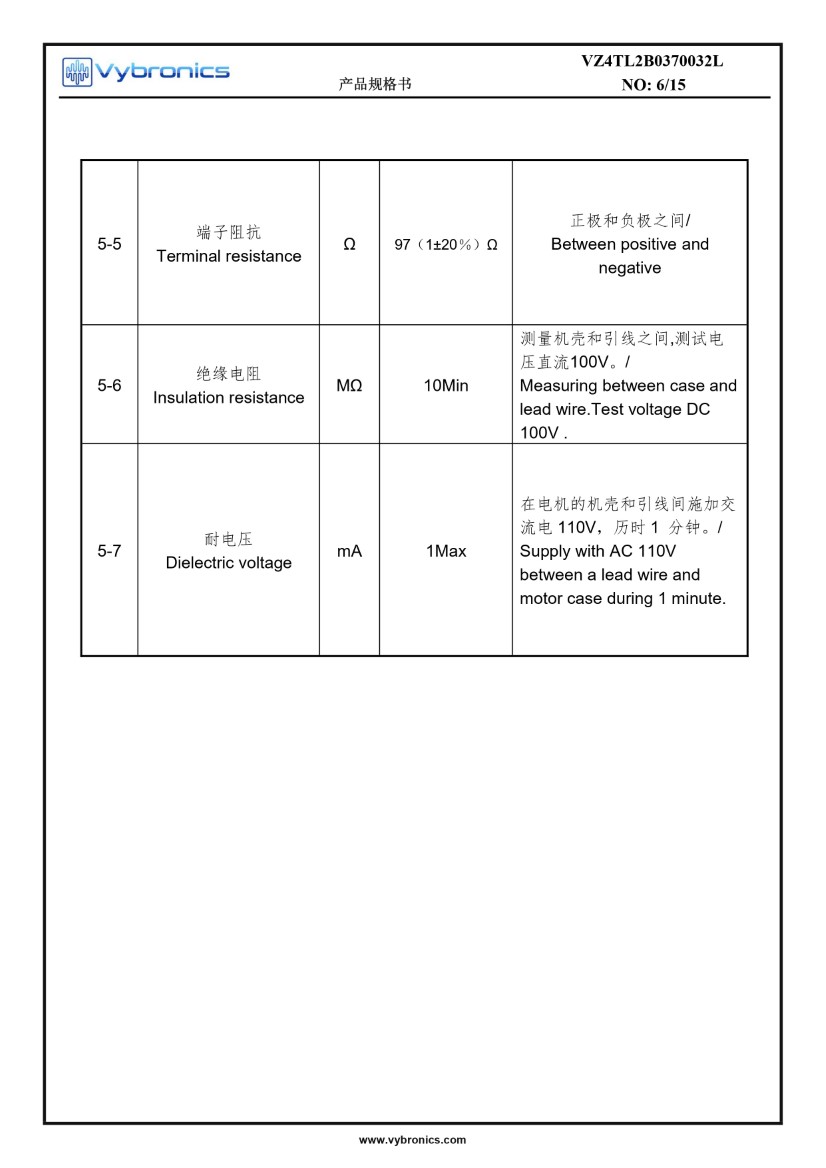

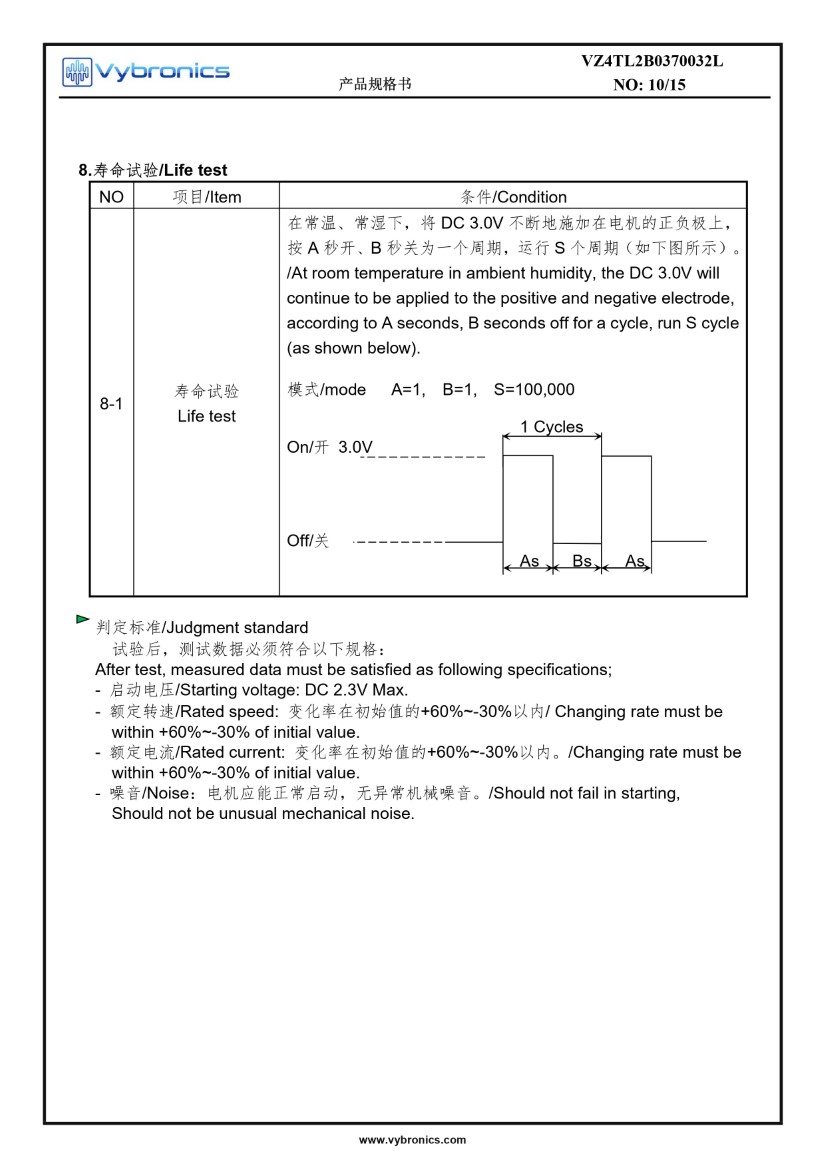

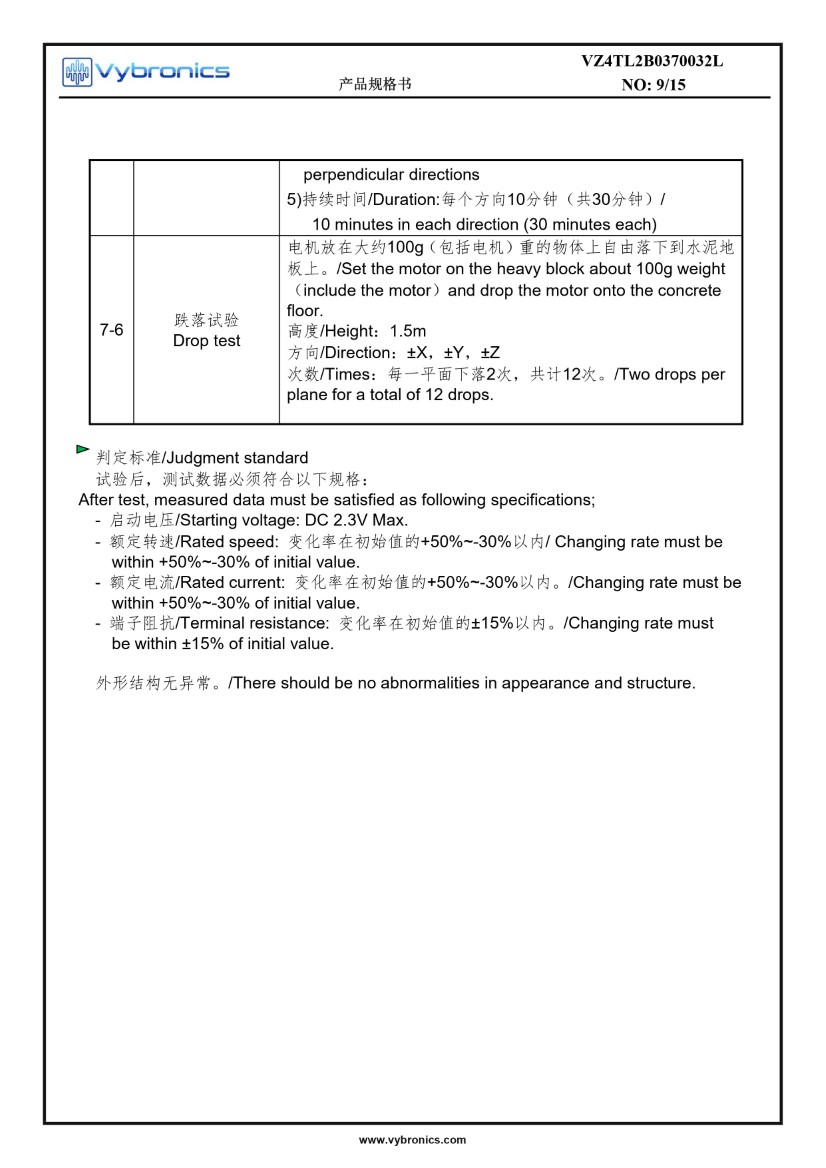

Vybronics VZ4TL2B0370032L, Low Current Cylindrical Vibration Motor Data 04Vybronics VZ4TL2B0370032L, Low Current Cylindrical Vibration Motor Data 05Vybronics VZ4TL2B0370032L, Low Current Cylindrical Vibration Motor Data 06Vybronics VZ4TL2B0370032L, Low Current Cylindrical Vibration Motor Data 07Vybronics VZ4TL2B0370032L, Low Current Cylindrical Vibration Motor Data 08Vybronics VZ4TL2B0370032L, Low Current Cylindrical Vibration Motor Data 09Vybronics VZ4TL2B0370032L, Low Current Cylindrical Vibration Motor Data 10
