Vybronics VZ6DL2B1501193
Model Number: VZ6DL2B1501193
(old p/n: Z6DL2B1501193)

6.7mm Height | 3 V | Low Current | Vibration Motor

This is our low current version of the VZ6DL2B0541192. It’s designed for applications that require a low power consumption vibration motor. The price point of this motor is much higher than our VZ6DL2B0541192 making it uneconomical for low cost consumer products. The silicone rubber boot running the length of the motors body allows it to be press fit into a cavity in your devices plastic housing.

CLICK  HERE to see photos of how this motor is typically mounted in the products housing.

Summary Of Specifications
Diameter/Height (mm): 6.0 / 6.7
Body (mm): 12.4
Overall (mm): 17.0
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.0~3.6
Rated Current MAX (mA):  40
Typical Current (mA): 26
Rated Speed (rpm): 9500
Vibration Force (Grms): 1.00
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: thru May 31 2024


If you need samples,
please Contact Us.
Add To Favorite List

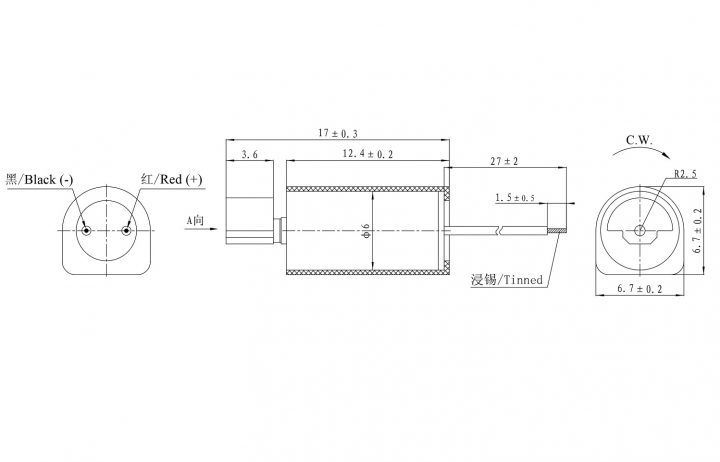

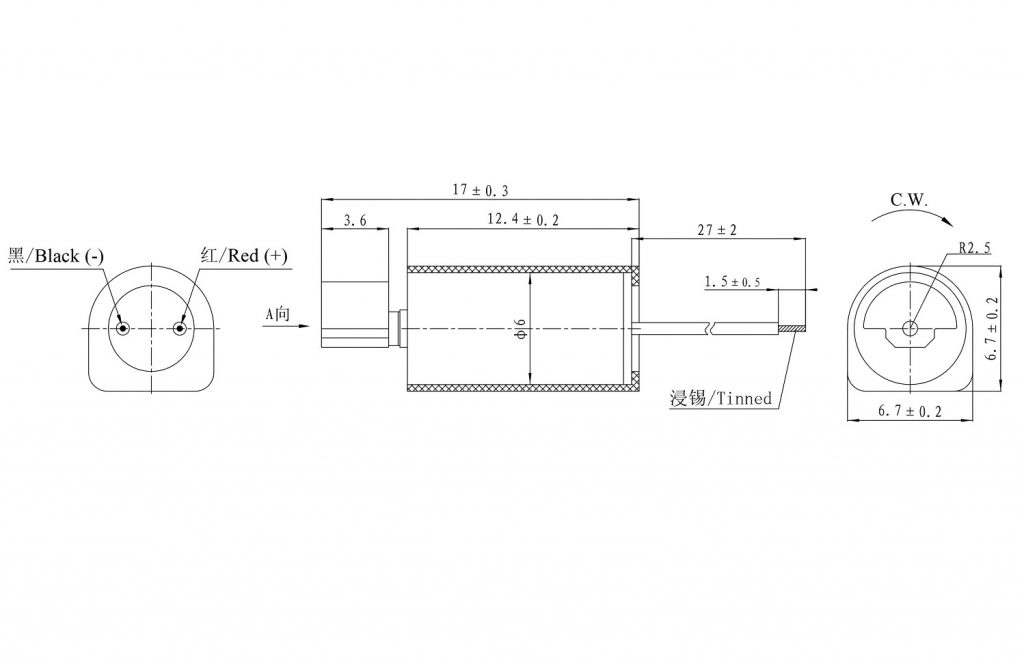

VZ6DL2B1501193 (old p/n Z6DL2B1501193) Low Current Wire Leads Cylindrical Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.
