KOTL Jinlong VZ30C1T8460002L
Model Number: VZ30C1T8460002L
(old p/n: Z30C1T8460002L)

3.0mm Height | 2.7 V | SMD ERM Vibration Motor

At a height of just 3 mm the VZ30C1T8460002L has the lowest of profile of any SMD vibration motor on the market. Its ideal for any light weight device requiring vibration or haptic feedback. This is a drop-in replacement for the discontinued VZ30C1T8460001.   Its supplied on tape / reels for efficient high volume mass production. Care must be taken to follow the reflow temperature profile. Do not expose our SMD vibration motors to liquids. This includes flux washes or conformal coatings.

Summary Of Specifications
Height (mm): 3.0
Body (mm): 6.8
Overall (mm): 10.8
Rated Voltage (Vdc): 2.7
Operating Voltage (Vdc): 2.3~3.2
Rated Current MAX (mA): 85
Typical Current (mA): 67
Rated Speed (rpm): 15000
Vibration Force (G): 0.55
Packaging Spec
Part Packaging: Tape / Reel
Qty per reel / tray: 1000
Quantity - Master box: 5000
Size - Master Box: 38*38*23CM
Weight - Master Box: 7KG
ECCN: EAR99
USA HTS Tarrif: 8501.10.4060
USA 25% Exemption: NONE
Samples
Available from
DigiKey Logo
Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VZ30C1T8460002L (old p/n Z30C1T8460002L) SMD Haptic Feedback ERM Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

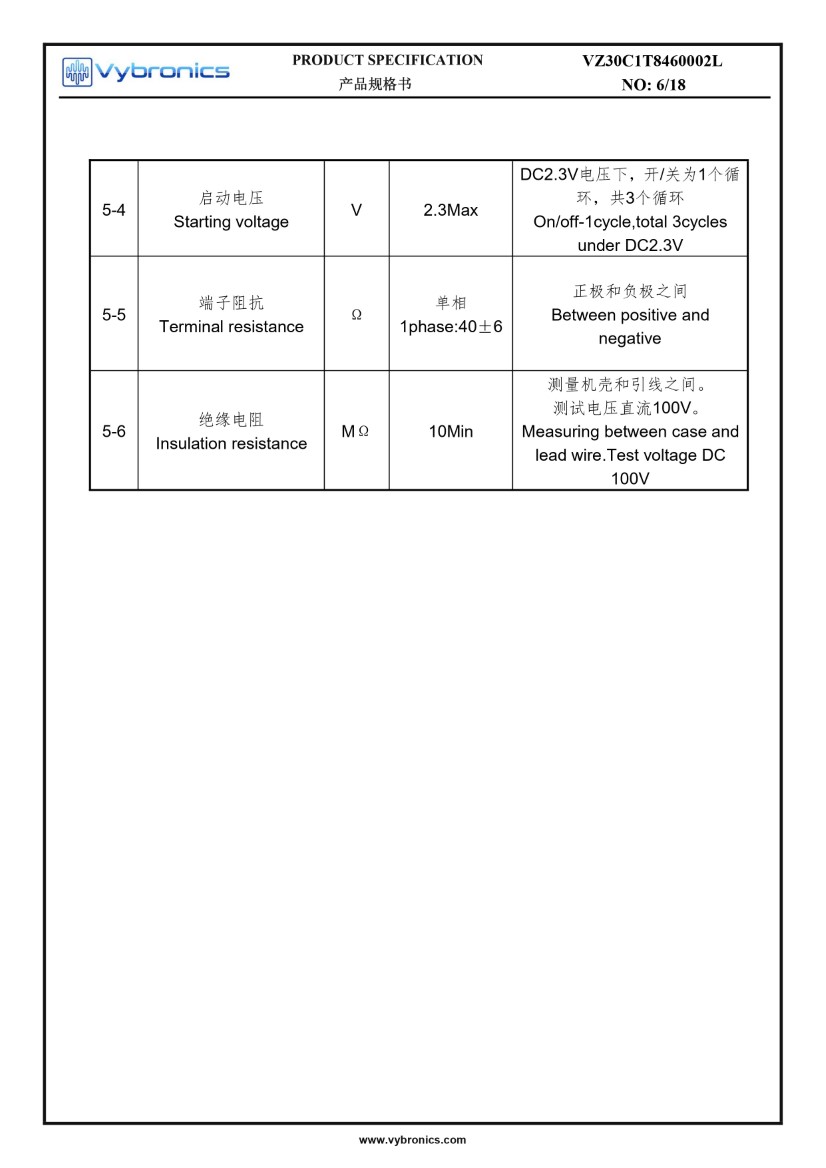

VZ30C1T8460002L (old p/n Z30C1T8460002L) SMD Haptic Feedback ERM Vibration Motor Data 04VZ30C1T8460002L (old p/n Z30C1T8460002L) SMD Haptic Feedback ERM Vibration Motor Data 05VZ30C1T8460002L (old p/n Z30C1T8460002L) SMD Haptic Feedback ERM Vibration Motor Data 06VZ30C1T8460002L (old p/n Z30C1T8460002L) SMD Haptic Feedback ERM Vibration Motor Data 07VZ30C1T8460002L (old p/n Z30C1T8460002L) SMD Haptic Feedback ERM Vibration Motor Data 08

VZ30C1T8460002L (old p/n Z30C1T8460002L) SMD Haptic Feedback ERM Vibration Motor Data 09VZ30C1T8460002L (old p/n Z30C1T8460002L) SMD Haptic Feedback ERM Vibration Motor Data 10VZ30C1T8460002L (old p/n Z30C1T8460002L) SMD Haptic Feedback ERM Vibration Motor Data 11
