Model Number: VZ30C1T9870088L
(old p/n: Z30C1T9870088L)

3.5mm Height | 2.3 V | SMD Reflow Vibration Motor

This motors unique dual counter-weight produces a G force of 0.95 .    To obtain maximum G force, an oversized counter-weight is used.  The diameter of the counter weights is larger than the diameter of the motor body, and it will be necessary to make 2 small rectangular holes in the PCB directly under the motors counter-weights.  See the PCB foot print in the drawing below for details.  We do make a version (VZ30C1T9870089L) that uses counter-weights that have have a slightly smaller turn radius ( 1.7 mm) and cutting holes in the PCB will not be required.  It does however produce a lower vibration G force of  0.8 Grms.   These  SMD vibration motors are supplied on tape / reels of 1000 pcs and is designed specifically for use with pick and place machines. Care must be taken to follow the reflow temperature profile. Do not expose SMD reflow vibration motors to liquids. This includes flux washes and conformal coatings.

Summary Of Specifications
Height (mm): 3.5
Body (mm): 5.9
Overall (mm): 12.7
Rated Voltage (Vdc): 2.3
Operating Voltage (Vdc): 2.1~3.2
Rated Current MAX (mA): 130
Typical Current (mA): 107
Rated Speed (rpm): 8500
Vibration Force (G): 0.95
Packaging Spec
Part Packaging: Tape / Reel
Qty per reel / tray: 1000
Quantity - Master box: 5000
Size - Master Box: 38*38*23CM
Weight - Master Box: 7KG
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: 12 OCT 21 to
31 DEC 22
Samples
Available from
DigiKey Logo
Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VZ30C1T9870088L (old p/n Z30C1T9870088L) SMT Reflow Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

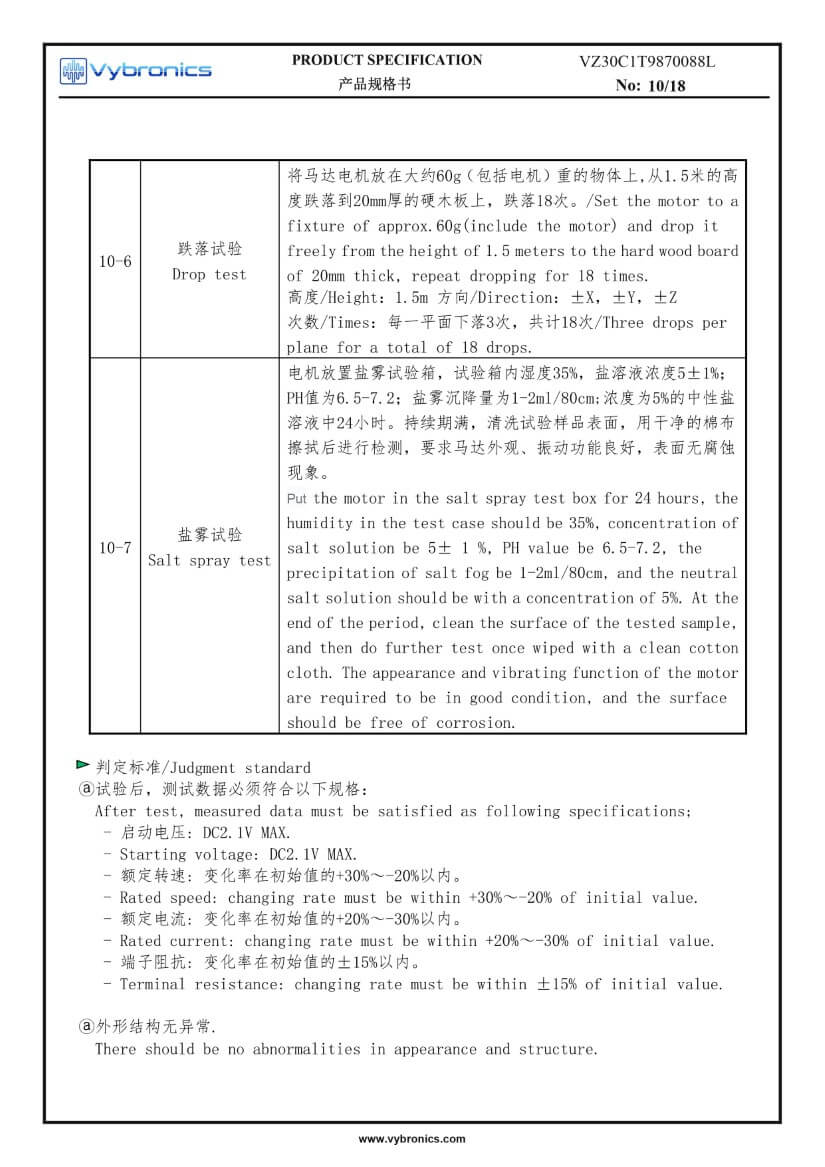

VZ30C1T9870088L (old p/n Z30C1T9870088L) SMT Reflow Vibration Motor 04VZ30C1T9870088L (old p/n Z30C1T9870088L) SMT Reflow Vibration Motor 05VZ30C1T9870088L (old p/n Z30C1T9870088L) SMT Reflow Vibration Motor 06VZ30C1T9870088L (old p/n Z30C1T9870088L) SMT Reflow Vibration Motor 07VZ30C1T9870088L (old p/n Z30C1T9870088L) SMT Reflow Vibration Motor 08VZ30C1T9870088L (old p/n Z30C1T9870088L) SMT Reflow Vibration Motor 09VZ30C1T9870088L (old p/n Z30C1T9870088L) SMT Reflow Vibration Motor 10VZ30C1T9870088L (old p/n Z30C1T9870088L) SMT Reflow Vibration Motor 11VZ30C1T9870088L (old p/n Z30C1T9870088L) SMT Reflow Vibration Motor 12

VZ30C1T9870088L (old p/n Z30C1T9870088L) SMT Reflow Vibration Motor 18
