Vybronics VZ43FC1B5640005L
360view
Model Number: VZ43FC1B5640005L
(old p/n: Z43FC1B5640005L)

4.3mm Height | 1.3 V | SMD Reflow Vibration Motor

The VZ43FC1B5640005L is one most powerful SMT reflow vibrating motors.  It is also unique in that the drive voltage is only 1.3 V, making it idea for devices that use a single conventional 1.5 Vdc battery cell.  This motor is supplied on tape / reels of 1000 pcs and is designed specifically for use with pick and place machines. Care must be taken to follow the reflow temperature profile. Do not expose SMD reflow vibration motors to liquids. This includes flux washes and conformal coatings.

Summary Of Specifications
Height (mm): 4.3
Body (mm): 5.5
Overall (mm): 12.0
Rated Voltage (Vdc): 1.3
Operating Voltage (Vdc): 1.3~1.6
Rated Current MAX (mA): 120
Typical Current (mA): 87
Rated Speed (rpm): 9000
Vibration Force (Grms): 0.60
Packaging Spec
Part Packaging: Tape / Reel
Qty per reel / tray: 1000
Quantity - Master box: 5000
Size - Master Box: 38*38*23CM
Weight - Master Box: 7KG
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: thru May 31 2024
Available from
DigiKey Logo
QTY In Stock: 66,392 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List

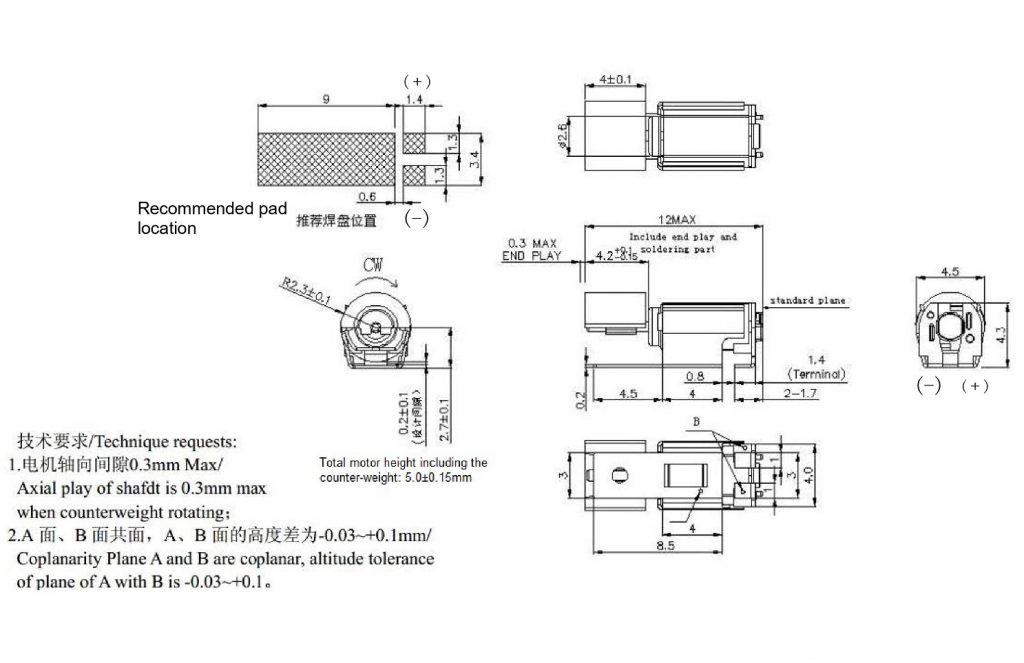

VZ43FC1B5640005L (old p/n Z43FC1B5640005L) SMT SMD Reflow Vibration Motor data drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

VZ43FC1B5640005L (old p/n Z43FC1B5640005L) SMT SMD Reflow Vibration Motor data 04VZ43FC1B5640005L (old p/n Z43FC1B5640005L) SMT SMD Reflow Vibration Motor data 05VZ43FC1B5640005L (old p/n Z43FC1B5640005L) SMT SMD Reflow Vibration Motor data 06VZ43FC1B5640005L (old p/n Z43FC1B5640005L) SMT SMD Reflow Vibration Motor data 07VZ43FC1B5640005L (old p/n Z43FC1B5640005L) SMT SMD Reflow Vibration Motor data 08VZ43FC1B5640005L (old p/n Z43FC1B5640005L) SMT SMD Reflow Vibration Motor data 09VZ43FC1B5640005L (old p/n Z43FC1B5640005L) SMT SMD Reflow Vibration Motor data 10VZ43FC1B5640005L (old p/n Z43FC1B5640005L) SMT SMD Reflow Vibration Motor data 11VZ43FC1B5640005L (old p/n Z43FC1B5640005L) SMT SMD Reflow Vibration Motor data 12VZ43FC1B5640005L (old p/n Z43FC1B5640005L) SMT SMD Reflow Vibration Motor data 18
