Vybronics VZ43FC1B5640007L
360view
Model Number: VZ43FC1B5640007L
(old p/n: Z43FC1B5640007L)

4.3mm Height | 3.0 V | Vibration Motor - SMD Reflow

The VZ43FC1B5640007L is a SMD reflow solderable vibration motor that generates a sizable 0.91 G.  It is supplied on tape / reels of 1000 pcs and is designed specifically for use with pick and place machines. Care must be taken to follow the reflow temperature profile. Do not expose SMD reflow vibration motors to liquids. This includes flux washes and conformal coatings.

Summary Of Specifications
Height (mm): 4.3
Body (mm): 7.5
Overall (mm): 12.0
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.5~3.4
Rated Current MAX (mA): 100
Typical Current (mA): 77
Rated Speed (rpm): 10000
Vibration Force (Grms): 0.65
Packaging Spec
Part Packaging: Tape / Reel
Qty per reel / tray: 1000
Quantity - Master box: 5000
Size - Master Box: 36*36*21CM
Weight - Master Box: 6.9KG
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025
Available from
DigiKey Logo
QTY In Stock: 5,003 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VZ43FC1B5640007L (old p/n Z43FC1B5640007L) Cylindrical core SMT Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

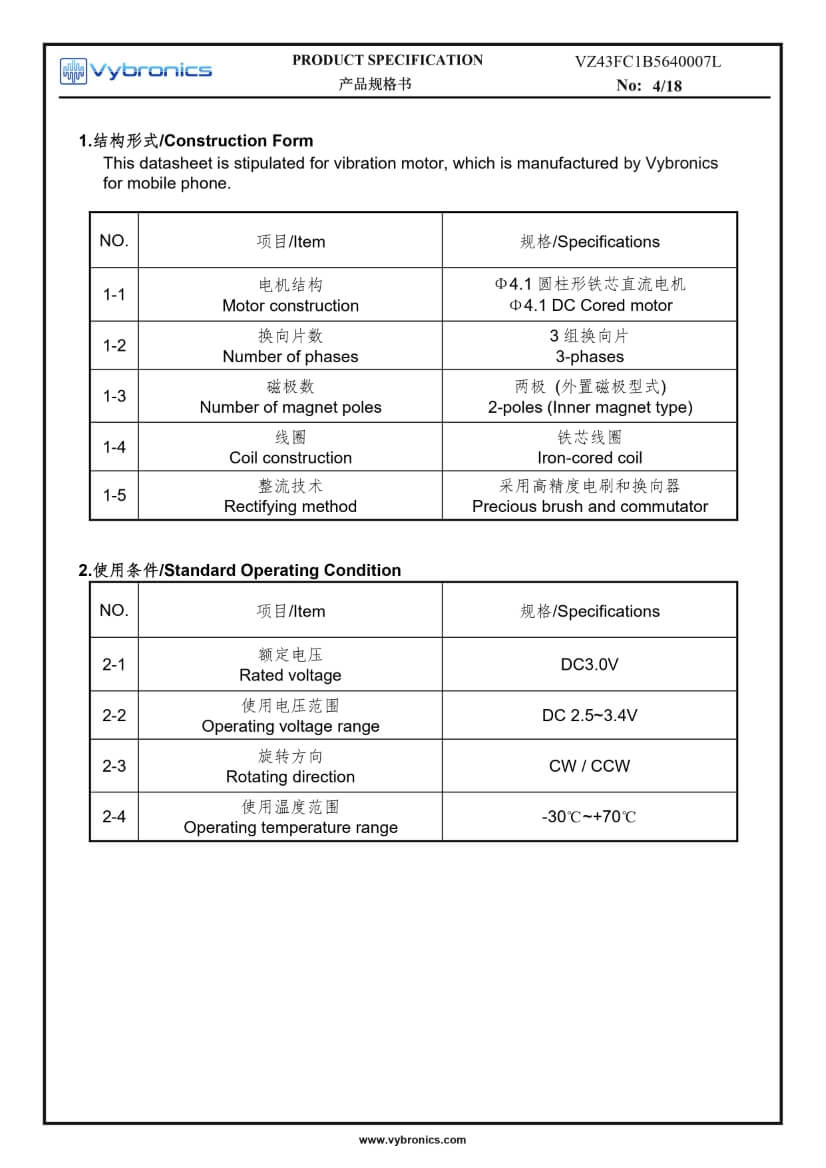

VZ43FC1B5640007L (old p/n Z43FC1B5640007L) Cylindrical core SMT Motor data 04VZ43FC1B5640007L (old p/n Z43FC1B5640007L) Cylindrical core SMT Motor data 05VZ43FC1B5640007L (old p/n Z43FC1B5640007L) Cylindrical core SMT Motor data 06VZ43FC1B5640007L (old p/n Z43FC1B5640007L) Cylindrical core SMT Motor data 07VZ43FC1B5640007L (old p/n Z43FC1B5640007L) Cylindrical core SMT Motor data 08VZ43FC1B5640007L (old p/n Z43FC1B5640007L) Cylindrical core SMT Motor data 09VZ43FC1B5640007L (old p/n Z43FC1B5640007L) Cylindrical core SMT Motor data 10VZ43FC1B5640007L (old p/n Z43FC1B5640007L) Cylindrical core SMT Motor data 11VZ43FC1B5640007L (old p/n Z43FC1B5640007L) Cylindrical core SMT Motor data 12

VZ43FC1B5640007L (old p/n Z43FC1B5640007L) Cylindrical core SMT Motor data 18
