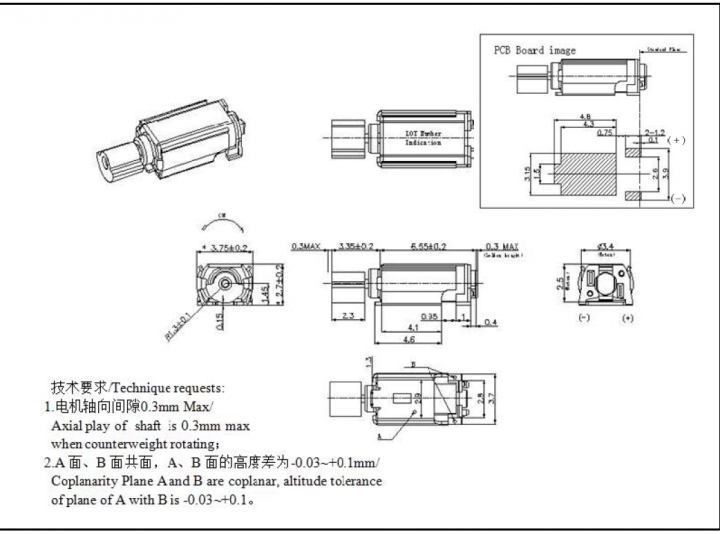

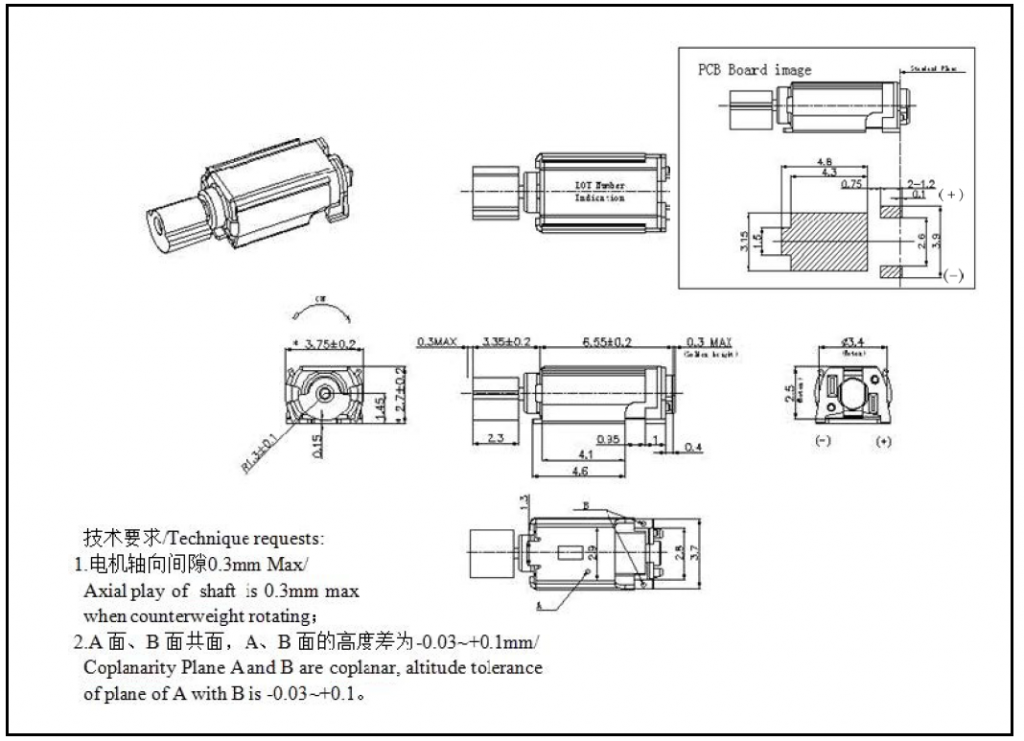

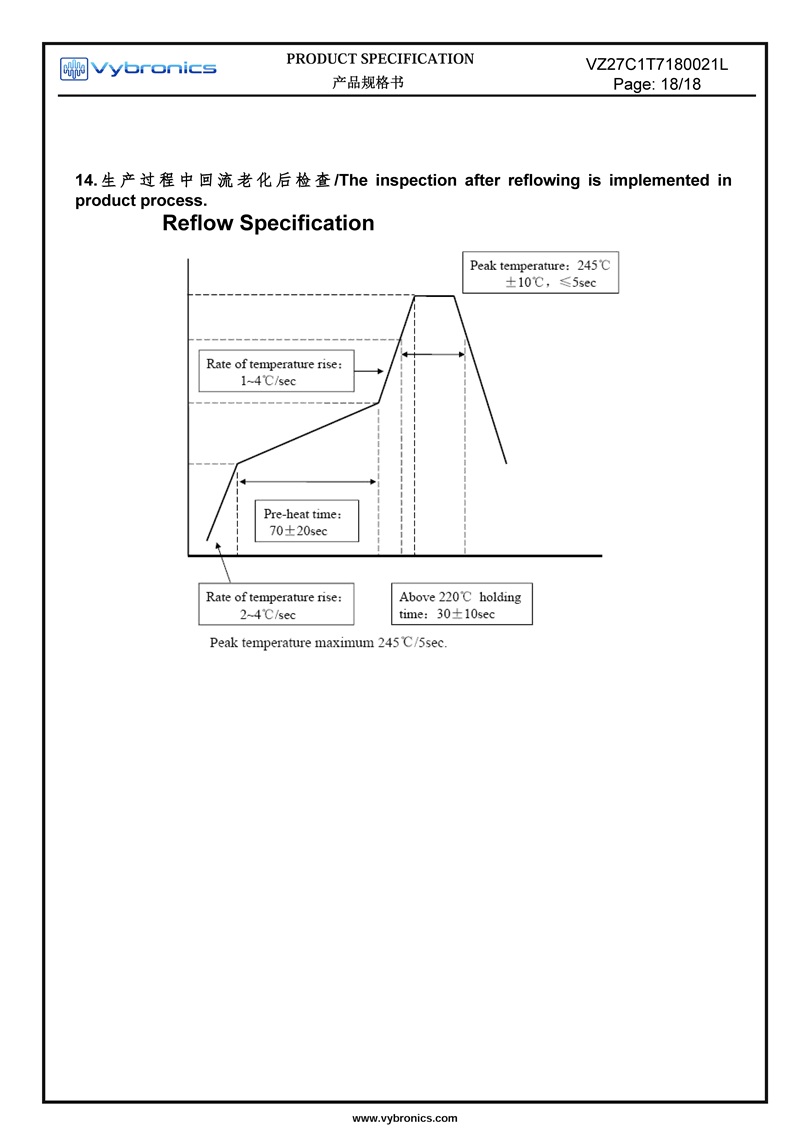

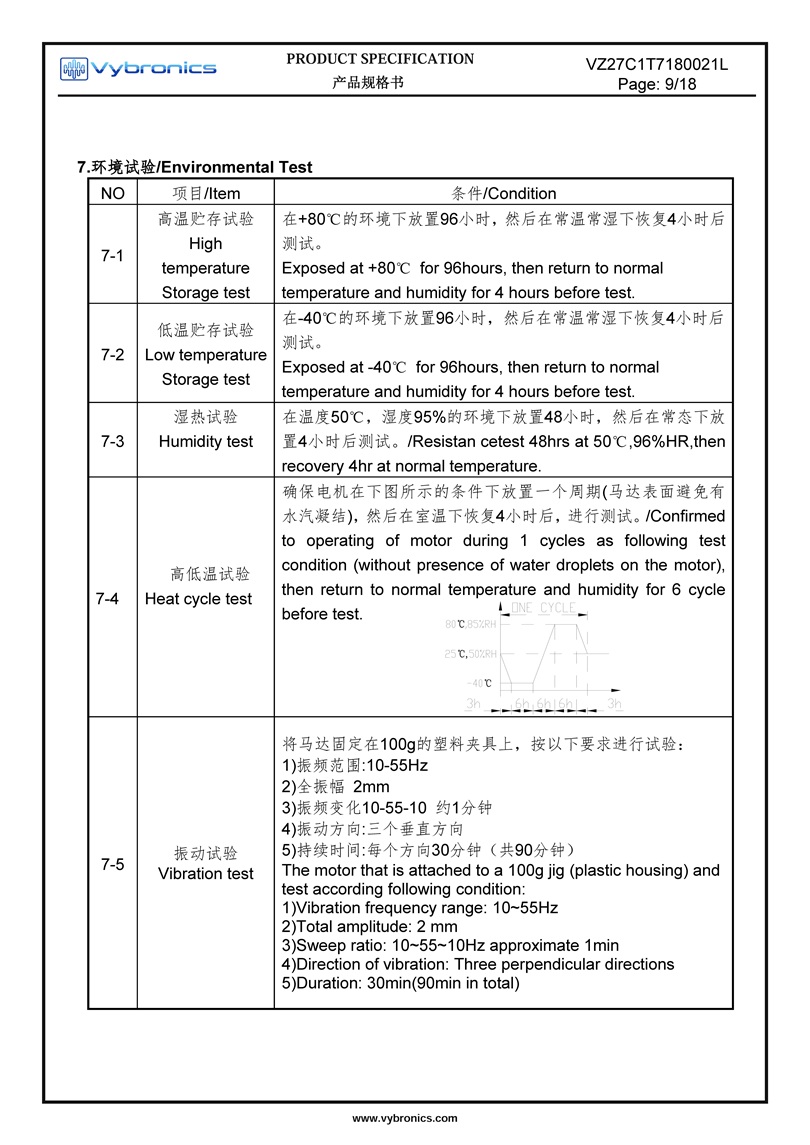

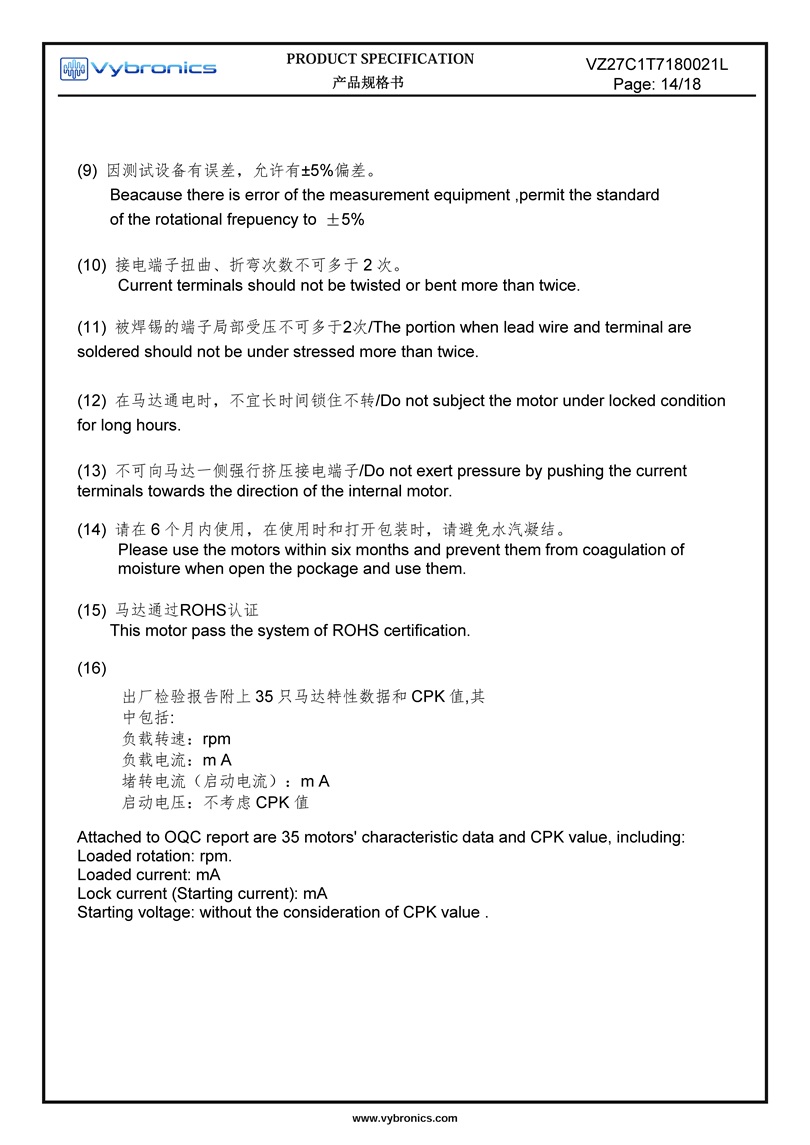

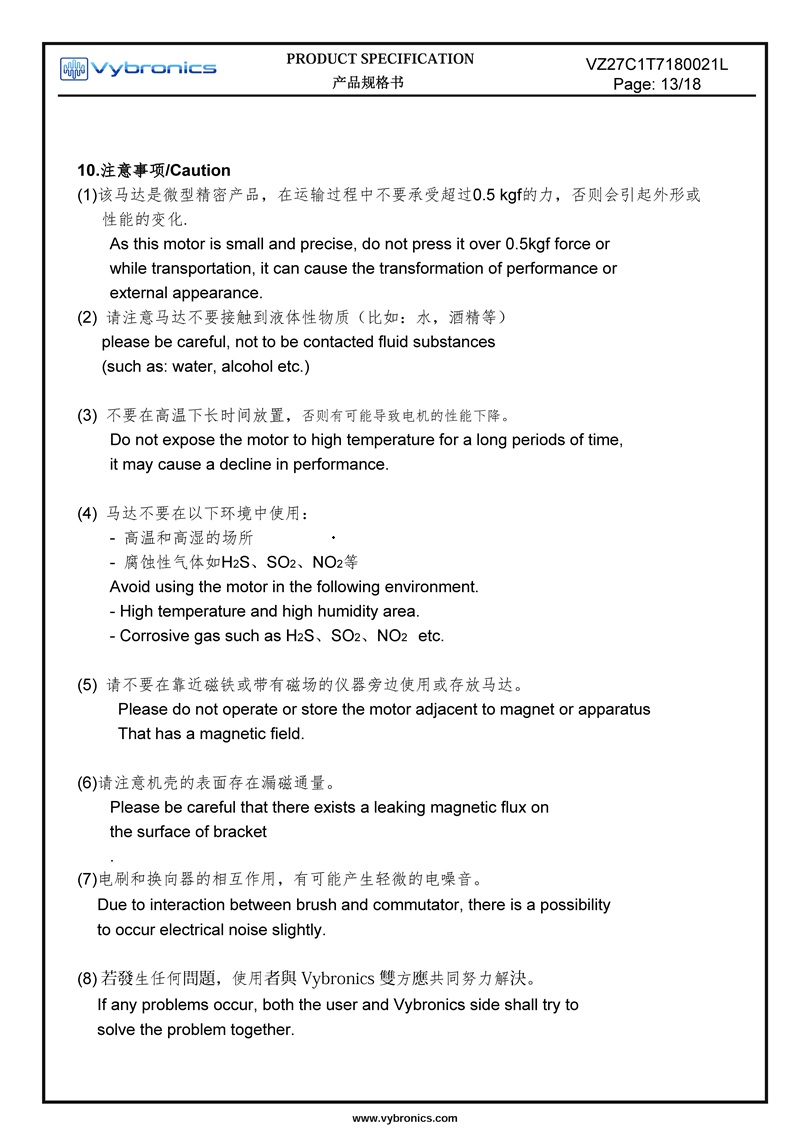

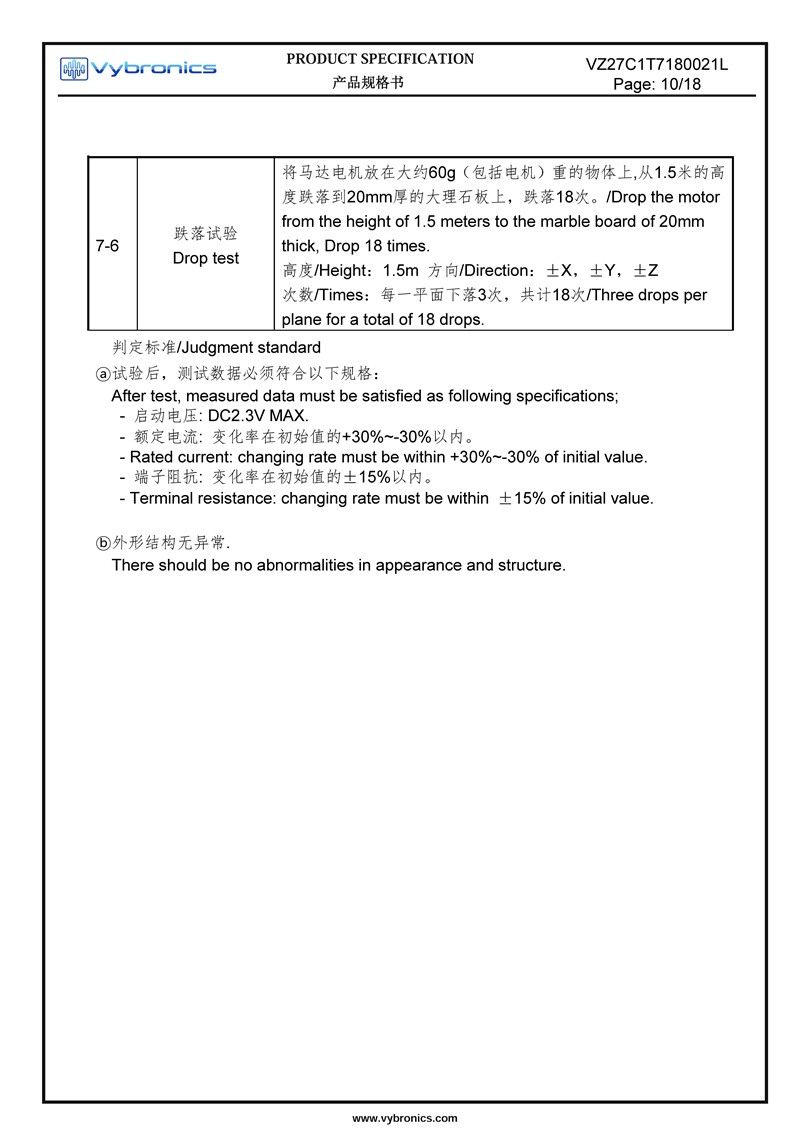

This SMD reflow solderable, core type vibration motor is ideal for haptic applications where a small ERM vibration motor is required. It is an excellent should for your NPI. We recommend cutting a small opening in the PCB directly below the rotating counter weight. This will ensure there is no interference in the event the tolerances are on the outer limits of our specifications. Please refer to the note on the drawing about this. Its supplied on tape / reel and is designed to be used with pick and place machines. Care must be taken to follow the reflow ovens temperature profile. This part can NOT be washed.

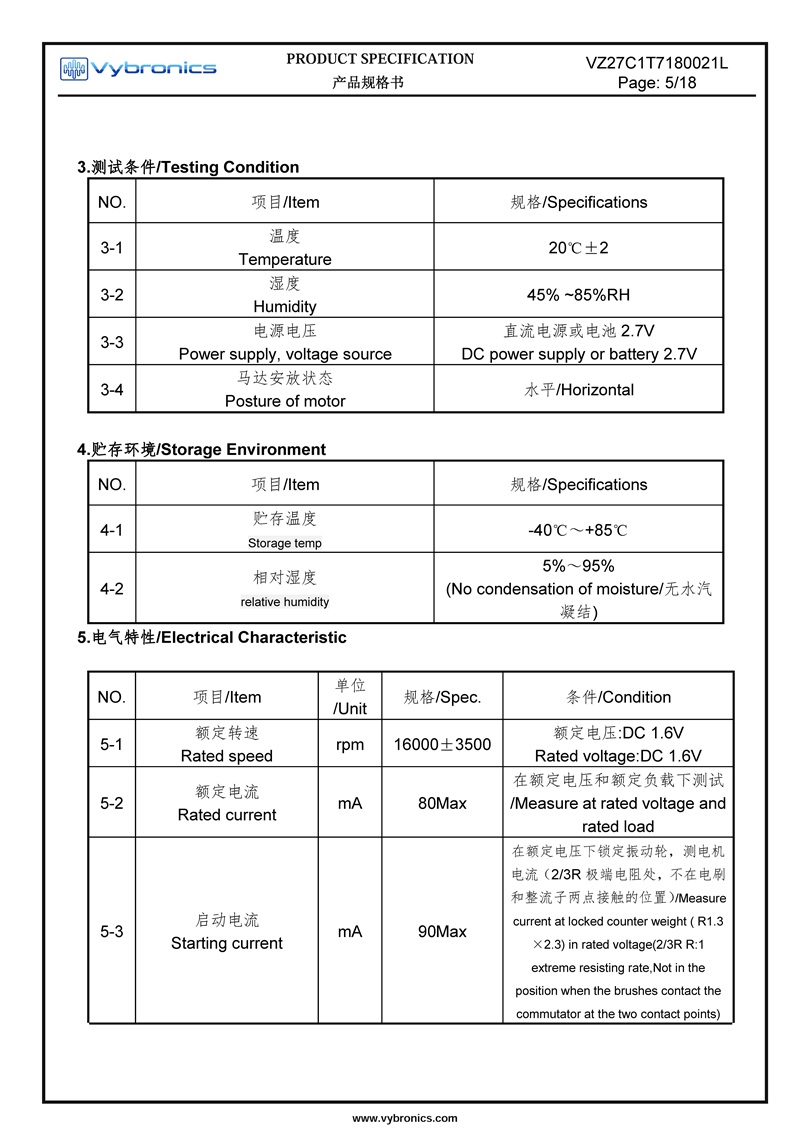

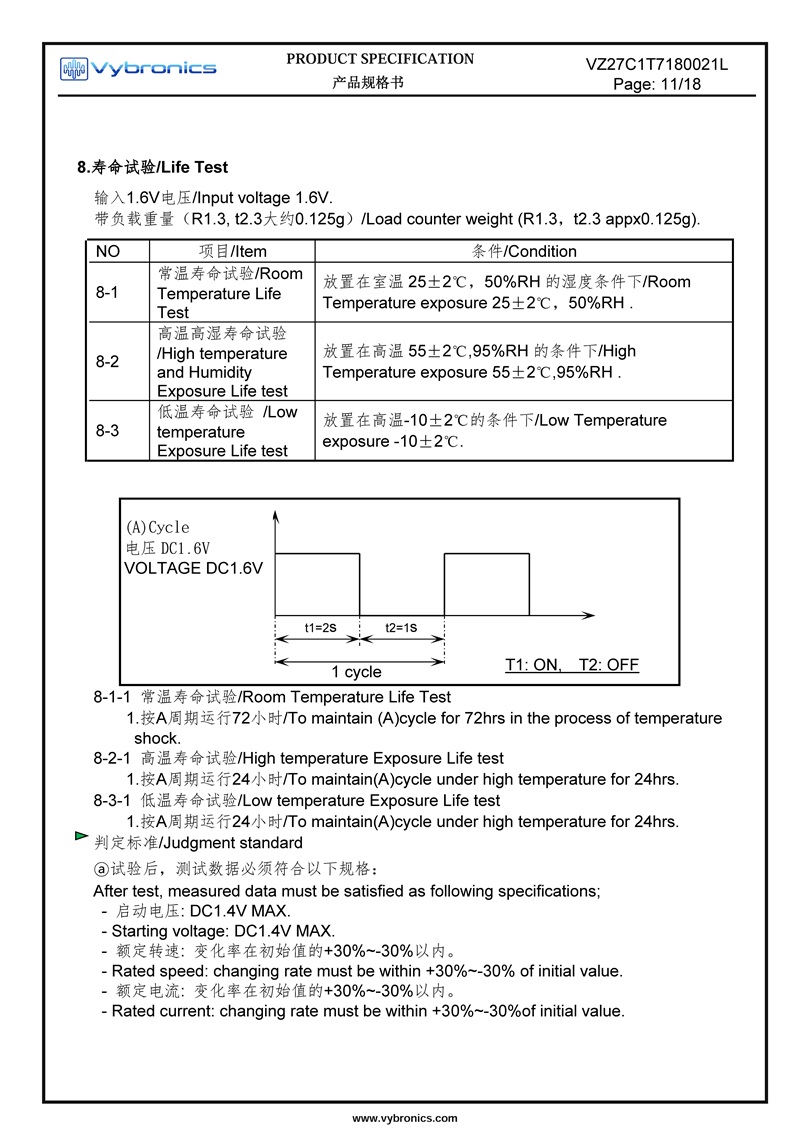

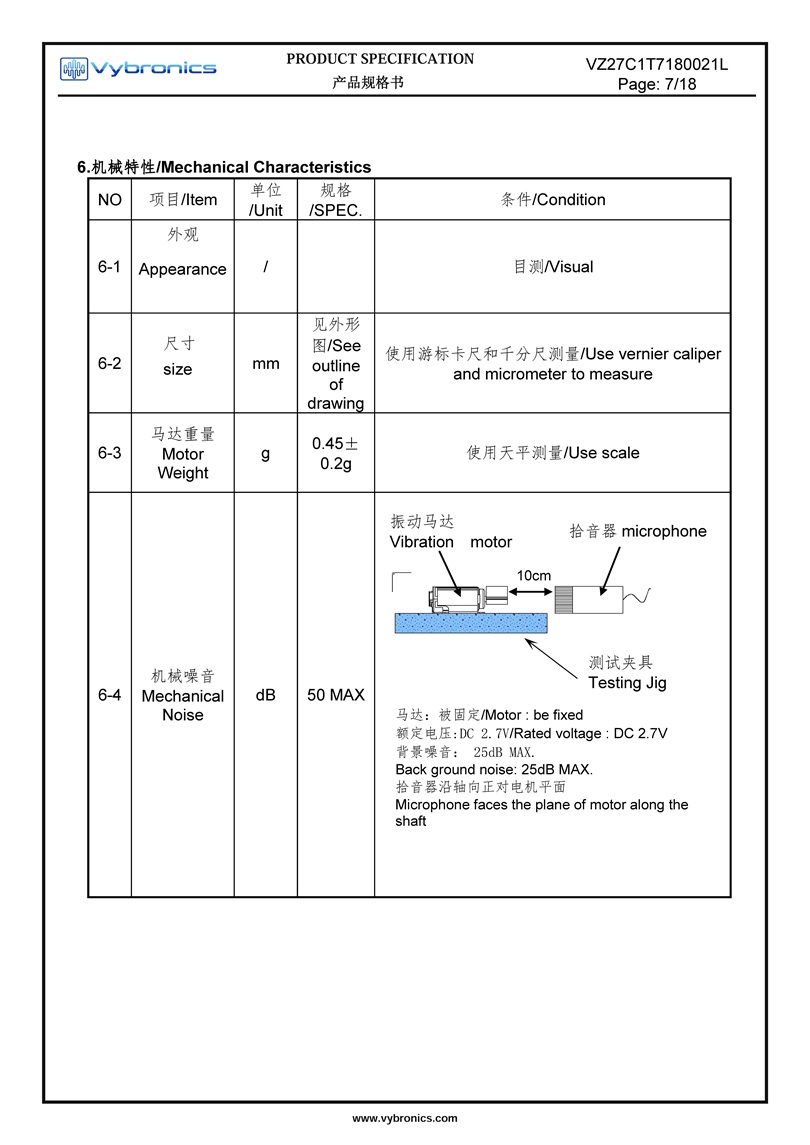

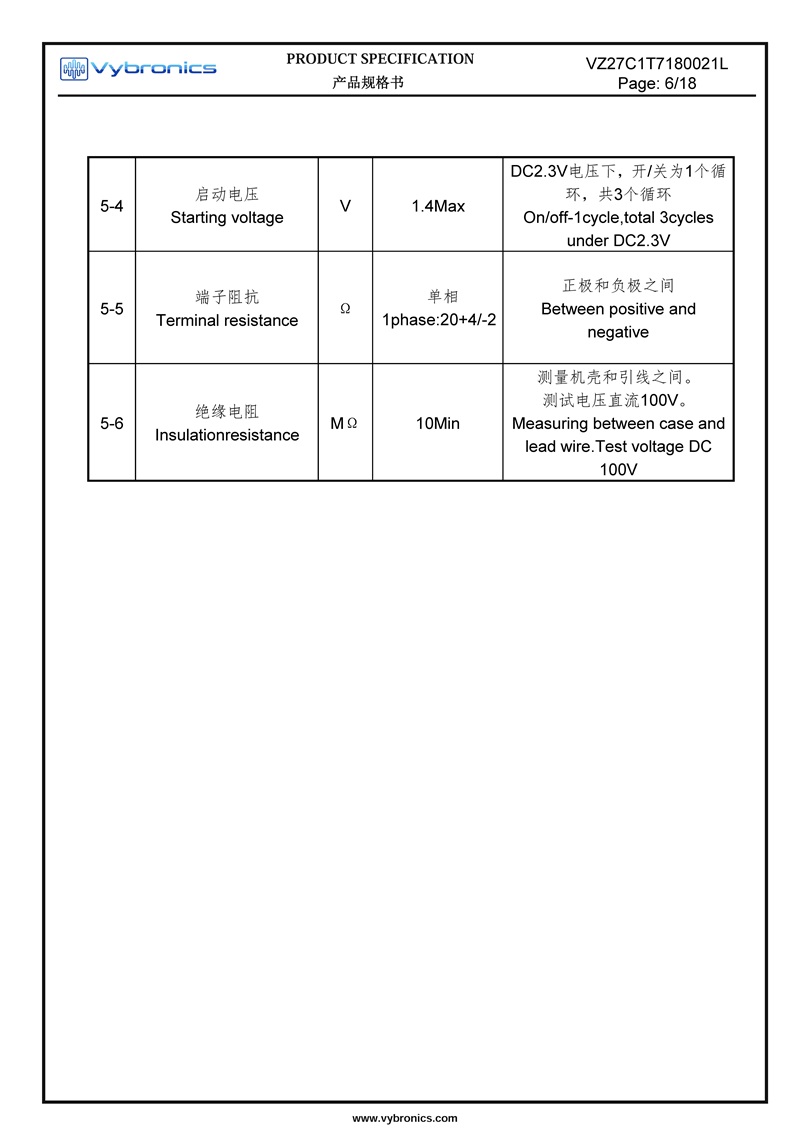

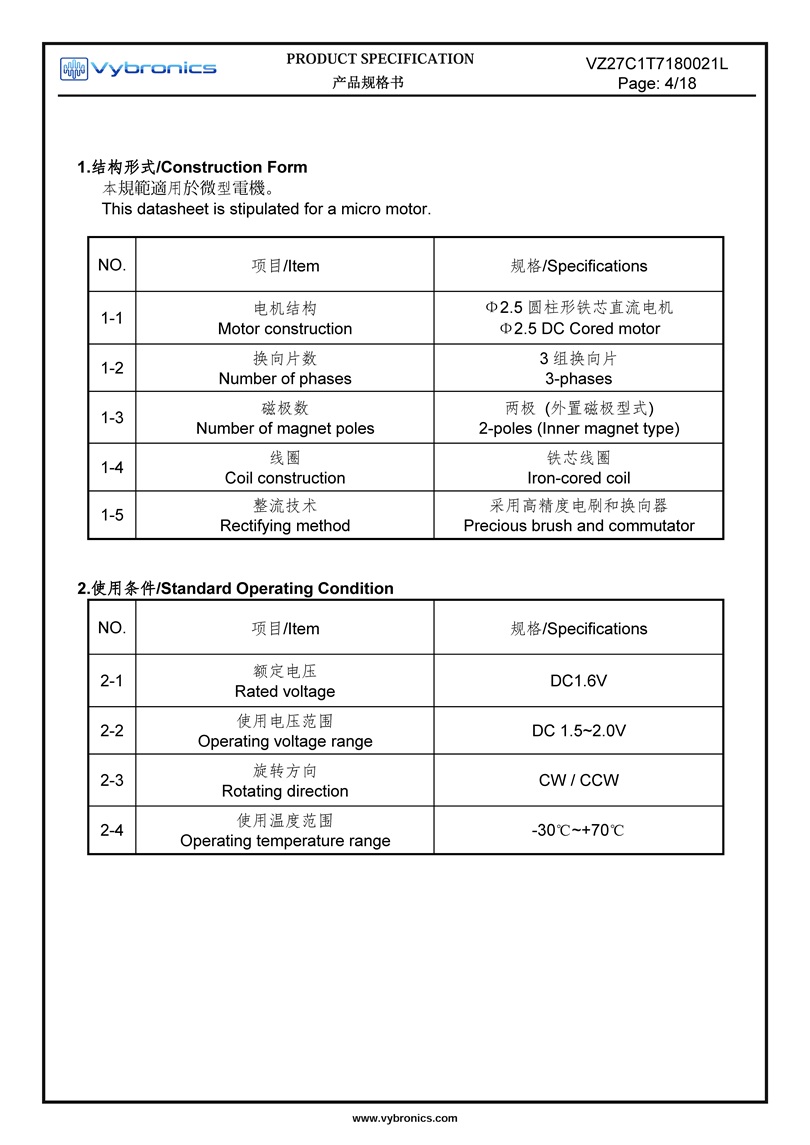

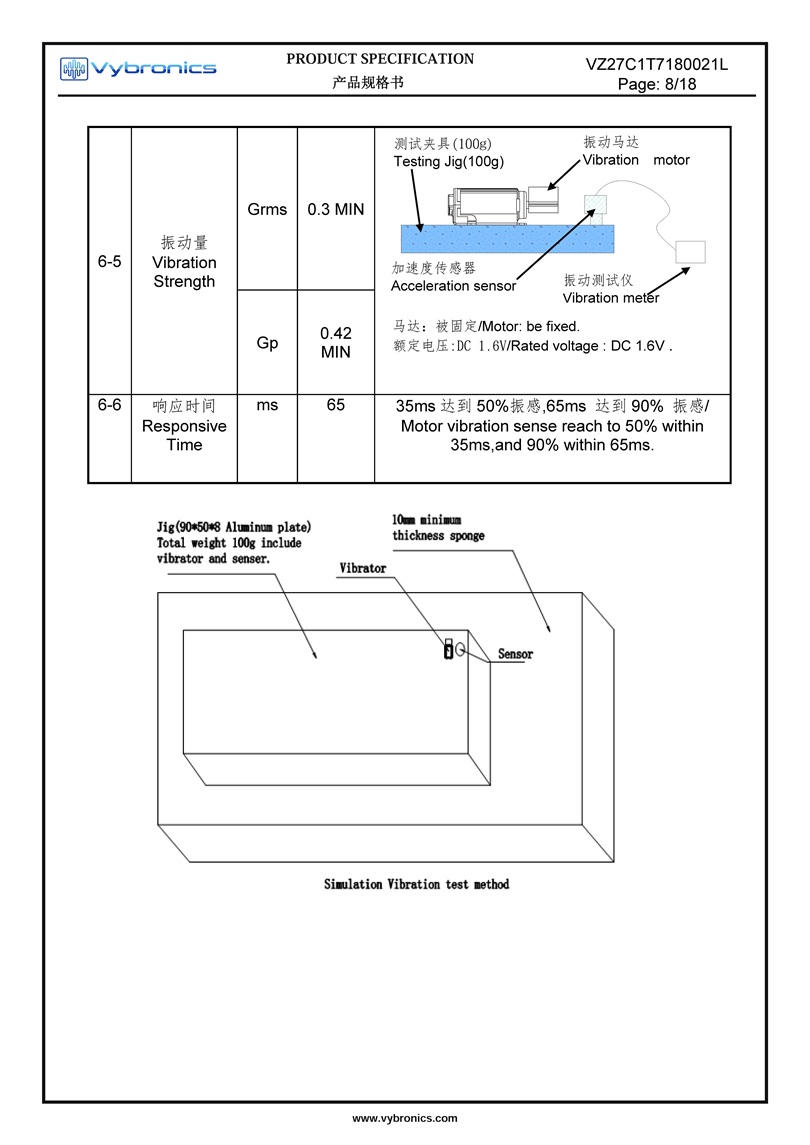

| Summary Of Specifications | |
| Height (mm): | 2.7 |
| Body (mm): | 6.55 |
| Overall (mm): | 9.9 |
| Rated Voltage (Vdc): | 1.6 |
| Operating Voltage (Vdc): | 1.5~2.0 |
| Rated Current MAX (mA): | 80 |
| Typical Current (mA): | 67 |
| Rated Speed (rpm): | 16000 |
| Vibration Force (Grms): | 0.30 |
| Packaging Spec / Tariff Info | |
| Part Packaging: | Tape / Reel |
| Qty per reel / tray: | 1000 |
| Quantity - Master box: | 4000 |
| Size - Master Box: | Call us |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4060 |
| 25% Exclusion Code: | 9903.88.69 |
| 25% Ex. Code Valid: | from June 14, 2024 thru Nov 10, 2026 |
| Country of Origin: | CHINA |
|
If you need samples, please Contact Us. |
|||
|

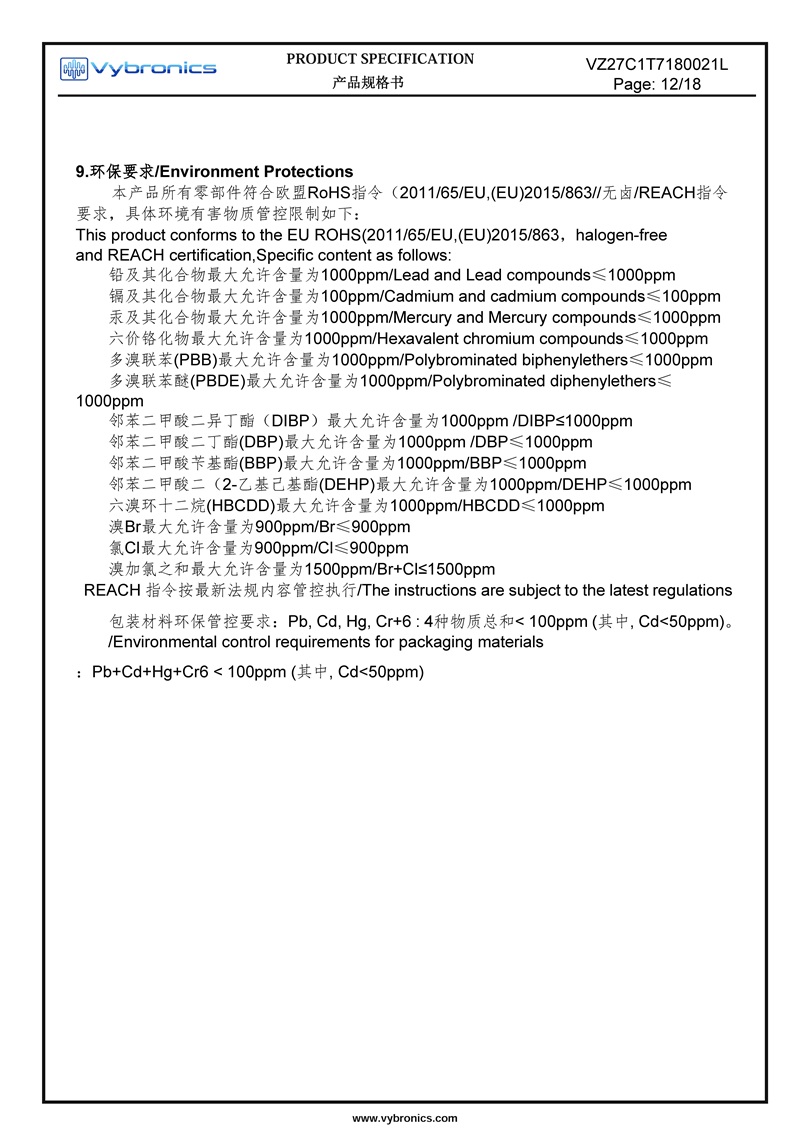

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:
