Vybronics VZ3TH8B171700L
Model Number: VZ3TH8B171700L
(old p/n: Z3TH8B171700L)

2.9mm Height | 3 V | Spring Contact | Vibration Motor

At a height of only 2.9 mm, the VZ3TH8B171700L has the lowest profile of any spring type vibration motor available today. It is based on our core type motor technology that has a proven track record of reliability. The rubber gasket also helps suppress unwanted mechanical noise. Please note that drawing shows springs in their fully compressed state which is NOT recommended and the will cause interference between the PCB and rotating counterweight.  See table in drawing that shows spring compression force versus spring height.  Alternately, a cut out may be made in the PCB to avoid any possibility of interference.     New MOQ is  30K  pcs

CLICK HERE to see photos of how this motor is typically mounted in the products housing.

Summary Of Specifications
Diameter/Height (mm): 2.5 / 2.9
Body (mm): 6.6
Overall (mm): 11.0
Rated Voltage (Vdc): 2.7
Operating Voltage (Vdc): 2.3~3.3
Rated Current MAX (mA): 100
Typical Current (mA): 77
Rated Speed (rpm): 13000
Vibration Force (Grms): 0.40
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 50
Quantity - Master box: 5000
Size - Master Box: 35*35*26CM
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025
Available from
DigiKey Logo
QTY In Stock: 0 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VZ3TH8B171700L (old p/n Z3TH8B171700L) Spring Contact Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

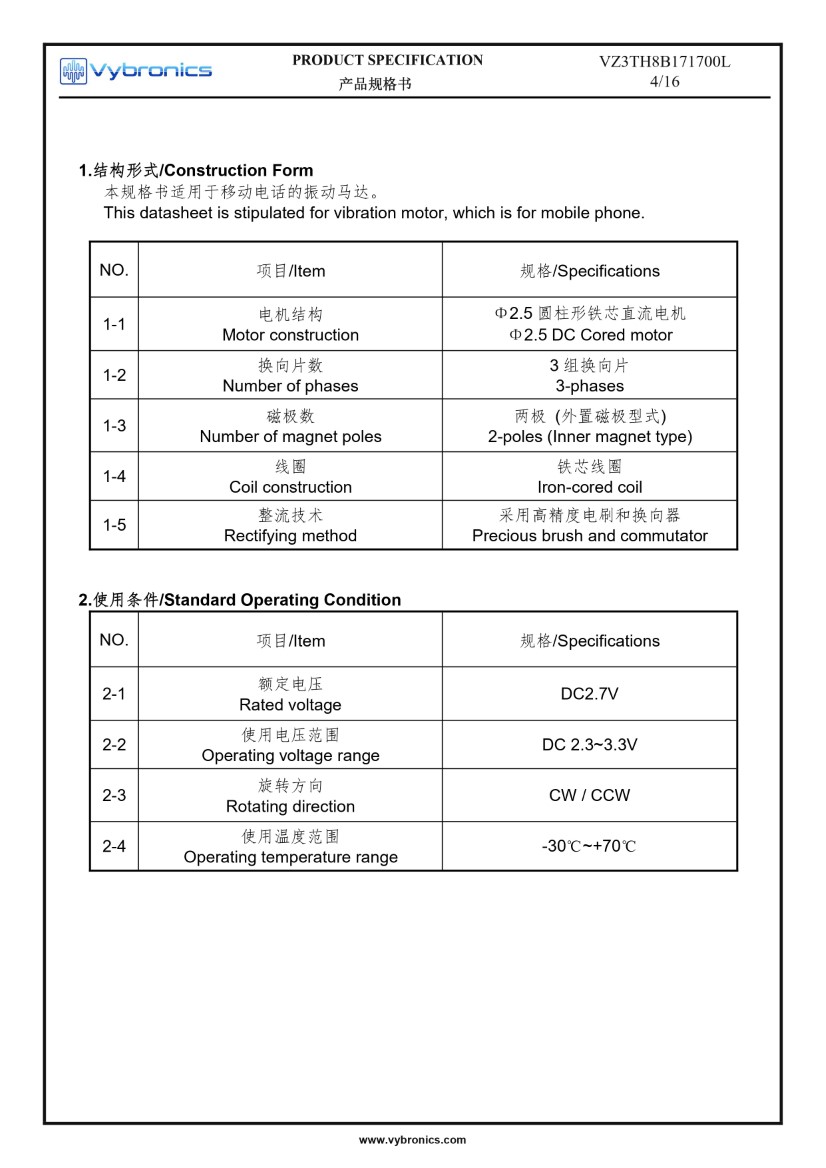

VZ3TH8B171700L (old p/n Z3TH8B171700L) Spring Contact Vibration Motor Data 04VZ3TH8B171700L (old p/n Z3TH8B171700L) Spring Contact Vibration Motor Data 05VZ3TH8B171700L (old p/n Z3TH8B171700L) Spring Contact Vibration Motor Data 06VZ3TH8B171700L (old p/n Z3TH8B171700L) Spring Contact Vibration Motor Data 07VZ3TH8B171700L (old p/n Z3TH8B171700L) Spring Contact Vibration Motor Data 08VZ3TH8B171700L (old p/n Z3TH8B171700L) Spring Contact Vibration Motor Data 09VZ3TH8B171700L (old p/n Z3TH8B171700L) Spring Contact Vibration Motor Data 10VZ3TH8B171700L (old p/n Z3TH8B171700L) Spring Contact Vibration Motor Data 11VZ3TH8B171700L (old p/n Z3TH8B171700L) Spring Contact Vibration Motor Data 12
