KOTL Jinlong Z4KH2B0470653N
Model Number: VZ4KH2B0470653N
(old p/n: Z4KH2B0470653N)

5.95mm Height | 3 V | Spring Contact | Vibration Motor

The VZ4KH2B0470653N vibration motor is member of our VZ4KH series of spring contact, surface mount motors. It is our most powerful 4mm compression spring motor. The motor is surrounded by a rubber boot that allows it to be press fit into the desired location in your products plastic housing. Normal MOQ: 2000 pcs, but smaller sample lots are available for prototyping.

Summary Of Specifications
Diameter/Height (mm): 4.0 / 5.95
Body (mm): 11.4
Overall (mm): 16.2
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.2~3.6
Rated Current MAX (mA): 75
Typical Current (mA): 59
Rated Speed (rpm): 11000
Vibration Force (G): 1.20
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS Tarrif: 8501.10.4060
USA 25% Exemption: NONE
Samples
Available from
DigiKey Logo
Contact Us for
quotes on 2K+ pcs
Add To Favorite List

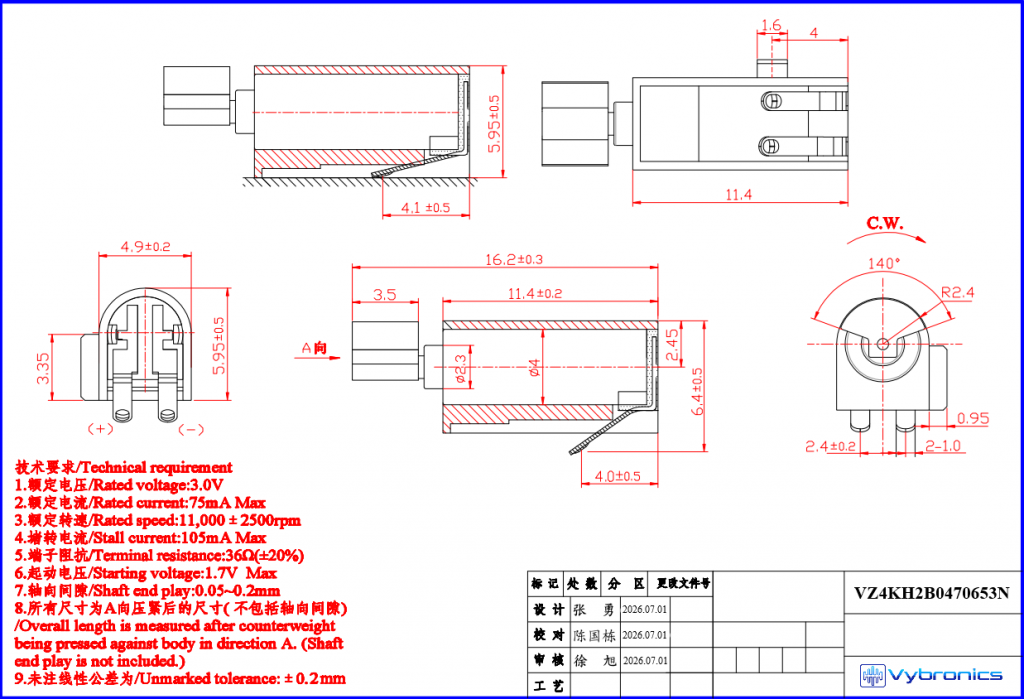

VZ4KH2B0470653N (part p/n Z4KH2B0470653N) SMT Spring Contacts Surface Mount Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

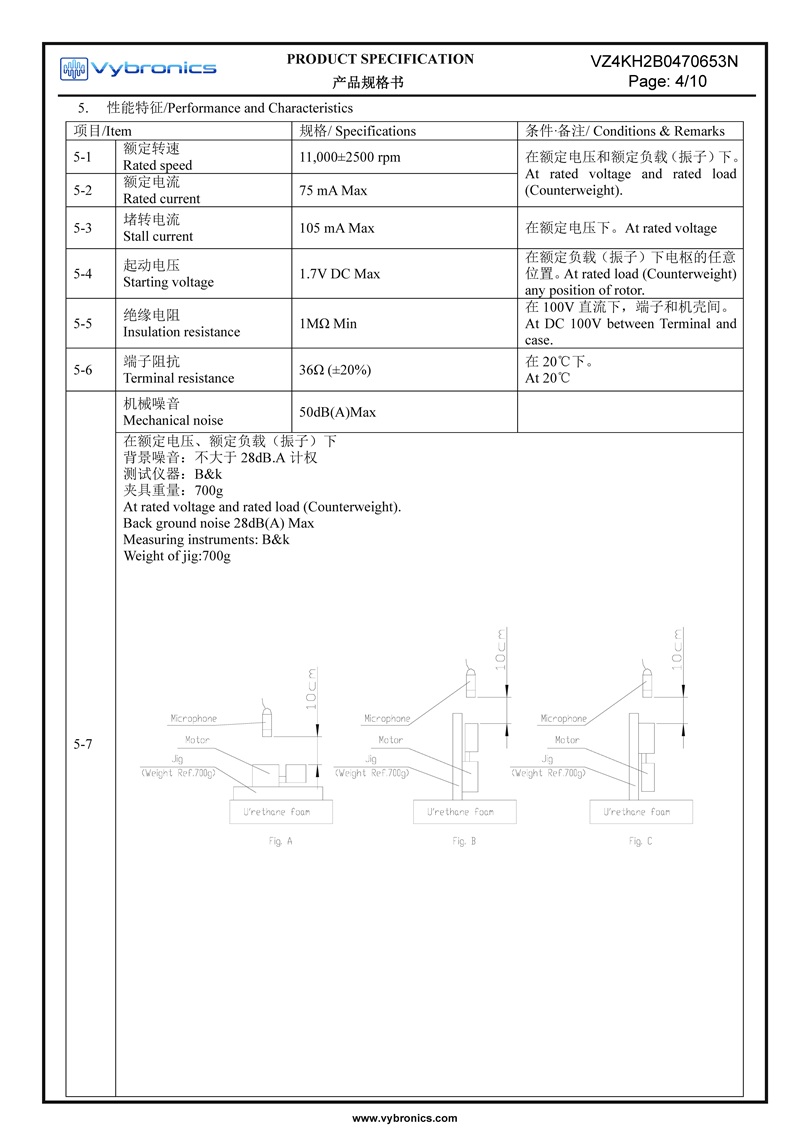

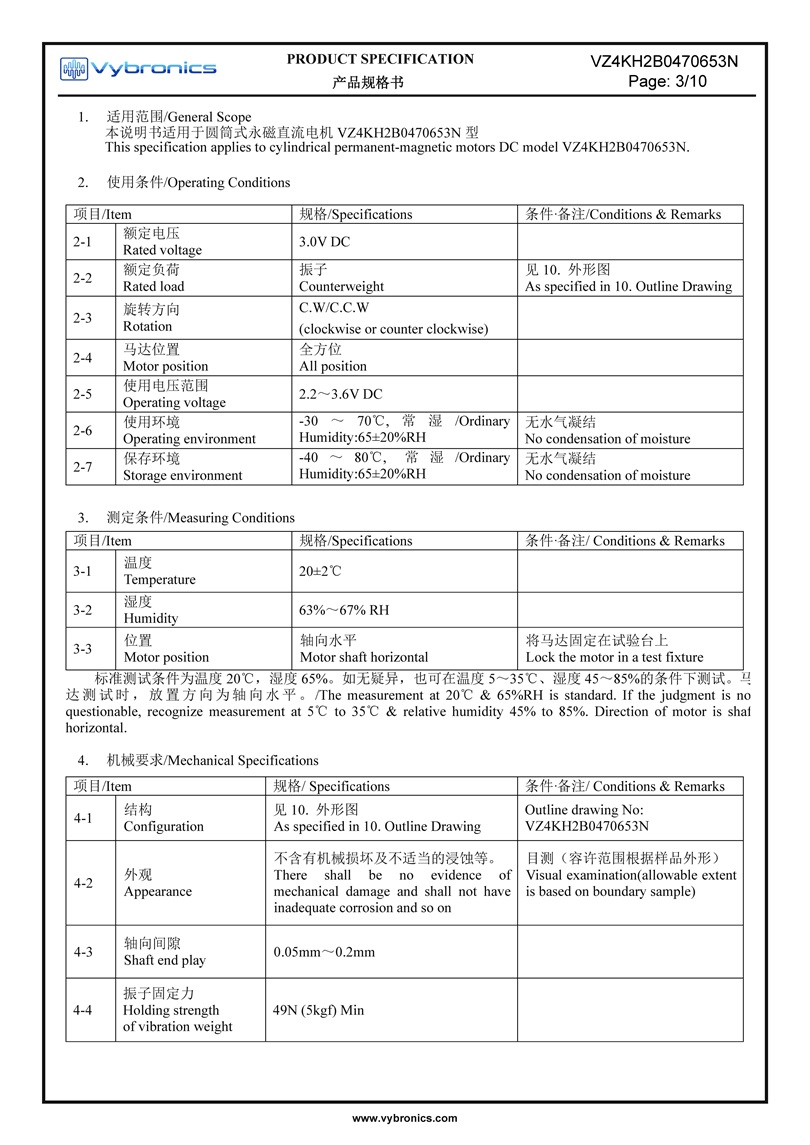

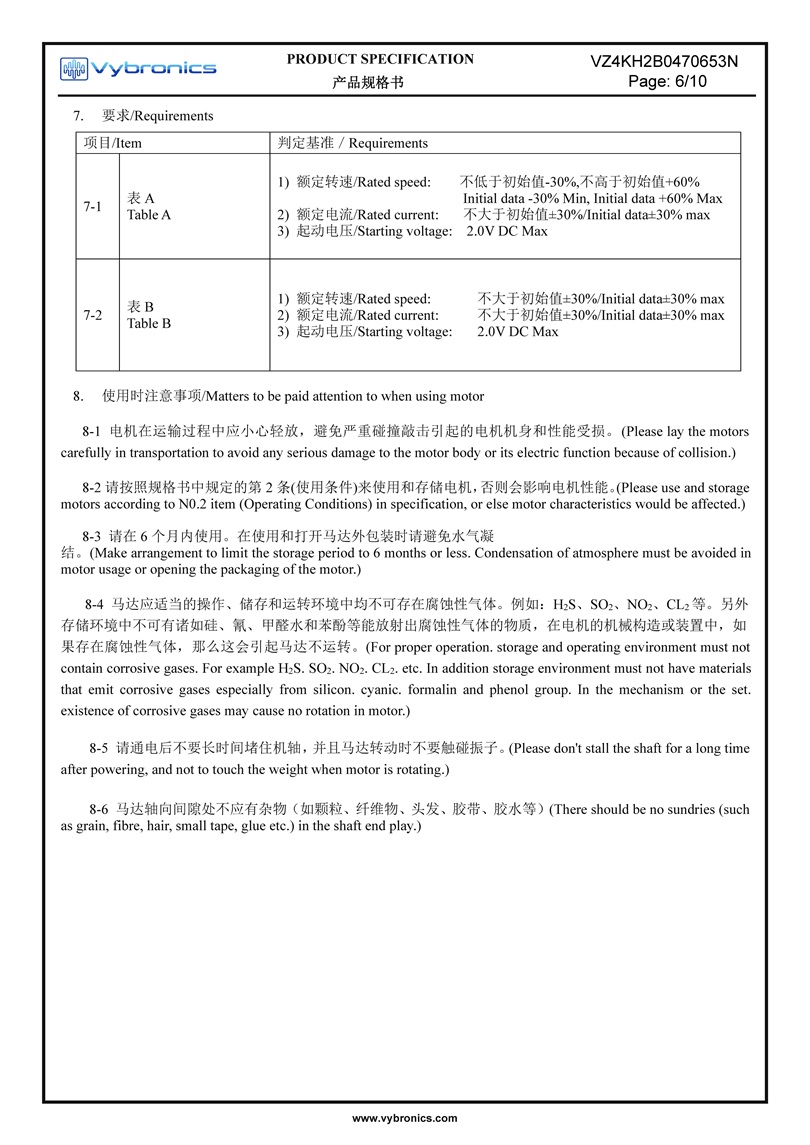

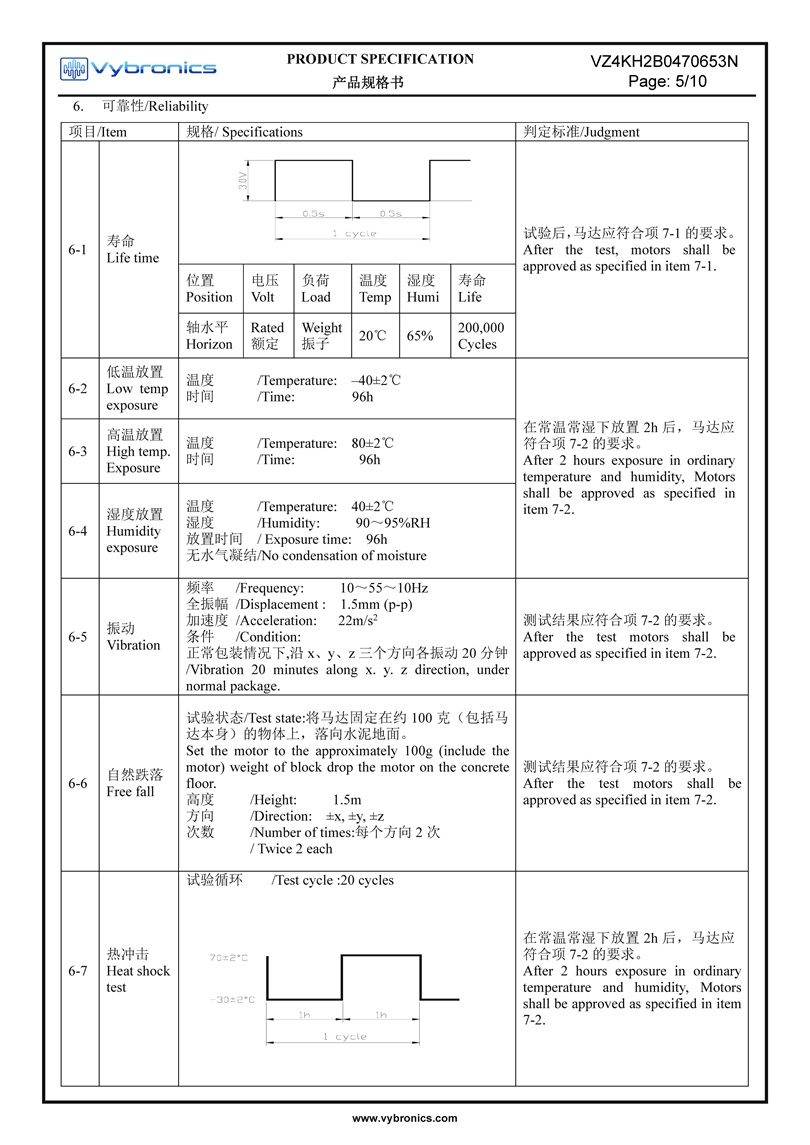

VZ4KH2B0470653N (part p/n Z4KH2B0470653N) SMT Spring Contacts Surface Mount Vibration Motor Data 03VZ4KH2B0470653N (part p/n Z4KH2B0470653N) SMT Spring Contacts Surface Mount Vibration Motor Data 04VZ4KH2B0470653N (part p/n Z4KH2B0470653N) SMT Spring Contacts Surface Mount Vibration Motor Data 05VZ4KH2B0470653N (part p/n Z4KH2B0470653N) SMT Spring Contacts Surface Mount Vibration Motor Data 06
