Vybronics VZ4TH1B0611160L
Model Number: VZ4TH1B0611160L
(old p/n: Z4TH1B0611160L)

5.8mm Height | 3 V | Spring Contact | Vibration Motor

This vibration motor with spring contacts is surrounded by a silicon rubber boot sleeve that allows it to be press fit into the desired location in your devices housing. It has a unique contact configuration that puts the electrical point of contact at the rear of the motor. This might be required based on the PCB and or mechanical design of the product.

CLICK  HERE to see photos of how this motor is typically mounted in the products housing.

Summary Of Specifications
Diameter/Height (mm): 4.0 / 5.8
Body (mm): 9.0
Overall (mm): 13.2
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.4~3.6
Rated Current MAX (mA): 100
Typical Current (mA): 80
Rated Speed (rpm): 11000
Vibration Force (Grms): 1.00
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 50
Quantity - Master box: 5000
Size - Master Box: 31.5*31.5*18.5CM
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: thru May 31 2024
Available from
DigiKey Logo
QTY In Stock: 823 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List

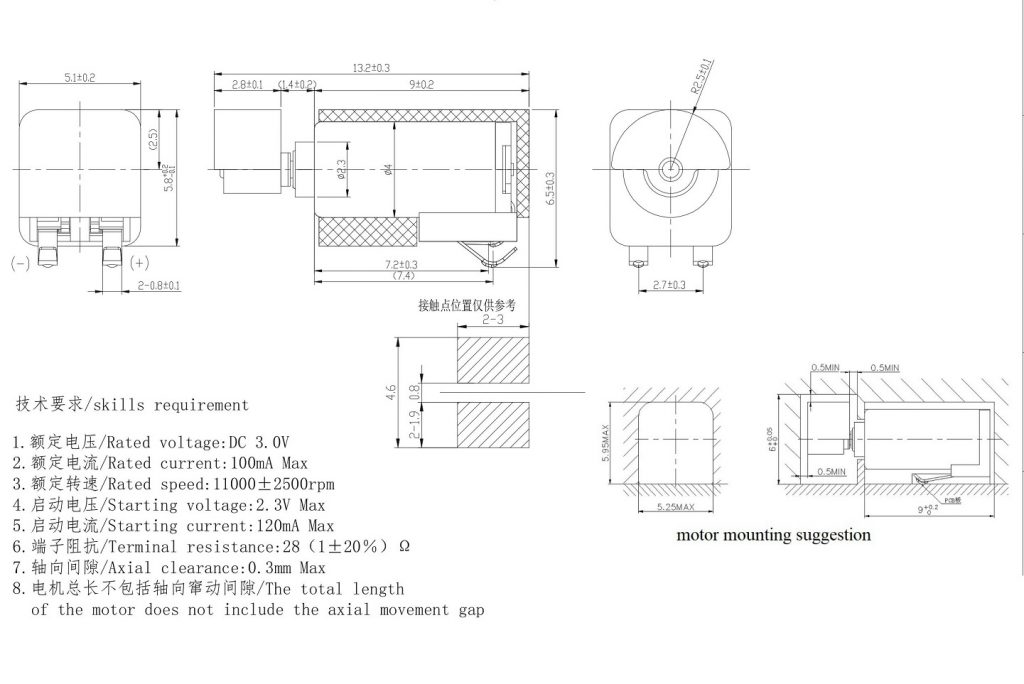

VZ4TH1B0611160L (old p/n Z4TH1B0611160L) Spring Contact Vibration Motor with rubber booth drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

VZ4TH1B0611160L (old p/n Z4TH1B0611160L) Spring Contact Vibration Motor with rubber booth data 03VZ4TH1B0611160L (old p/n Z4TH1B0611160L) Spring Contact Vibration Motor with rubber booth data 04VZ4TH1B0611160L (old p/n Z4TH1B0611160L) Spring Contact Vibration Motor with rubber booth data 05VZ4TH1B0611160L (old p/n Z4TH1B0611160L) Spring Contact Vibration Motor with rubber booth data 06
