Vybronics VZ4KC1B1051202
360view
Model Number: VZ4KC1B1051202
(old p/n: Z4KC1B1051202)

4 mm | 3 V | PCB Mount Thru Hole | Vibration Motor

The VZ4KC1B1051202 is our smallest diameter through hole PCB mounted vibration motor.  It is based on our powerful 4mm diameter VZ4K series it generates a sizeable 1.3 G of vibration force.   Ideal for haptic feedback applications that required a small but powerful ERM vibration motor.

Please read our special soldering guidelines for this part.

Summary Of Specifications
Diameter (mm): 4.0
Body (mm): 11.3
Overall (mm): 15.6
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.2~3.6
Rated Current MAX (mA): 70
Typical Current (mA): 42
Rated Speed (rpm): 14000
Vibration Force (Grms): 1.20
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025
Available from
DigiKey Logo
QTY In Stock: 4,031 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VZ4KC1B1051202 (old p/n Z4KC1B1051202) PCB Mount Thru Hole Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

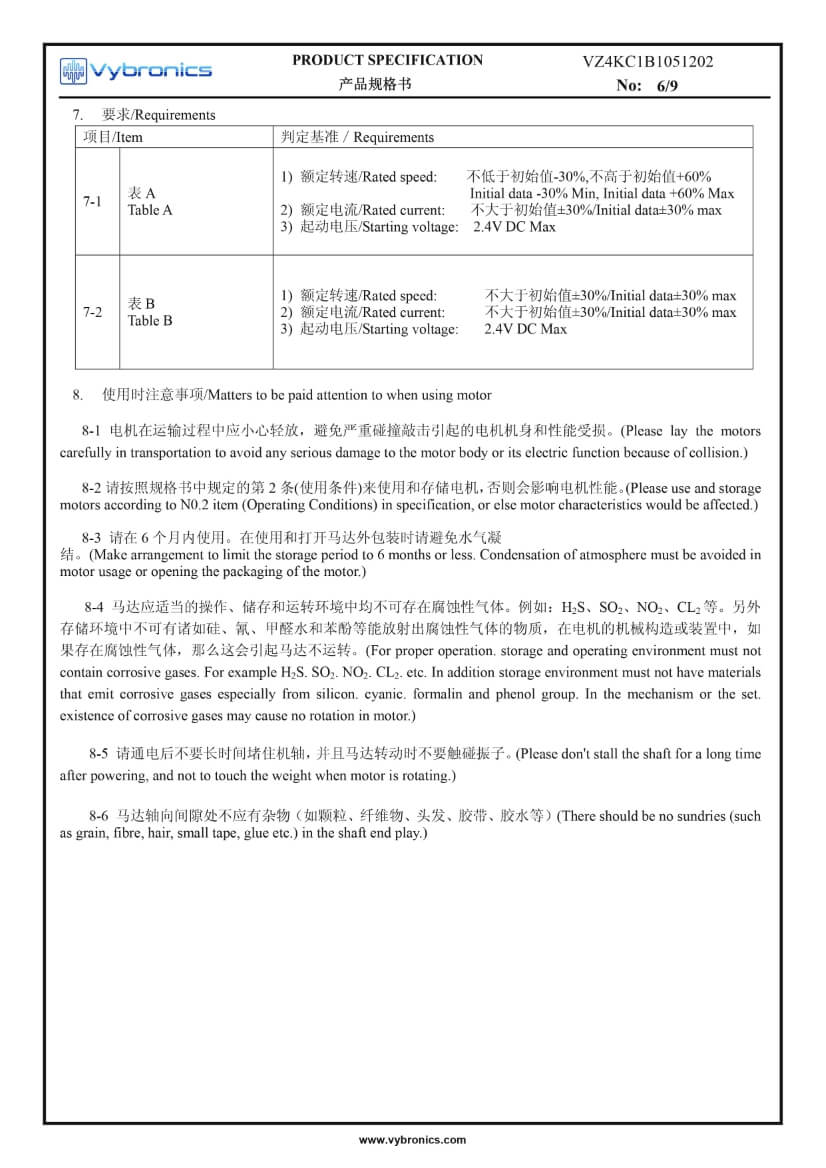

VZ4KC1B1051202 (old p/n Z4KC1B1051202) PCB Mount Thru Hole Vibration Motor data 03VZ4KC1B1051202 (old p/n Z4KC1B1051202) PCB Mount Thru Hole Vibration Motor data 04VZ4KC1B1051202 (old p/n Z4KC1B1051202) PCB Mount Thru Hole Vibration Motor data 05VZ4KC1B1051202 (old p/n Z4KC1B1051202) PCB Mount Thru Hole Vibration Motor data 06
