Vybronics VZ6SL2A0060071
Model Number: VZ6SL2A0060071
(old p/n: Z6SL2A0060071)

6 mm | 1.3 V | PCB Mounted Thru-Hole | Vibration Motor

This motor is identical to our VZ6SL2A0060001 vibrator motor but with a through-hole PCB mounting bracket.

Summary Of Specifications
Diameter (mm): 6.0
Body (mm): 10.0
Overall (mm): 14.1
Rated Voltage (Vdc): 1.3
Operating Voltage (Vdc): 0.9~1.6
Rated Current MAX (mA): 90
Typical Current (mA): 65
Rated Speed (rpm): 8500
Vibration Force (Grms): 0.80
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025


If you need samples,
please Contact Us.
Add To Favorite List

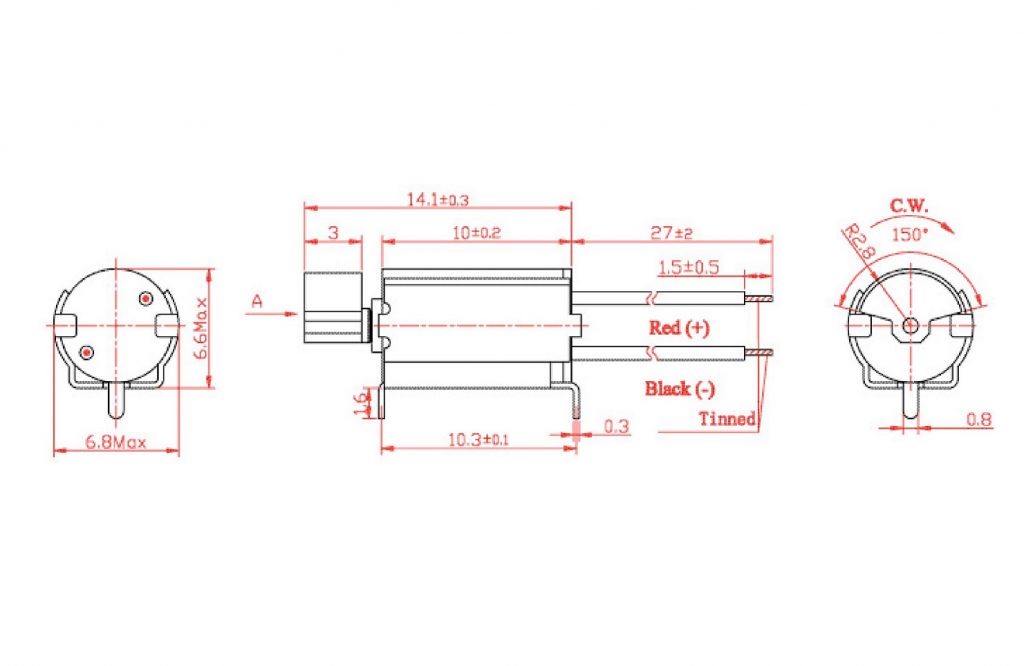

VZ6SL2A0060071 (old p/n Z6SL2A0060071) Surface Mount PCB Mount Through Hole Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

VZ6SL2A0060071 (old p/n Z6SL2A0060071) Surface Mount PCB Mount Through Hole Vibration Motor data 02VZ6SL2A0060071 (old p/n Z6SL2A0060071) Surface Mount PCB Mount Through Hole Vibration Motor data 03VZ6SL2A0060071 (old p/n Z6SL2A0060071) Surface Mount PCB Mount Through Hole Vibration Motor data 04VZ6SL2A0060071 (old p/n Z6SL2A0060071) Surface Mount PCB Mount Through Hole Vibration Motor data 05VZ6SL2A0060071 (old p/n Z6SL2A0060071) Surface Mount PCB Mount Through Hole Vibration Motor data 06
