At 0.9 Grms, the VZ3TL2B0640080P generates the highest G force of any 3.2mm diameter motor. This motor includes a rubber gasket that help facilitate mounting in a molded pocket, and mitigate unwanted mechanical noise when the motor is actuated. It is available in custom lead lengths as short as 8 mm. Connectorization is also possible for MOQ: 2000
| Summary Of Specifications | |

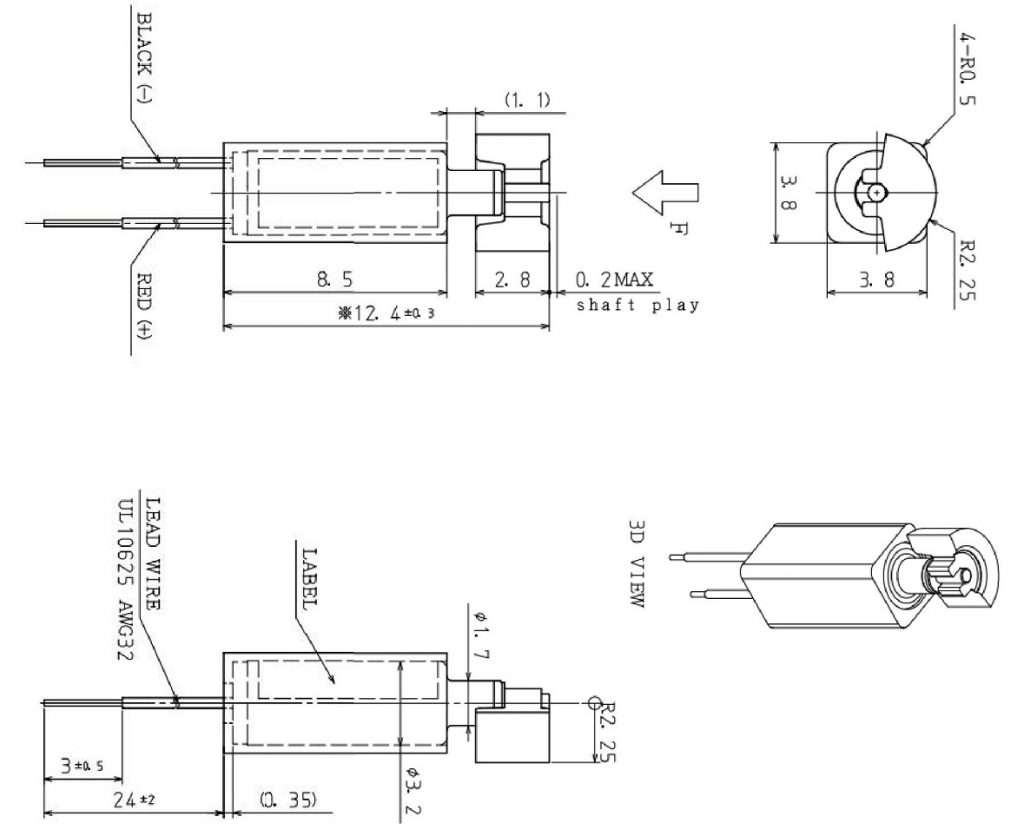

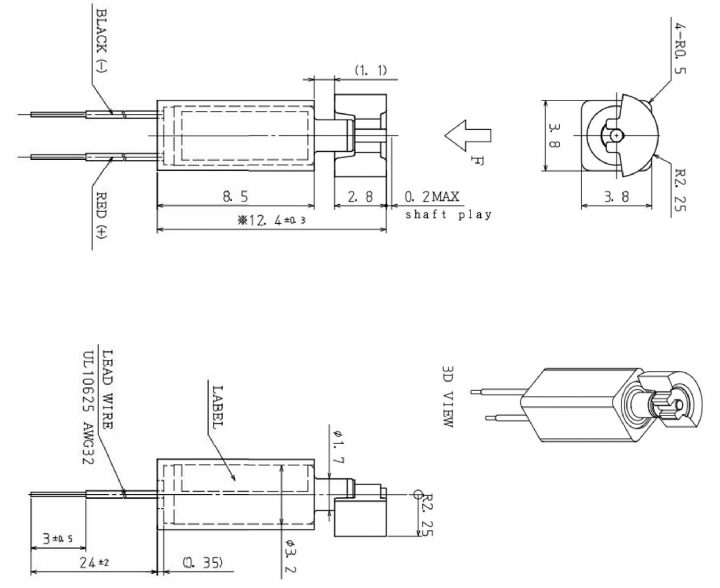

| Diameter/Height (mm): | 3.2 / 3.8 |
| Body (mm): | 8.5 |
| Overall (mm): | 12.4 |
| Rated Voltage (Vdc): | 3.0 |
| Operating Voltage (Vdc): | 2.5~3.6 |
| Rated Current MAX (mA): | 80 |
| Typical Current (mA): | 67 |
| Rated Speed (rpm): | 10500 |
| Vibration Force (Grms): | 0.75 |
| Packaging Spec | |
| Part Packaging: | Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 4000 |
| Size - Master Box: | Call us |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4060 |
| 25% Exclusion Code: | 9903.88.67 |
| 25% Ex. Code Valid: | thru May 31 2024 |
|
If you need samples, please Contact Us. |
|||
|
This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:
