Vybronics VZ4SL2B0280001
Model Number: VZ4SL2B0280001
(old p/n: Z4SL2B0280001)

4mm Diameter | 3 V | Wire Leads | Vibration Motor

The VZ4SLB02800001 is rated at 3 V and is a member of our VZ4SL series of leaded vibration motors. The VZ4SL series produces less vibration energy than our VZ4KL series, but substantially more than our VZ4TL series. It is also available with a different counter-weight. See VZ4SL2B0070001. If your order is for a minimum of 1000 pieces we can add a connector on the end of the wire.

Summary Of Specifications
Diameter/Height (mm): 4.0
Body (mm): 10.0
Overall (mm): 15.9
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.2~3.6
Rated Current MAX (mA): 70
Typical Current (mA): 46
Rated Speed (rpm): 12000
Vibration Force (Grms): 1.85
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: thru Sept 30 2023


If you need samples,
please Contact Us.
Add To Favorite List
VZ4SL2B0280001 (old p/n Z4SL2B0280001) Wire Leads Cylindrical Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

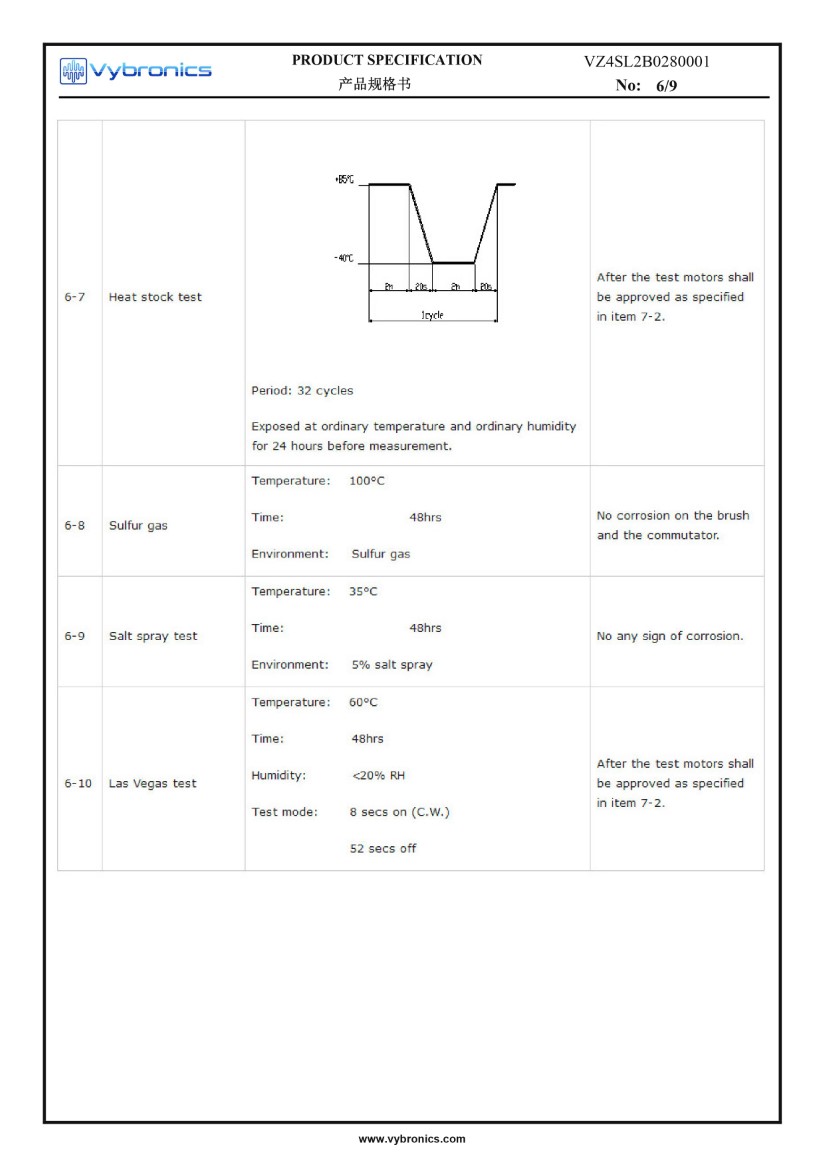

VZ4SL2B0280001 (old p/n Z4SL2B0280001) Wire Leads Cylindrical Vibration Motor data 02VZ4SL2B0280001 (old p/n Z4SL2B0280001) Wire Leads Cylindrical Vibration Motor data 03VZ4SL2B0280001 (old p/n Z4SL2B0280001) Wire Leads Cylindrical Vibration Motor data 04VZ4SL2B0280001 (old p/n Z4SL2B0280001) Wire Leads Cylindrical Vibration Motor data 05VZ4SL2B0280001 (old p/n Z4SL2B0280001) Wire Leads Cylindrical Vibration Motor data 06
